Categories | Lithium Ion Cylindrical Battery |
---|---|
Place of Origin: | Shenzhen zhuhai |
Brand Name: | TAC OEM & ODM |
Certification: | MSDS REACH ROHS |

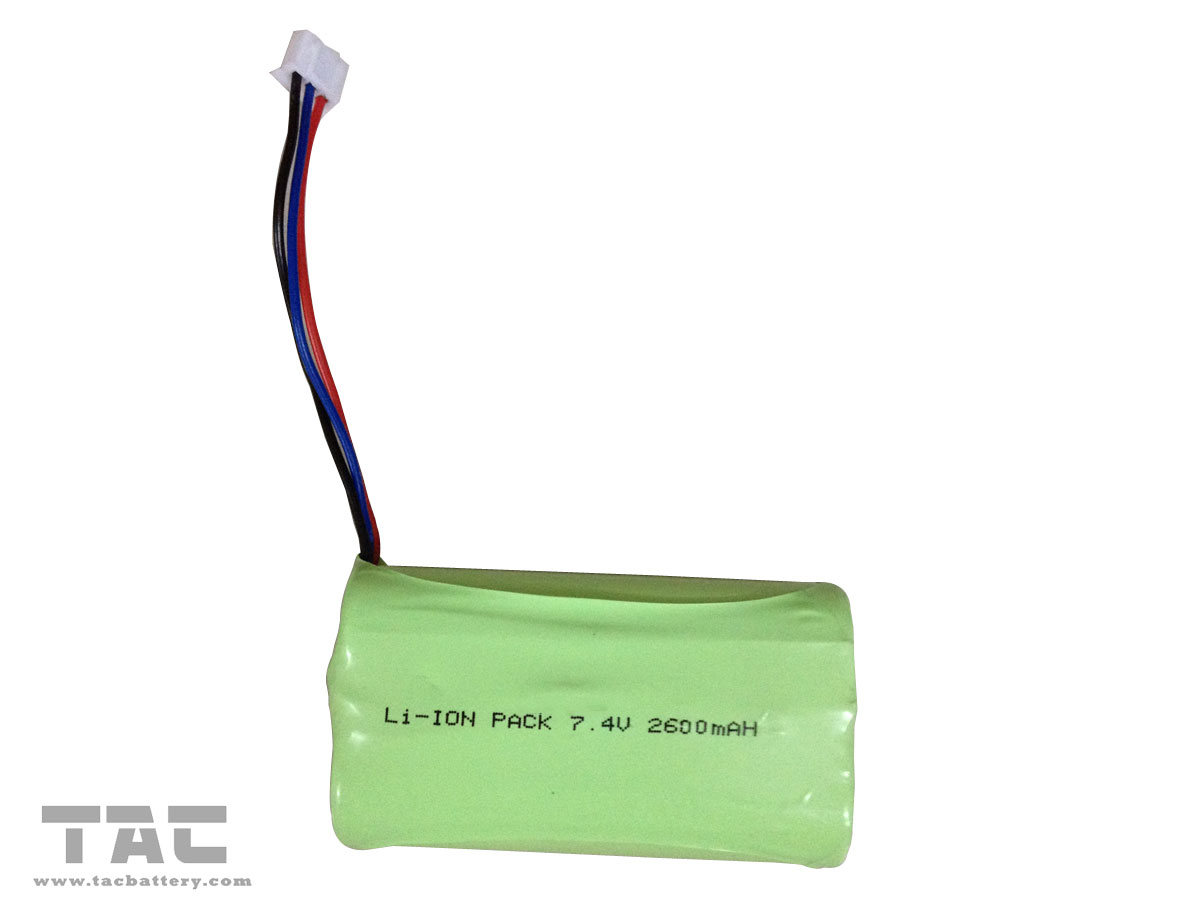

Model Number: | ICR18650 7.4V 2600mAh |
MOQ: | 500 pcs for single cell , 50pack for battery packs |
Price: | usd3.0-5.0 |
Delivery Time: | 7-10 days after order confirm for stock model |
Payment Terms: | 100% prepaid before shipping out |
Supply Ability: | 100000PCS EACH WEEK |

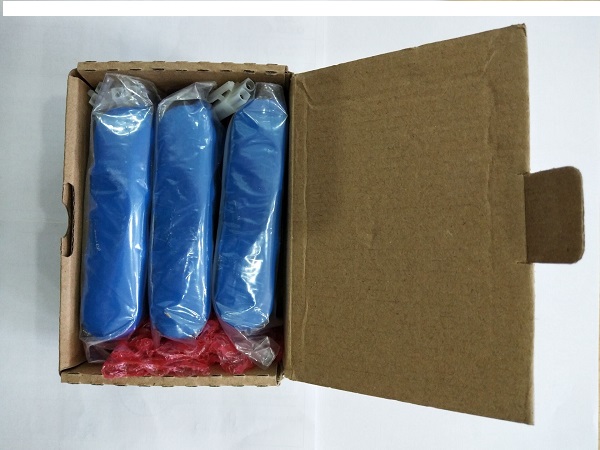

Packaging Details: | meet UN38.3 Certification |
Martieral: | lithium ion |
capacity: | 2600mah |
voltage: | 7.4v |
pvc color: | blue \ green \black or customized |
Brand: | TAC |
Circle life: | 500 times |
warranty: | 1 year |
application: | LED LIGHT |
Wire: | UL1007 24# or customized |
Connector: | customized |
Company Info. |
Guang Zhou Sunland New Energy Technology Co., Ltd. |
Verified Supplier |
View Contact Details |
Product List |
Feature:
No. | Item | General Parameter | Remark | |
1 | Rated Capacity | Typical | 2600mAh | Standard discharge(0.2C5A) after Standard charge |
Minimum | 2550mAh | |||
2 | Nominal Voltage | 7.4V | Mean Operation Voltage | |
3 | Voltage at end of Discharge | 6.0V | Discharge Cut-off Voltage | |
4 | Charging Voltage | 8.4V | ||
5 | Internal Impedance | ≤260mΩ | Internal resistance measured at AC 1KHZ after 50% charge The measure must uses the new batteries that within one week after shipment and cycles less than 5 times | |
6 | Standard charge | Constant Current 0.2C5A Constant Voltage 8.4V 0.01 C5A cut-off | ||
7 | Standard discharge | Constant current 0.2C5A end voltage 6.0V |
![]() |
