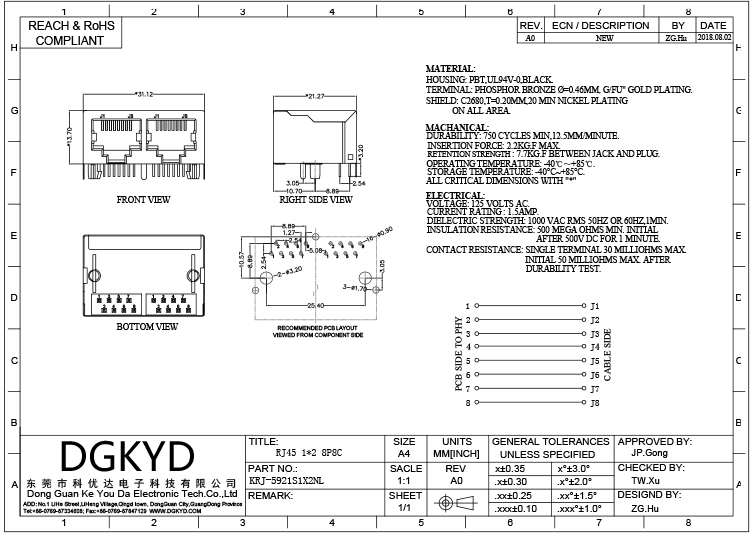

Shield tab down cat 5 dual port ethernet socket RJ45 connector

Tab Down 1x2 Port RJ45 Modular Jack W / O Led 8p8c

Material specifications:

• Plastic core:Glass fiber filler PBT Black(UL94V-0)
• Contact:gold pin0.35mm thick phos bronze plated nickel then with 0.6u’gold
• PCB Terminal:Phosphor bronze ,Tail-Tin over Nickl
• Housing:Phenolic, PBT Black (UL94V-0)
• Metal shell:Copper Alloy ,Tin and Nickel plated

Applications:
• Integrated RJ45 connector main used to :
• 10/100/1000M net card, PCMCIA net card, USB Hub, network switch, router, fiber optic transceivers, optical transceiver, IP phone, internet set-top box,internet camera,net bridge,computer, telecommunication,MODEM,HomePNA, DSL／ADSL and so on.
