P2.5mm Soft Flexible LED Screen Full Color Super Slim And Lightweitht

Categories Flexible LED Display
Material: Aluminum
Weight: 8.2 kg/m²
Processing: 16 bit
Refresh Rate: 1,920 Hz
Servicing: Front
IP Rating: IP 40
Brand Name: Bako Vision
Model Number: BS
Certification: CE,FCC,ROHS
Place of Origin: China
MOQ: 1 m²
Payment Terms: L/C, T/T, Western Union
Supply Ability: 8000 m²/month
Delivery Time: 20 days
Packaging Details: wooden case/flight case
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

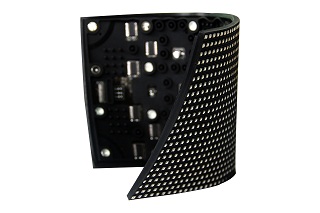

P2.5mm Soft Flexible LED Screen Full Color Super Slim And Lightweitht


P2.5mm Soft Flexible Led Screen Full Color Super Slim Lightweight


BS Soft Rubber LED Series

Flexible Rubber Module, Creative Solutions

Convex, Concave, or Twisted Available Module

For Any Creative Shape and Size, For Unique

Installations

Ultra Thin and Lightweight

Magnetic Connection for Easy Maintenance


Parameter

BS-2BS-3BS-4BS-6
Physical Pitch2.5 mm3 mm4 mm6.66 mm
Pixel ConfigurationSMD 2121SMD 2121SMD 2121SMD 2121
Pixel Density160,000 pixels/m²111,111 pixels/m²62,500 pixels/m²22,545 pixels/m²
Module Dimensions (W× H)(mm)240 × 120240 × 120240 × 120240 × 120
Panel Dimensions (mm)customizedcustomizedcustomizedcustomized
Physical Resolution of Module (W× H)96 × 4880 × 4060 × 3048 × 24
Panel Materialvelvet draperyvelvet draperyvelvet draperyvelvet drapery
Weight8.2 kg/m²8.2 kg/m²8.2 kg/m²8.2 kg/m²
Processing16 bit16 bit16 bit16 bit
Colours281 trillion281 trillion281 trillion281 trillion
Contrast Ratio4,000 : 14,000 : 14,000 : 12,000 : 1
Average Power Consumption9 w10 w10 w10 w
Max Power Consumption12 w13 w13 w13 w
Brightness>1,000nits>1,000nits>1,000nits>1,000nits
Refresh Rate1,920 Hz1,920 Hz1,920 Hz1,920 Hz
Driving Method1/401/408/18/1
Horizontal Viewing Angle160°160°160°160°
Vertical Viewing angle140°140°140°140°
Expected Lifetime100,000 Hrs100,000 Hrs100,000 Hrs100,000 Hrs
ServicingFrontFrontFrontFront
IP Rating (Front/Rear)IP 54IP 54IP 54IP 54
InstallationHangHangHangHang
CertificationCE, FCC, RoHSCE, FCC, RoHSCE, FCC, RoHSCE, FCC, RoHS
Operating Temp/Humidity-20℃- 60℃ / 10% - 90%-20℃- 60℃ / 10% - 90%-20℃- 60℃ / 10% - 90%-20℃- 60℃ / 10% - 90%
Storage Temp/Humidity-40℃-80℃ / 10% - 90%-40℃-80℃ / 10% - 90%-40℃-80℃ / 10% - 90%-40℃-80℃ / 10% - 90%

BS Series

What's your feature?


1. Soft Ribbon Rubber

Durable soft rubber module, anti-static electricity

Soft PCB and rubber material

Integrated SMD, IC, and Circuit for easy maintenance and

heat dissipation

Magnetic connection for easy maintenance

2. Creative and Customized Forms

For any convex, concave, or twisted installations

Customized pixel pitches available for variable installations


3. Slim and Lightweight and Quiet

5mm thickness, space efficiency

0.18kg per module, shipping cost, and installation cost saving

Fanless design



---




COMPANY INTRODUCTION

LED Vision Technology Limited  , started in Shenzhen in 2005, is a world-class manufacturer of technologically advanced LED displays, is SHENZHEN BAKO LTD holds end professional customers in domestic and overseas markets.
Do not hesitate to contact us if you have any inquiries!



FAQ


Q1. Do you provide samples?is it free or extra?

A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.


Q2.How to order?
A: Please send us your purchase order by Email or we can make you a proforma invoice under your request.
We need to know the following information for your order before sending you the PI.
1)Product information-Quantity,Specification(Size,Material,Technological if needed and Packing requirements etc.
2)Delivery time required.
3)Shipping information-Company name, Street address, Phone&Fax number, Destination sea port.
4)Forwarder's contact details if there are any in China.


Q3. Do you offer a guarantee for the products?

A: Yes, we offer a 2-5 years warranty on our products.
