Categories | IPC Embedded |
---|---|
Brand Name: | PLink |
Model Number: | 2016-ONX16G |
Place of Origin: | China |
MOQ: | 1PCS |
Price: | To be discussed |
Payment Terms: | L/C, D/A, D/P, T/T |
Supply Ability: | To be discussed |
Delivery Time: | 15-30 work days |

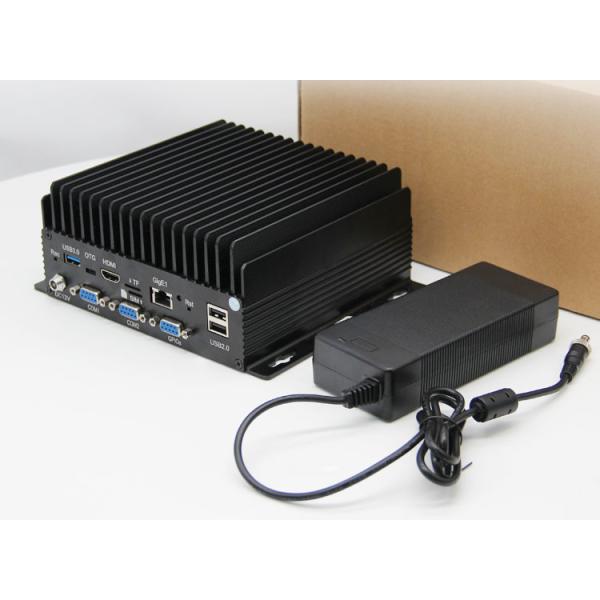

NAME: | UVA V2X Construction Edge IPC Jetson Orin NX 16GB industrial embedded 16GB 100 TOPS |
Keyword: | UVA V2X Construction Edge IPC Jetson Orin NX 16GB industrial embedded 16GB 100 TOPS |
Module: | Jetson Orin NX |
AI Perf: | 100 TOPS |
Size: | 190mm*160mm*76.3mm |
Weight: | 1499g |
Working temperature: | -25~+65°C |
Other I/O: | 3*GPIO;2*RS232;1*CAN;1*GPO |
GPU | 1,024-core NVIDIA Ampere architecture GPU with 32 Tensor Cores |
CPU | 8-core Arm® Cortex®-A78AE v8.2 64-bit CPU 2MB L2 + 4MB L3 |
GPU Max Frequency | 918 MHz |
CPU Max Frequency | 2 GHz |
AI Perf | 100 TOPS |
Memory | 16GB 128-bit LPDDR5 102.4GB/s |
Storage | - (Supports external NVMe) |
Camera | Up to 4 cameras (8 via virtual channels***) 8 lanes MIPI CSI-2 D-PHY 2.1 (up to 20Gbps) |
Video Encode | 1x 4K60 (H.265) 3x 4K30 (H.265) 6x 1080p60 (H.265) 12x 1080p30 (H.265) |
Video Decode | 1x 8K30 (H.265) 2x 4K60 (H.265) 4x 4K30 (H.265) 9x 1080p60 (H.265) 18x 1080p30 (H.265) |
PCIe | 1 x4 + 3 x1 (PCIe Gen4, Root Port, & Endpoint) |
USB | 3x USB 3.2 Gen2 (10 Gbps) 3x USB 2.0 |
Power | 10W - 25W |
![]() |
