100 - 400X Biological LED Microscope Optical System Inverted Trinocular

Categories Inverted Biological Microscope
Model Number: BDS400
Certification: CE,ISO,RoHs
Place of Origin: China
MOQ: 1 pieces
Price: Discuss
Payment Terms: T/T, Western Union
Supply Ability: 500 pieces per month
Delivery Time: 5-20 days
Packaging Details: Well packed in plastic bag and foam, then sealed in strong carton for long distance transportation.
Obeservation tube: Trinocular
Eyepiece: WF10*/ 22
Nosepiece: 5 Holes
Condenser: N.A.0.3
Objective: LPlan 10x/20x/40x,LPL Ph P 20X
Platform: Mechanical stage size:210 *240mm
Lighting system: 5W LED light (input :100V~240V)
Packing size: 660 x590 x330 mm
Gross weight: 17KG
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

100 - 400X Biological LED Microscope Optical System Inverted Trinocular


Inverted Trinocular 100 - 400X Biological LED Microscope Cells Tissue and Culture


►Specification


BDS400 Inverted Biology Microscope


--Two-speed conversion observation tube: 100% observation; 20% observation, while 80% photography

--Soper wide field eyepiece ,view field reach 22mm

--Inclined 45º trinocular seidentopf head with 48-76mm interpupillary distance


►BDS400 inverted biological microscope outfits


HeadInclined 45°,trinocular head , interpupilary distance: 48-76mm
Light split :100: 0 and 80:20
Phase Contrast Annular Spot10×,20×, 40×
OcularWF10×/22mm,high-point
Long working distance infinity objective lensPlan objective: LPlan10 × / 20 × / 40 ×
Plan Phase Contrast objective: LPL Ph P20 ×
Objective nosepieceFive-hole nosepiece
Focusing systemCoaxial coarse unit, fine focusing unit
StageMechanical stage size: 210(X) × 241(Y)mm, round plate diameter: φ110mm
Attachment 96-hole plate mechanical stage moving stroke: 128(X) × 80(Y)mm

Long working distance

condenser

N.A.0.3, quickly removed,

Working distance 72mm with condenser

Working distance 195mm without condenser

Light source5W led light source,adjustment bright
Input voltage100V~240V
FilterBlue
Green

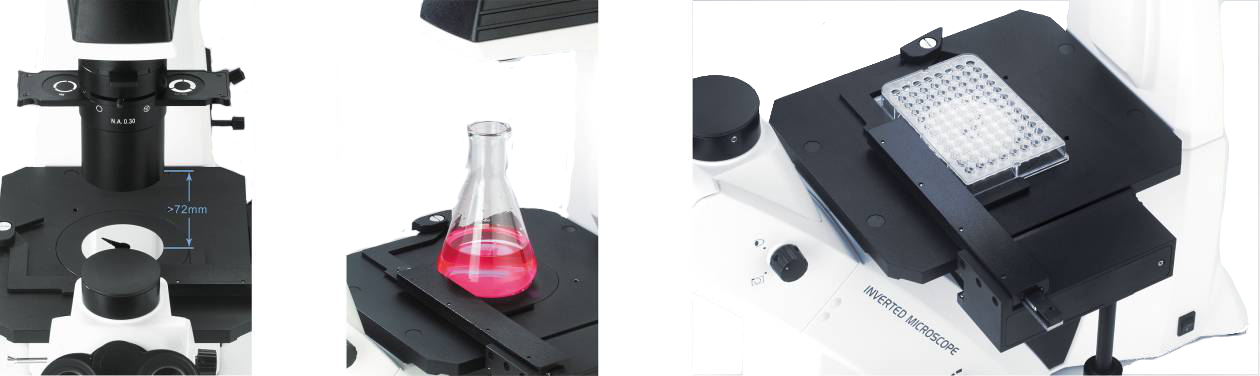

--To meet the needs of scientific research large area workstations. Size: 240mm(X)×210(Y)mm

--N.A.0.3 condenser with long working distance ,can be quickly detached

--Mechanical moving ruler can be quickly and sometimes swap to install, to facilitate the left and right hand different operating habits
