1 VGA 3d Rendering Server Leadtek WinFast GS2040T

Categories Nvidia GPU Server
Brand Name: Leadtek
Model Number: WinFast GS2040T
Place of Origin: China
MOQ: 1
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: To be discussed
Delivery Time: 30-45 work days
NAME: Leadtek WinFast GS2040T For AI Deep Learning 3D Rendering PC Workstation Server
Keyword: Leadtek WinFast GS2040T For AI Deep Learning 3D Rendering PC Workstation Server
CPU: Dual Socket P+ (LGA-4189) 3rd Gen Intel® Xeon® Scalable processors Support CPU TDP 270W Up to 40 Cores
Memory Type: 3200/2933/2666MHz ECC DDR4 RDIMM/LRDIMM
Memory Capacity: 16 DIMM slots Up to 4TB 3DS ECC DDR4-3200MH RDIMM/LRDIMM Supports Intel® Optane™ DCPMM
Chipset: Intel® C621A chipset
SATA: 8 SATA3 (6Gbps) ports
Video: 1 VGA Connector

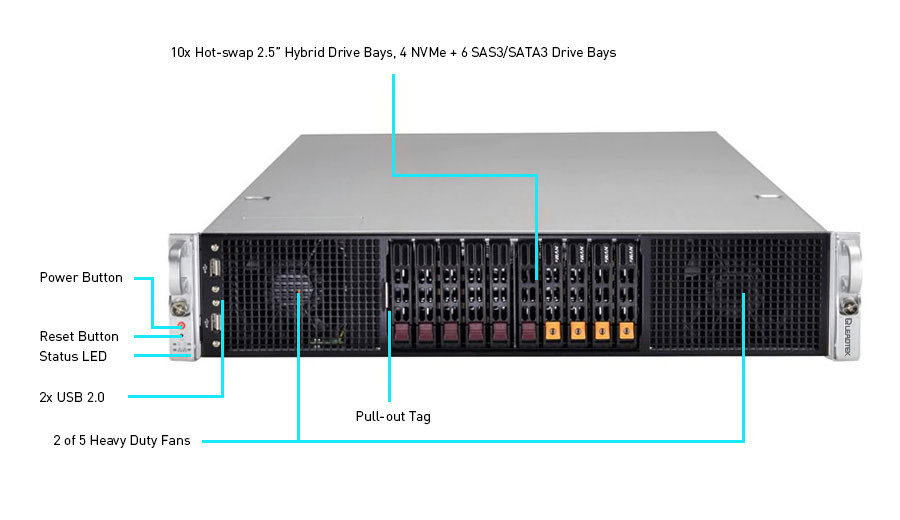

Hot-swap: 10x 2.5" hot-swap NVMe/SATA/SAS drive bays (4x 2.5" NVMe dedicated)
Fans: 5x 8cm Heavy duty fans with optimal fan speed control
Weight: Net Weight: 39.5 lbs (17.9 kg) Gross Weight: 54 lbs (24.5 kg)
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

1 VGA 3d Rendering Server Leadtek WinFast GS2040T

Leadtek WinFast GS2040T PC Workstation Server For AI Deep Learning 3D Rendering

Deep Learning Workstation

WinFast GS2040T

Applications


Manufacturing

Manufacturing

Model, simulate, test, and improve products like never before. With WinFast Workstation manufacturers can design and bring innovative products to market faster.


Media & Entertainment

Media & Entertainment

From pre-vis to post-production, the industry's most critically-acclaimed feature films require the latest technological advancements. WinFast Workstation works behind the scenes giving you the precision and power to tell remarkable stories.
Architecture

Architecture, Engineering and Construction

Workflows in the architecture, engineering, and construction (AEC) space are in transformation. Leading-edge technologies, powered by WinFast Workstation , are enabling AEC teams to optimize design workflows and build for the future.


PCIe 4.0 doubles the data transfer speed over the previous generation

PCIe 4.0 delivers double the I/O performance over PCIe 3.0. You can use 128 lanes of I/O to double the network bandwidth that ties together HPC clusters and satisfies voracious needs for east-west bandwidth. For other application needs and in virtualized environments, you can connect with higher speed to GPU accelerators, NVMe drives.


WinFast GS2040T Specifications


Processor

CPU

Dual Socket P+ (LGA-4189)

3rd Gen Intel® Xeon® Scalable processors

Support CPU TDP 270W

Up to 40 Cores


System Memory

Memory Capacity16 DIMM slots
Up to 4TB 3DS ECC DDR4-3200MH RDIMM/LRDIMM
Supports Intel® Optane™ DCPMM
Memory Type3200/2933/2666MHz ECC DDR4 RDIMM/LRDIMM

Input/Output

SATA8 SATA3 (6Gbps) ports
LAN2 RJ45 10GBase-T LAN ports
1 RJ45 Dedicated IPMI LAN port
USB2 USB 3.0 ports (rear)
2 USB 2.0 ports (front)
Video1 VGA Connector

Dimensions and Weight

Height3.46"(88mm)
Width17.35"(440.7mm)
Depth30.18"(766.8mm)
WeightNet Weight: 39.5 lbs (17.9 kg)
Gross Weight: 54 lbs (24.5 kg)


Power Supply

Power2600W 1U Redundant Power Supplies with PMBus
AC Input2600W: 200-240Vac / 15A Max
DC Input2600W: 200-240Vdc For CQC Only/ 15A Max / 50-60Hz
+12VMax: 216A / Min: 0A (11.4Vdc-12.6Vdc) (12V output)

Operating Environment

RoHSRoHS Compliant
Environmental Spec.

Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F)

Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)

Operating Relative Humidity: 8% to 90% (non-condensing)

Non-operating Relative Humidity: 5% to 95% (non-condensing)
