| Categories | Pipe Bending Machine |
|---|---|
| Brand Name: | Lansin |
| Model Number: | cnc |
| Certification: | ISO |
| Place of Origin: | China |
| MOQ: | 1 set |
| Price: | USD3000~25000/set |
| Payment Terms: | T/T |
| Supply Ability: | 1000sets/Year |
| Delivery Time: | 30days |
| Packaging Details: | wooden case |
| Model NO.: | CNC |
| Name: | Lubricating oil pipe bending machine oil tube bender oil tube tubular bender CNC pipe cold hydraulic bending machine |
| Model: | Ls38 |
| Max Diameter: | 38*2mm |
| Bending Radius: | R200 |
| Motor Power: | 4kw |
| Double Bending Range: | 170-1450mm |
| Max. Bending Angle: | 185degree |
| Accuracy: | High |
| Operation: | Easy |
| Noise: | Low |
| Color: | Customized |
| Weight: | 1200kg |
| Function: | Bending |
| Control Type: | Micro Computer |
| Efficiency: | High |
| Transport Package: | Wooden Case |
| Specification: | 1150*800*600 |
| Trademark: | Lansin |
| Origin: | China |
| HS Code: | 8402111000 |
| After-sales Service: | Yes |
| Type: | Hydraulic Pipe and Tube Bending Machine |
| Automation: | Automatic |
| Applicable Material: | Stainless Steel |
| Applicable Shape: | Round |
| Warranty: | 1 Year |
| Customization: | Available | Customized Request |
Parameter for Lubricating oil pipe bending machine oil tube bender oil tube tubular bender CNC pipe cold hydraulic bending machine
| Model | Unit | YLX-25CNC | YLX-38CNC | YLX-50CNC | YLX-63CNC | YLX-75CNC | YLX-100CNC |
| Pipe/tube diameter | mm | 25 | 38 | 50 | 63 | 75 | 100 |
| Pipe/tube thickness | mm | 1.5 | 2 | 2.5 | 3 | 3 | 5 |
| Solid bar diameter | mm | 25 | 25 | 32 | 38 | 45 | 60 |
| Bending radius | mm | 30-120 | 30-160 | 35-250 | 50-360 | 60-360 | 60-400 |
| Bending angle | ° | 0-180 | 0-180 | 0-180 | 0-180 | 0-180 | 0-180 |
| Turning speed | °/s | 270 | 270 | 270 | 270 | 270 | 270 |
| Hydraulic motor | kw | 3.5 | 4 | 5.5 | 7.5 | 7.5 | 11 |
| Max.pressure | kg/cm | 100 | 120 | 140 | 140 | 140 | 160 |
| Dimension | mm | 2000*500*1300 | 2500*700*1300 | 3000*900*1300 | 3600*900*1350 | 4500*1050 *1350 | 5800*1250 *1350 |
| Weight | kg | 750 | 850 | 950 | 1500 | 3000 | 4500 |
Company introduction
LANSIN MACHINERY is specialized in design and manufacturing pipe
bending machine, pipe cutting machine, pipe end forming machine,
pipe chamfering machine, pipe polishing machine and so on. Our
company has strong design and development capabilities, has
developed the series of CNC pipe bending machine, CNC series of
pipe end forming machine, CNC metal circular saw machine, riveting
machine, CNC gear grinding machine, such as pipe processing
machinery automation. For aviation, heavy engineering machinery,
nuclear power, thermal power, wind power yachts shipbuilding,
automobile parts, motor vehicle chassis, air conditioning and
refrigeration, sports fitness equipment, steel furniture, leisure
travel supplies, plumbing sanitary ware, decorative materials and
other industries of metal products processing provides a complete,
perfect machinery automation equipment. Company can also according
to customer demand design, manufacture special specifications of
unmanned intelligent automation pipe production line, CNC machinery
and equipment and various non-standard automation.
Product description for Lubricating oil pipe bending machine oil tube bender oil tube tubular bender CNC pipe cold hydraulic bending machine
Automatic hydraulic tube bender clamp is used, auxiliary clamping, bend, auxiliary drive and core pulling are hydraulic cylinder and hydraulic valve drive, control precision and stability was improved, with bent pipe power, all of the programming and input are directly conducted on conversational microcontroller, all the information that can be selected automatically, according to the operation and operation is convenient, rapid and accurate.

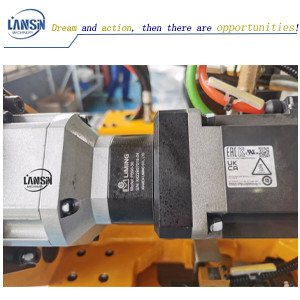

1. Bend-arm (C-axis) by AC servomotor.
2. Clamp die by hydraulic; pressure die by hydraulic.
3. Carriage (Y-axis) by AC servomotor.
4. With rear booster driven by AC servomotor.
5. Collets (B-axis): rotation by AC servomotor, grip by hydraulic.
6. With roll bending function (PUSH BENDING), can make big radius
by rolling.
7. Tooling shift : motion up-down by hydraulic, left-right by AC
servomotor.
8. Automatic moving parts lubrication.
9. Anticipated mandrel retraction unit.
10. Standing pedestal, serves emergency stop and remote control.
11. Industrial PC (windows system) assorted with touch screen
display, 3D preview, remote control (TeamViewer)
12. Optional: 3D bending simulation and collision prevention
13. Optional: auto loading and unloading system.
Technical Parameter for Lubricating oil pipe bending machine oil tube bender oil tube
tubular bender CNC pipe cold hydraulic bending machine

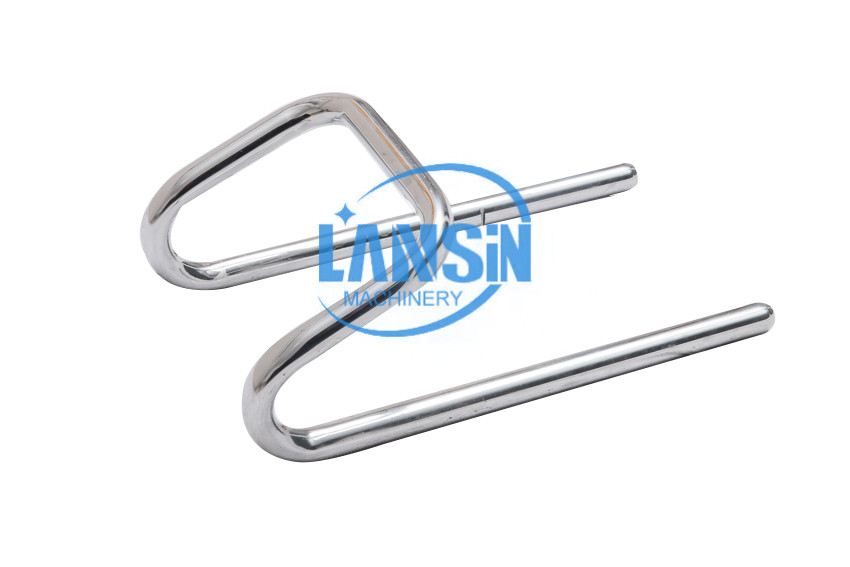

Application for Lubricating oil pipe bending machine oil tube bender oil tube tubular bender CNC pipe cold hydraulic bending machine
|
