Name: | Orange color HDPE dredging pipe float |
Material: | PE and Polyurethane |
Color: | Orange and yellow |
Dimension: | DN90~1200mm |
Installation: | Bolts,nuts and washers |
Warranty: | 12months |
Company Info. |
Shandong Jiubei Trading Co., Ltd |
Verified Supplier |
View Contact Details |
Product List |

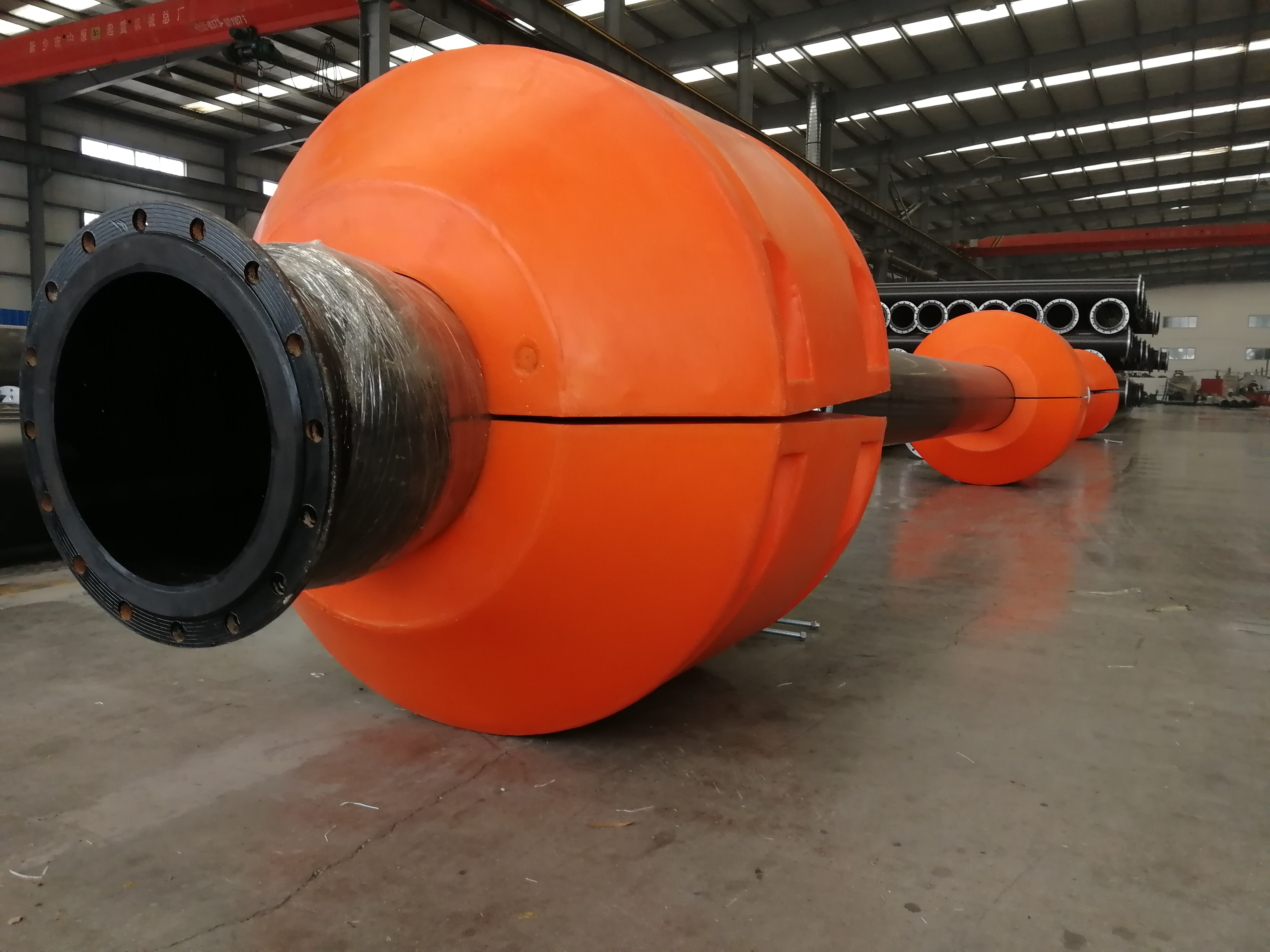

Orange Color HDPE Dredging Pipe Float
The hull of PE floats are rotational molded from PE material, inside filled with high density polyurethane foam(Foam density varied from the pipe float using condition). The PE floats are most widely applied for dredging pipeline, and cable, it is ideal to replace the steel pontoons for the floating discharging pipe.
Dimension of Orange Color HDPE Dredging Pipe Float
Float I.D. (mm) | Float O.D.(mm) | Float Length(mm) | Thickness of Hull(mm) | Floater Buoyancy (kg) |
110 | 500 | 500 | 7 | 98 |
125 | 500 | 800 | 7 | 150 |
160 | 500 | 800 | 7 | 145 |
220 | 600 | 700 | 7 | 180 |
250 | 600 | 700 | 7 | 175 |
280 | 700 | 900 | 7 | 340 |
310 | 900 | 1000 | 8 | 550 |
320 | 1000 | 1000 | 9 | 650 |
350 | 950 | 1000 | 9 | 600 |
390 | 1000 | 1000 | 9 | 600 |
400 | 1100 | 1100 | 9 | 900 |
450 | 1200 | 1200 | 11 | 1100 |
460 | 1300 | 1300 | 12 | 1400 |
495 | 1300 | 1300 | 12 | 1400 |
520 | 1300 | 1450 | 12 | 1500 |
550 | 1300 | 1500 | 12 | 1750 |
560 | 1400 | 1500 | 12 | 1900 |
600 | 1400 | 1600 | 13 | 2100 |
620 | 1450 | 1700 | 13 | 2400 |
670 | 1500 | 1860 | 14 | 2800 |
720 | 1500 | 1860 | 14 | 2800 |
735 | 1500 | 1800 | 14 | 2700 |
760 | 1800 | 2050 | 15 | 3100 |
800 | 1800 | 2160 | 15 | 3300 |
890 | 2000 | 2400 | 15 | 4600 |
940 | 2040 | 2500 | 16 | 4900 |
1040 | 2400 | 2600 | 16 | 7000 |
1140 | 2300 | 2550 | 16 | 7000 |
![]() |
