2 Channel Relay Output QR Code Barcode Scanner 9-18VDC Power Input CE ROHS Approval

Features:

1. Embedded multitasking real-time operating system, the system can be fully

activated with 3 seconds.
2. Single-door access control + 2d code scanner engine + the second generation

ID card reader three in one card products. Make site installation and maintenance

become simple with lower cost.
3. The product has Wiegand 26/ 34 output, when the product is used as a 2d code

reader, which can make the traditional access control, lift control, yard products,

own the 2d code access function immediately without changing the main controller.

And can access legally when it must comply with the rules of the 2d code so that the

traditional access control, lift control and yard products have a real CPU system security

level at once and reduce system costs greatly.
4. The product has 2-channel relay output, in addition to 1 channel to control the door lock,

other 1 channel to control the door opener, lights, players, valves and so on.
5. The product has voice amplifier and speakers whose commonly used access incidents

can be set, the network control play nearly 150 voices that can be customized.
6. Meet the agreed rules of the encrypted 2d code, in the case of no network, you can open

the door or barrier directly.
7. Common parameters such as network IP parameters, lock delay, Wiegand 26/34, etc.,

can be set directly through the 2d code to make on-site debugging easier.
8. Equipment capacity: card 35,000 pieces, record 50,000 pieces, 2d code times 100,000,

records and 2d code times are automatically looped over capacity.
9. The product uses the battery-free clock to maintain the circuit, eliminating the need to

replace the battery regularly as well as express delivery troubles without batteries.
10. The product uses the data memory and the ferroelectric memory, even if the device

suddenly power-down, it will not lose the stored data to ensure data safe and reliable.

Input and Output Parameters:

1. Power Input: 9-18VDC

2. Working Current: < 600mA

3. Can read like ISO14443Aor ISO14443B card serial number.

Such as second-generation ID card, FM1208 CPU card, M1 card (Mifare S50, Mifare

S70 IC card), SRIX4K, etc.

4. Barcode or 2D code input.

5. Wiegand 26/ 34 output, output IC card number (common read head function) and

associated card number output in compliance with QR code reservation rules.

6. Communication Interface: RJ45 10/100M TCP/IP, Extensible Wireless WIFI,

Bluetooth

7. Communication Protocol: Support TCP / UDP / HTTP

8. Voice output: comes with voice, amplifier and speaker output, nearly 150 kinds of

voice output, customizable voice

9. Device input: 12V DC power input, 1 line gate input, 1 line exit button input, 1 line

alarm input

10. Equipment output: 2 way 250V/5A relay output, 1 way unlock, 1 way expansion

can control door opener, light, water valve, etc.

11. Wiegand output: Wiegand 26/34 output.

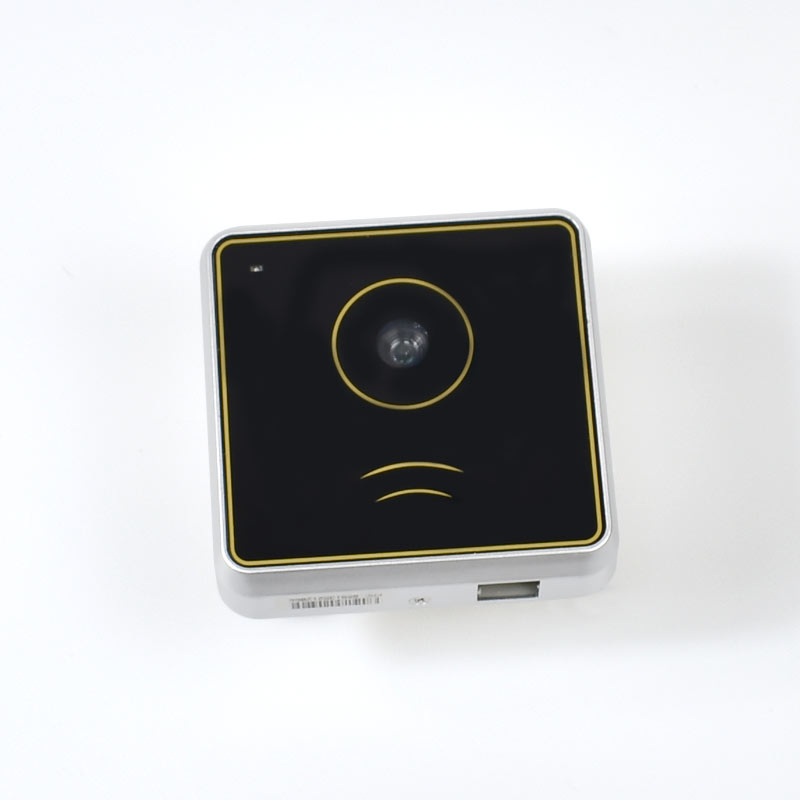

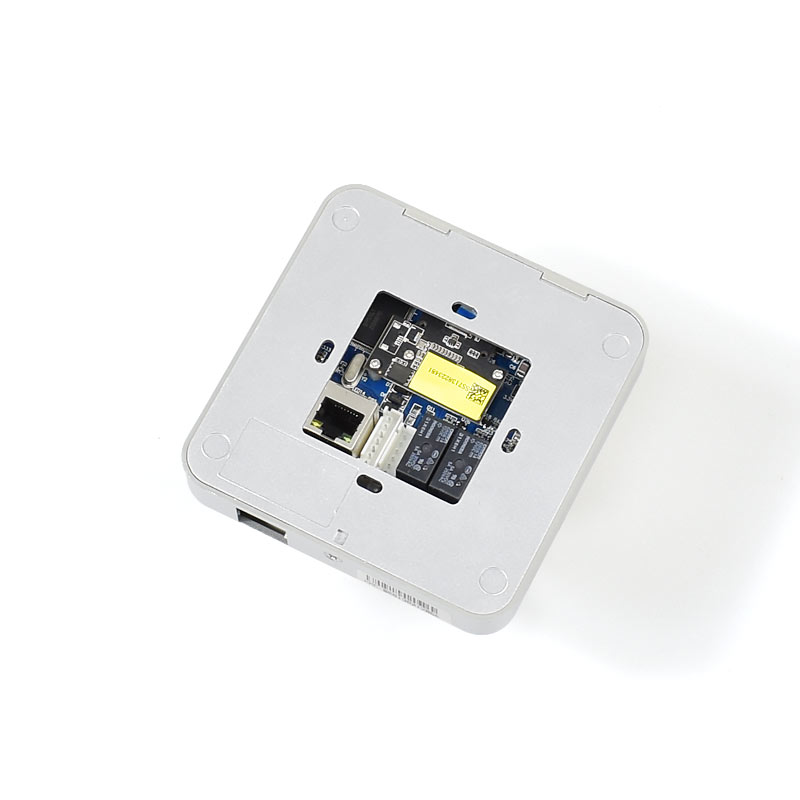

Product Pictures:

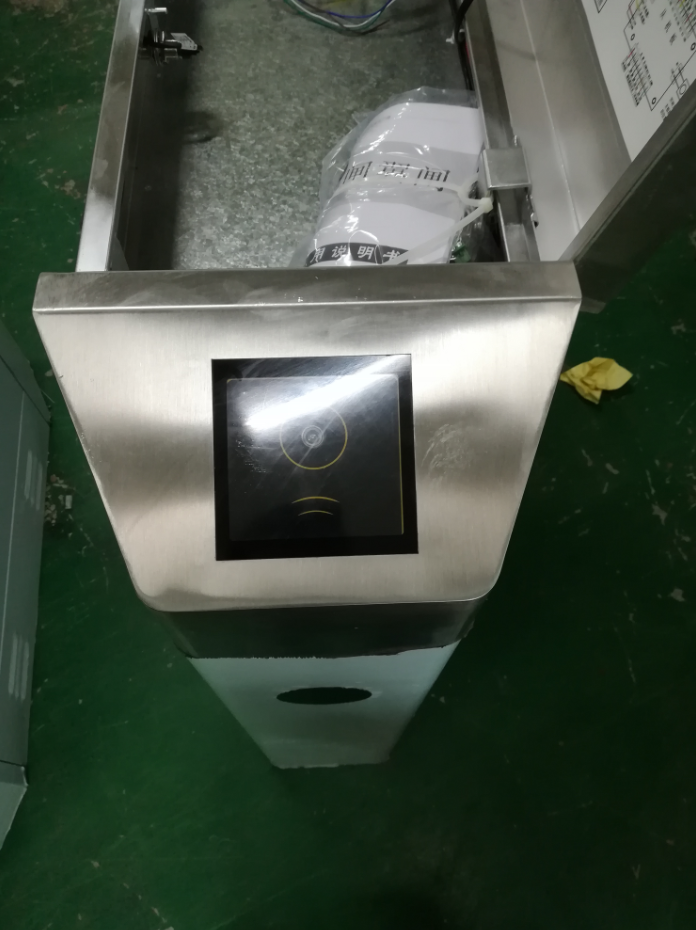

Application:
