B-SST-200 Salt Spray Test Machine with ASTM.B117-97, JIS H8502, IEC68-2-11 Standards

B-SST-200 Salt Spray Test Machine with ASTM.B117-97, JIS H8502, IEC68-2-11 Standards

Description:

The salt spray test chamber is a climate simulation device that tests the corrosion of electronic equipment, metallic material, as well as some surface treatment--coating, galvanizing, organic/inorganic coating, anodizing treatment, rust-proof oil coating, etc. Performance indicators in line with requirements of GB / T5170.8 Electrical and Electronic Products, Environmental Testing Equipment, the Basic Parameters of the Test Method. The salt spray corrosion test chamber according to GB / T2423.17 Electronic and Electrical Products Basic Environmental Test Procedures Test: Salt Spray Test Method for neutral salt spray test can also be used for acetic acid salt test.

Corresponding standard :

1.GB/T 2423.17-1993 salt spray test

2.GB/T 2423.18-2000 salt spray test

3.GB/T 10125-1997 salt spray test

4.ASTM.B117-97 salt spray test

5.JIS H8502 salt spray test

6.IEC68-2-11 salt spray test

7.IEC68-2-52 1996 salt spray test

8.GB.10587-89 salt spray test

9.CNS.4158 salt spray test

10.CNS.4159 CASS Accelerated acetic acid copper salt spray test

11..GB/T 12967.3-91 CASS Accelerated acetic acid copper salt spray test

Detailed configurations as follows:

1, according to CNS JIS ASTM GB2423.19 specifications, can be set constant temperature to control

(A) Salt spray test: NSS, ACSS

1. testing room : 35 ℃ ± 1 ℃

2 saturated air barrels : 47 ℃ ± 1 ℃

(B) anti-corrosion test: CASS (copper acetate)

1.testing room: 50 ℃ ± 1 ℃

2 saturated air barrels: 63 ℃ ± 1 ℃

2, air supply system: air pressure 1Kg/cm2 Two-stage adjustments (coarse / fine-tuning).

(A) the first paragraph for the rough adjustment 2-2.5Kg/cm2, the second paragraph to fine-tune 1Kg/cm2.

(B) Testing configuration is switch connector designed for SO2.

3, spray form:

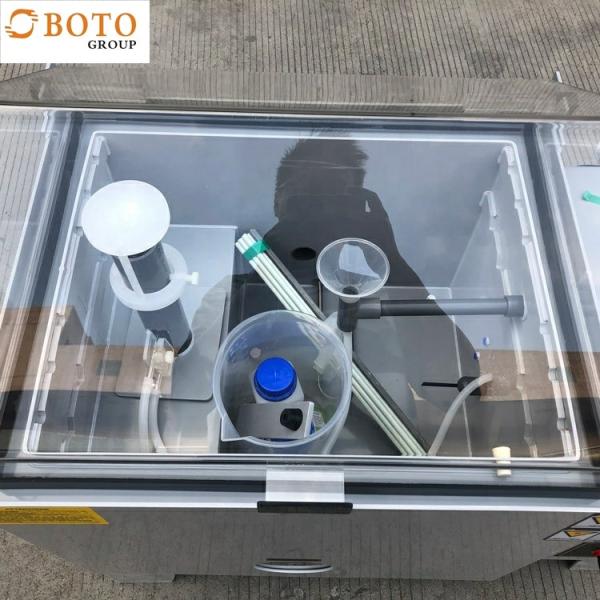

(A) Using Bo Nute principle to draw brine and then saline spray, atomization uniform, non-blocking and crystallization, so that ensure continuous spraying.

(B) Nozzle: The nozzle is made of special glass, adjust spray volume and spray angle.

(C) spray volume: Adjustable 1 ~ 2ml (80cm2/hr) (average of 16-hour volume).

Model		B-SST-60	B-SST-90	B-SST-120	B-SST-160	B-SST-200
Internal Dim(W*H*D)		60x45x40	90x60x50	120x100x50	160x100x50	200x100x50
External Dim(W*H*D)		108x63x119	140x80x139	178x120x149	230x130x149	270x130x159
Cabinet Material		Corrosion-resistant polymer material
Laboratory temperature (℃)		A:25℃~70℃ B:0℃-70℃ C:-20℃-70℃ D:-40℃-70℃
Saturated air barrel temperature(℃)		35±1℃50±1℃ Saline test method:35±1℃/Corrosion test method:50±1℃
Saturated air pressure (kg/c㎡)		0.8-2.0±0.01
(ml／80c㎡.h) Salt spray sedimentation rate (ml/80c㎡.h)		1-2ml/80 cm2.h(Controllable)
PH value		Salt water test method:6.5～7.2／Test method for corrosion resistance:3.0-3.2 Saline test method:6.5-7.2/Corrosion test method:3.0-3.2
Power Source		AC:220V 50Hz/AC:380V 60Hz
