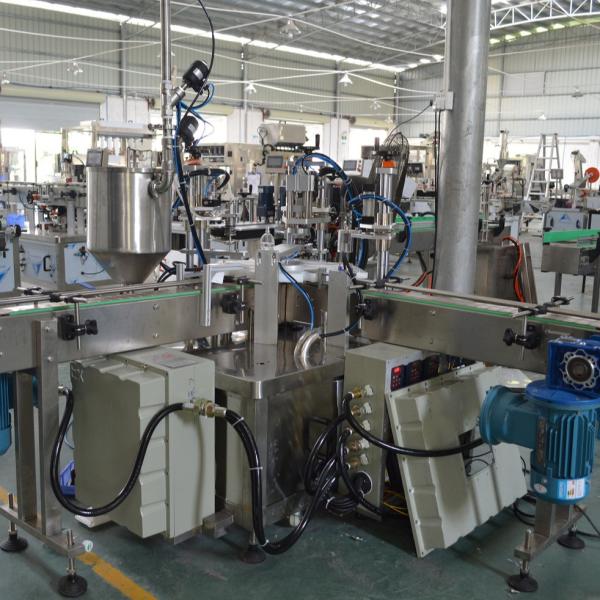

Automatic Liquid Filling Machine for Commodity Glass Bottle Capping and Filling Line

Categories	Filling Production Line
Condition:	New
Type:	Filling Machine
Machinery Capacity:	1000BPH
Applicable Industries:	Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Home Use, Retail, Printing Shops, Construction works , Advertising Company
Showroom Location:	None
Application:	Beverage, Chemical, Commodity, Medical
Packaging Type:	Bottles
Packaging Material:	Glass
Automatic Grade:	Automatic
Driven Type:	Mechanical
Voltage:	220/380V 50-60HZ
Place of Origin:	Guangdong, China
Brand Name:	GH
Warranty:	1 Year
Key Selling Points:	Flexible Manufacturing
Filling Material:	Liquid
Filling Accuracy:	1%
Machinery Test Report:	Provided
Video outgoing-inspection:	Provided
Warranty of core components:	1 Year
Core Components:	Motor, Pressure vessel, Pump, PLC
After-sales Service Provided:	Engineers available to service machinery overseas, Online support, Video technical support
Brand:	Guanhong
Material:	Stainless Steel 304
Function:	Filling capping
Bottle type:	PET Plastic Glass Bottle
Processing Types:	Automatic Bottle Filling Sealing Machine
Control:	PLC+ Touch Screen
Filling speed:	1000 BPH
Power:	0.6KW
Filling volume:	20ml (can be customized)
After Warranty Service:	Video technical support, Online support
Local Service Location:	None
Marketing Type:	Ordinary Product
Certification:	GMP
Packaging Details:	wooden packing
Port:	Guangzhou HuanPu
Supply Ability:	20 Set/Sets per Month
Price:	$20,800.00/sets >=1 sets
MOQ:	1 set

Contact Now

Add to Cart

Company Info.

Guangzhou Guanhong Machinery Equipment Co., Ltd.

Verified Supplier

Haven't found right suppliers
Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
And this service is free of charge.
we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!

Submit Buying Request

Automatic perfume filling capping machine line

Technical Parameters:

(1) Number of filling heads:1 (using negative pressure filling)

(2) Number of caps: 1(pump head cover)

(3) Number of gland heads: 1(outer cover)

(4) Suitable for bottle type: according to customer sample(20ml bottle, cover and cap)

(5) Filling capacity: 20ml

(6) Filling form: negative pressure filling

(7) Lower cover form: manual cover

(8) Cover form: pneumatic cover

(9) gland form: pneumatic gland

(10) Production speed: 800-1000bottles / hour

(11) Filling accuracy: ±1mm (equal level)

(12) Into the bottle, out of the bottle conveyor belt: 82mm wide POM chain belt, speed 0-15 m / min,

(13) Machine power: about 0.6KW

(14) Program control: PLC with touch screen man-machine interface

(15) Material: The frame is made of stainless steel

(16) Filling mouth and other parts in contact with liquid: 304# stainless steel

(17) Filling hose: silicone hose

(18) Air pressure: 0.6-0.8MPa

(19) Power supply: AC380V, 50/60HZ three-phase.
