Powerful CNC Sheet Metal Bender CN Steel Bending Machine 18 Axis

Name: Powerful CNC Sheet Metal Bender CN Steel Bending Machine 18 Axis
Brand: MAZS
Price: 1 USD

Powerful CNC Sheet Metal Bender CN Steel Bending Machine 18 Axis

Categories	CNC Bending Machine
Brand Name:	MAZS
Model Number:	MAY-**18
Place of Origin:	China
Certification:	CE, ISO
Packaging Details:	wooden case, polystyrene foam and other protective materials suitable for sea transportation
Delivery Time:	60 days to 120 days
Payment Terms:	T/T or L/C
Supply Ability:	50 to 60 sets per month
MOQ:	1 Set
Price:	RMB/USD/EURO
Product name:	CNC bending machine
Panel type:	steel, aluminum, carbon steel plate, etc.
Axis qty.:	standard synchronized 18 axis
Feeding mode:	pressing arm
Four edge minimum inner size:	140*190MM
Double sides forming minimum inner size:	140mm
Max. working speed:	0.2 second/time
Power hinge knife:	standard

Contact Now

Add to Cart

Company Info.

Wuxi MAZS Machinery Science and Technology Co.,Ltd.

View Contact Details

Product List

Haven't found right suppliers
Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
And this service is free of charge.
we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!

Submit Buying Request

Product Details
Company Profile

Powerful CNC Sheet Metal Bender CN Steel Bending Machine 18 Axis

Powerful CNC Bending Machine For Precision Work With Standard Synchronized 18 Axis

Product Description:

CNC Bending Machine

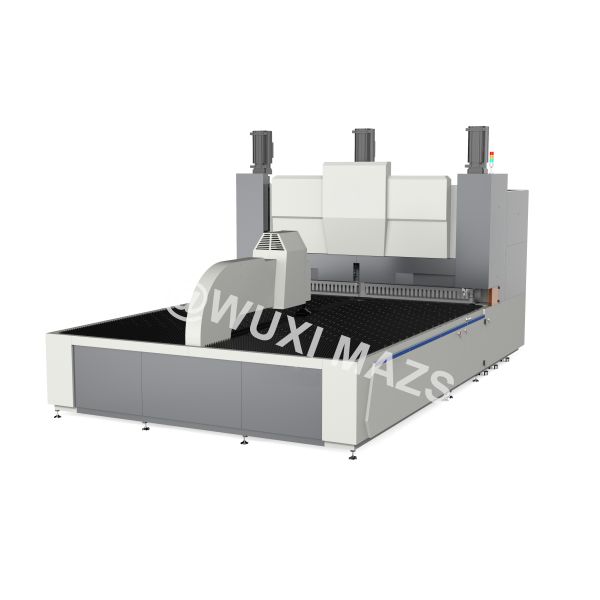

The MAY-**18 series is an intelligent flexible bending center that adopts the pressing arm feeding method. Strengthened with three axises and three motors, the whole machine is designed and produced according to the standard of high-precision machine tools. lt is suitable for mesh, corrugated, hollow and various flat or special shaped work pieces. The deflection compensation can be adjusted by CNC control, the thickness of the bending panel is increased, and the comprehensive bending speed is higher. lt applied fast release and fast installation type upper press tooling.

Features:

- Deflection compensation adjustable, panel thickness increased;

- Thick panel bending accuracy increased;

- Fast release and fast installation upper pressing tools;

- Standard power hinge knife.

Technical Parameters:

Items	Parameters for MAY-2518 Panel Bending Center
Feeding method	Pressing arm
Positioning method	Y axis double lift automatic positioning tools
Max. bending speed	0.2 s/time
Max. bending width	2500mm
Max. bending height	170mm
Rated voltage	380V
Total motor power	244Kw
Average power	about 5.8Kw
Noise	50dB
Machine size	629300345cm
Total machine weight	about 19t
Max. bending thickness (thicker panel customized)	UST 515N/mm2 304 stainless steel 1.5mm
	UST 410N/mm2 cold panel 2.0mm
	UST 265N/mm2 aluminum panel 3.0mm
Minimum panel thickness	0.35mm
Four sides forming minimum inner size	140*190mm
Double sides forming minimum inner size	140mm
Max. bending size	2500*1500mm
Axis qty.	standard synchronized 18 axis
Power hinge knife	standard

Applications:

MAZS metal sheet bender can be widely applied in following industried:

√ Cabinet: file cabinet, tool cabinet, outer guard cover, electrical cabinet, communication cabinet, gas cabinet, water meter cabinet...

√ Kitchenware: refrigerator, air conditioning, stove...

√ Furniture

√ Electrical cabinets

√ Decorations

Support and Services:

Technical Support and Service for CNC Bending Machine

We are dedicated to providing comprehensive and reliable technical support and service for CNC Bending Machine. Our experienced engineers and technicians are available to provide customized solutions according to your specific needs. We provide the following services:

- On-site installation and commissioning

- Regular maintenance

- Repair and troubleshooting

- Technical advice and consultation

- Spare parts supply

We offer our services in a timely and cost-effective manner, ensuring that your CNC Bending Machine is always running at peak performance. Contact us today for more information.

Packing and Shipping:

- Packaging and Shipping for Metal Sheet Bending Machine:

- Packaged in a wooden crate, which is filled with polystyrene foam to provide extra protection during shipping.

FAQ:

Q1: What is the brand name of the CNC Bending Machine?

A1: The brand name of the CNC Bending Machine is MAZS.

Q2: What is the model number of the CNC Bending Machine?

A2: The model number of the CNC Bending Machine is MAY-**18.

Q3: Where is the CNC Bending Machine from?

A3: The CNC Bending Machine is from China.

Q4: What is the packaging of the CNC Bending Machine?

A4: The packaging of the CNC Bending Machine is wooden case, polystyrene foam and other protective materials suitable for sea transportation.

Q5: What is the delivery time of the CNC Bending Machine?

A5: The delivery time of the CNC Bending Machine is 60 days to 120 days.
