Categories | Industrial LCD Monitor |
---|---|
Brand Name: | ITD/OEM |
Model Number: | ITD101KITT5xxxx |
Certification: | CE, FCC, RoHS |
Place of Origin: | China |
MOQ: | 1PCS |
Price: | TBA |
Payment Terms: | T/T, Western Union, Paypal |
Supply Ability: | 10000PCS/Month |
Delivery Time: | 5-7 Business Days |
Packaging Details: | 1-5pcs/CTN, Safe, Firm |
Screen Diagonal (Inch): | 10.1" |
Display Active Screen Size: | 216.96(W)X135.6(H) mm |
Aspect ratio: | 16:10 |
Resolution: | 1280x800 (1920×1200 optional) |
brightness: | 350 cd/m2 (1000 cd/m2 optional) |
Contrast Ratio: | 800:1 |
View Angels: | 85/85/85/85 |
touch panel: | Projected Capacitive Touch |
Company Info. |
Shenzhen ITD Display Equipment Co., Ltd. |
Verified Supplier |
View Contact Details |
Product List |
10.1" lcd touch screen kits TFT-LCD pcap multi touch screen with USB interface
SPECIFICATIONS of 17.3" 10.1" lcd touch screen kits
10.1 inch LCD Touchscreen Kit | |
Model Name | ITD101KITT5xxxx |
IP Rating | Front IP65 |
LCD Pane | |
Screen Diagonal (Inch) | 10.1” |
Display Active Screen Size (mm) | 216.96(W)×135.6(H) |
Aspect Ratio | 16:10 |
Physical Resolution | 1280×800 (1920×1200 optional) |
Maximum Resolution Supported | 1920×1200 |
Colors | 16.7M |
Brightness (cd/m2) | 350 cd/m2 (1000 cd/m2 optional) |
Response Time | 25ms |
Contrast Ratio | 800:1 |
View Angels | 85/85/85/85 |
Backlight/Backlight Lifetime | LED Backlight with 30000Hours’Lifetime |
Touch Panel | |
Touch Technology | Projected Capacitive Touch |
Touch Drivers | Windows, Linux, Android, Mac, Raspberry Pi |
Touch Life | 50,000,000times/click |
Surface Hardness | 7H |
Surface Treatment | Anti-Glare, Anti-Reflective, Anti-Finger optional |
Glass Strengthening | Chemically Strengthened |
AD Board(optional) | |
Video Input | 1 × VGA |
1 × DVI-I | |
1 × HDMI | |
Audio | 1 × PC-Audio |
Touch Connector | 1 × USB |
Power Connector | 1 × DC2.0 |
Operation | |
Operating Temperature Range | -20~70°C |
Humidity Range (RH) | 10-90% |
24/7/365 Use | Supported |
Power | |
Power Input | DC 12V, DC9~36V input optional |
Power Consumption | 8W |

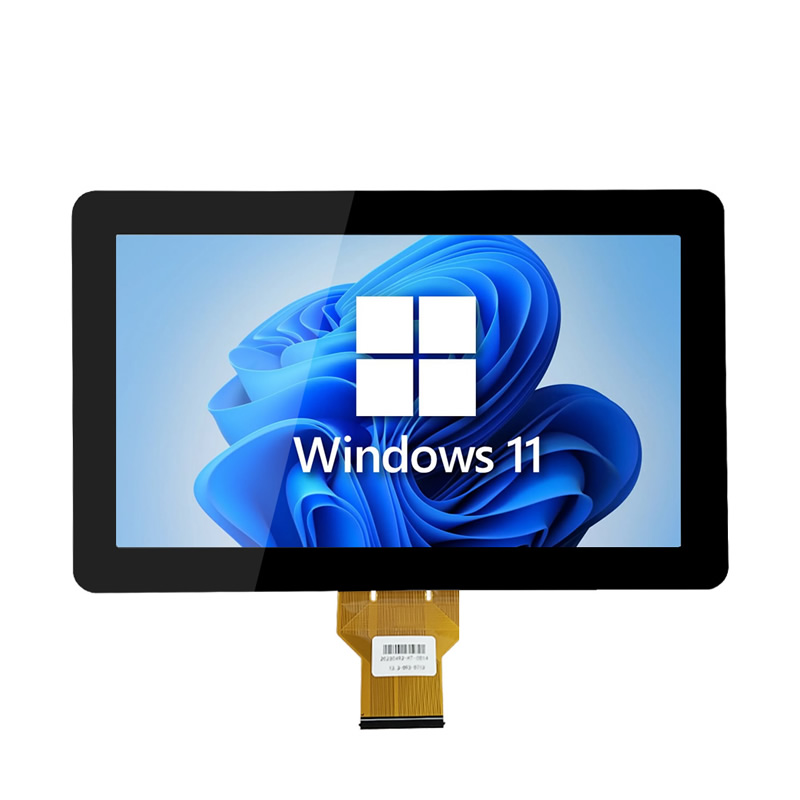

Product image:
![]() |
