Interactive Bar Stretched Bar Monitor Lcd Screen Panel Capacitive Touch Screen Multi Language Support

Categories Stretched bar LCD display
Brand Name: Ultra wide stretched LCD displays
Model Number: ZX-UB584
Place of Origin: China
Certification: CE, ROHS, FCC, CCC
MOQ: 1 Piece
Price: $315.00 - $780.00/pieces
Packaging Details: Packed in carton+wooden boxes
Delivery Time: 3-10 working days
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 4000 Piece/Pieces per Month
Shelf Resolution: 1920 x 540P
Display Dimension: 1152 x 324 mm(H*V)
Touch Screen Type: Non touch/Capacitive Screen
Interface: HDMI, VGA, DVI, USB
Brightness: 350-700 Nits
Operating Voltage: AC 100V - 240V
Life Expectance: 60000 Hours
View Angle: 89/89/89/89(Min)
Remote Control: With Remote Control
Operating Temperature: 0-50°C
Installation: Wall Mount / Hanging
Ethernet: 10M/100M Ethernet
Hard Drive Capacity: 4GB,8GB,16GB,32GB
Working Time: 24/7
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Interactive Bar Stretched Bar Monitor Lcd Screen Panel Capacitive Touch Screen Multi Language Support

Product Description:

Aspect Ratio:The defining feature of a bar LCD screen is its ultra-wide aspect ratio. This aspect ratio typically ranges from 16:3 to 32:9 or even wider. The result is a long, slender display format that is well-suited for showcasing content in unconventional layouts.


Brightness and Contrast: High brightness levels and contrast ratios to ensure excellent visibility even in brightly lit environments. This makes them highly suitable for a wide range of applications, including outdoor signage, retail displays, and other scenarios where ambient lighting conditions vary.

Custom Sizes: we offer our customers the flexibility to specify the exact dimensions of their display to fit their specific needs.


Whether you require large-scale retail signage, transportation displays, or industrial applications, we can custom-design displays to fit your requirements. Our displays can be made to any size, ensuring that you receive a solution that provides the best performance and visual appeal.

Technical Parameters:

Panel Parameter
Screen size23.1 inch35.5 inch47.1 inch49.5 inch
Screen typeTFT LCD Screen with LED back light
Resolution FHD (16:9)1920 x 158P1920 x 372P1920 x 540P1920 x 1080P
Brightness350cd/m2350cd/m2450cd/m2450cd/m2
Display Area(H/V)mm585.6 x 48.19885 x 1721152 x 3241209.6x340.2
Frame Size(H/V)mm587.4x60.4x16921x 205.7x431192x364x401241.6x372.2x50
Contrast Ratio4000 : 14000 : 14000 : 144000 : 1
Display Colour16:7M(8bit)
View Angle (H/V)178°/178°
Response Time6ms
Life Time60000 Hrs
Operation systemAndroid OS 7 to 11Windows OS (WIN 7 to 10)
CPU ProcessorDual-core/Quad-core/Octa-core (optional)Intel core i3 /i5 /i7
Memory1GB /2GB/4GB/8GB (optional)DDR3 4GB to Max 32 GB
Buit-in Storage8GB/16GB/32GB (optional)SSD 128GB to 512 GB Max
Wifi / 4G / LanYesYes
PortRJ45, USB,HDMI Output, TF/SD card soltRJ45, USB,HDMI /VGA output, DC-IN, LIN-OUT, MIC-IN
OTHERS
Frame materialMetal case(SPCC)
Colored SystemPAL/NTSC/Auto-detecting
Speakers2×5W
Voltage100V-240V AC , 50/60Hz
Storage Temperature'-20°C - 60°C
Storage Humidity10% - 95% no condensation

Applications:

Connectivity: With several connectivity options that include HDMI, DisplayPort, VGA, These connectivity options provide users with a wide range of choices to connect their devices seamlessly with the stretched display. With this capability, users can experience seamless connectivity without having to switch from one screen to another.


Mounting Options: Stretched bar LCD screens are versatile in their orientations and can be mounted in both landscape and portrait modes, depending on the specific requirements of the application. This versatility allows users to install these displays in a way that complements their content, resulting in excellent user experience.

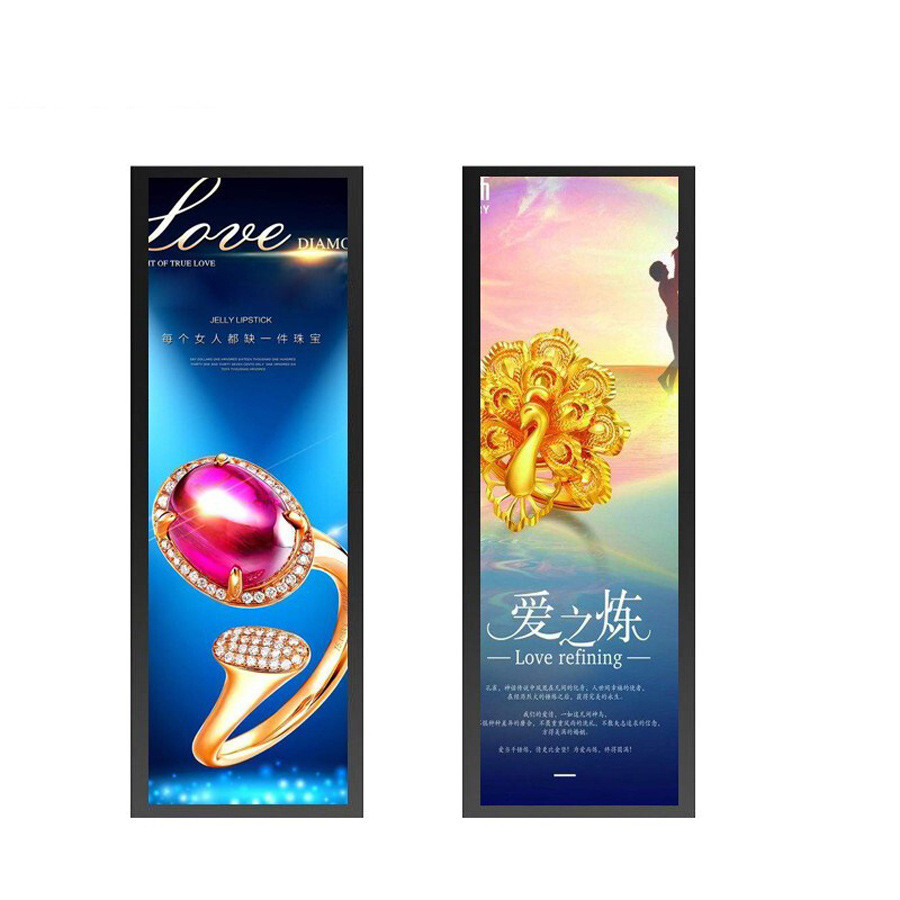

Picture Details:

FAQ:

Q: What kind of inspection you can provide?
A: Zhongxin has multiple tests from material purchasing to finished products by different departments, like QA, QC, sales
representative, to guarantee all signage players are in perfect condition before shipment. We also accept the inspection by the third party you appointed.


Q: What is your guarantee period?
A: Zhongxin provides 1 (one) year quality guarantee for the products from your purchase date, except the human damage and force majeure factor. For a better maintenance, be sure that the players are using under normal circumstances (not more than 16 hours daily).
Beyond the guarantee period machine, Zhongxin will provide maintenance service and technical support (Hardware and other possible charges, we will not bear the responsibility)


Q: How can I pay for the order?
A: Our payment terms: T/T, Western Union, Paypal.
1) For sample order: 100% T/T or Western Union in advance, Paypal is also acceptable.
2) For bulk order: T/T (Bank Transfer), 30% down payment, 70% balance should be paid before the delivery of the goods.
