| Categories | 2D Scan Engine |
|---|---|
| Brand Name: | Dingyu/ DY SCAN |
| Model Number: | DE2120 |
| Certification: | CE, ROHS, FCC, IEC, FDA |
| Place of Origin: | China |
| MOQ: | 1 |
| Price: | Negotiate |
| Payment Terms: | T/T, Paypal, Alibaba |
| Supply Ability: | 10000pcs/month |
| Delivery Time: | 3-7 days |
| Packaging Details: | Paper box |
| Scan type: | CMOS |
| Light Source: | Red Light LED 625±10nm（aim), 5600K LEDs（ Lighting) |
| CPU: | 32-bit |
| Resolution: | 680*480 |
| Reading precision: | ≥4mil/0.1mm(PCS90%,Code 39) |
| Decoding speed: | 25cm/s |
| Depth of field: | 25-400mm |
| Scan Mode: | Manual ,Continuous, Auto Sense, Command trigger |
| Scan angle: | Test Conditions：CODE39,10mil/0.25mm,PCS90%,Pitch:±65°,Roll: ±360°,Skew: ±60° |
| Dimension: | L 21.2 * W 15.3* H 11.6mm |
| Weight: | 6g |
| Communication: | USB(USB-KBW、USB-COM）,TTL |
| Interface Type: | FFC 12PIN Pitch 0.5 |
| Power Supply: | DC 3.3V@190mA work |
| Company Info. |
| Shenzhen DYscan Technology Co., Ltd |
| Verified Supplier |
| View Contact Details |
| Product List |

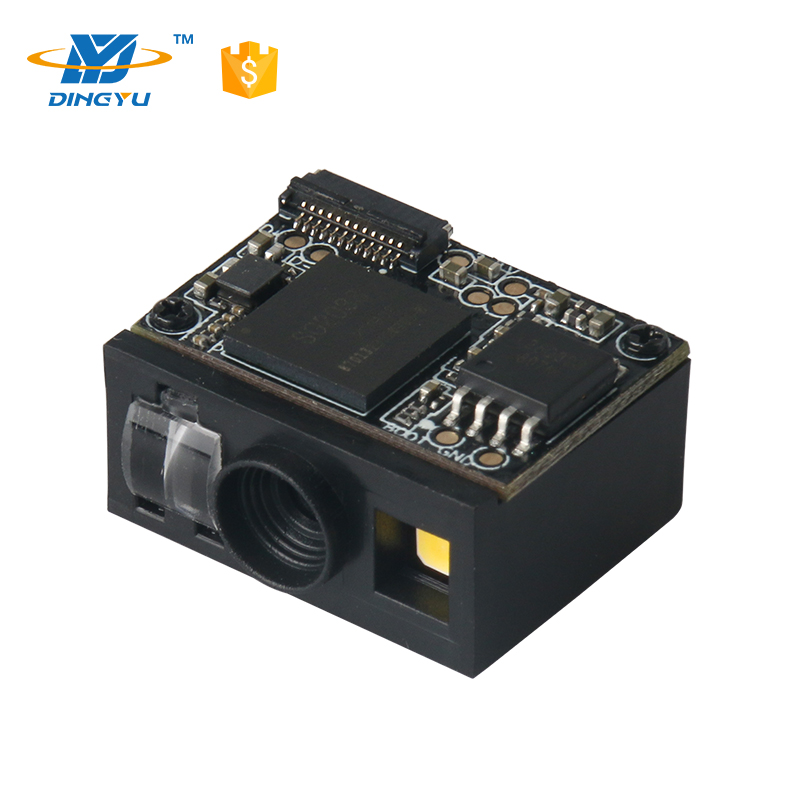

Embedded 1D 2D CMOS Barcode Scanner Module with RS232/USB Interface DE2120
DE2120 Barcode Module Features:
☆ Mini size, widely used in wireless machine, self-service terminal.
☆ Read all mainstream 1D 2D barcodes in the market easily. (4mil)
☆ Support USB barcode information transmission. ( languages customization)
☆ High brightness, dark environment scanning, low power consumption.
☆ Interface: USB, TTL.
☆ Support multiple systems and languages, secondary development.
| Scan Type | CMOS |
| Light Source | Red Light LED 625±10nm(aim), 5600K LEDs( Lighting) |
| CPU | 32-bit |
| Resolution | 640*480 |
| Reading precision | ≥4mil/0.1mm(PCS90%,Code 39) |
| Decoding speed | 25CM/S |
| Depth of field | 25mm-400mm |
| Scan Mode | Manual ,Continuous, Auto Sense, command control |
| Scan angle | |
| Pitch:±45° | |
| Roll: ±360° | |
| Skew: ±40° | |
| Print Contrast Signal | ≥25% |
| Ambient Light | Dark environment, indoor natural light |
| Symbologies | 1D:UPC-A,UPC-E,EAN-8,EAN-13,Code 128, GS1-128, Code 39,Code 93,Code 11,Interleaved 2 of 5,Matrix 2 of 5,Industrial 2 of 5 , Strande 2 of 5, Codabar ( NW-7 ) , MSI Plessey , GS1 Databar(RSS),China Post,etc. 2D: QR Code, Data Matrix,PDF417,Micro PDF 417, Aztec, etc. |
| Weight | <4g |
| Dimension | L 21.2 * W 15.3* H 11.6mm |
| Communication | USB(USB-KBW,USB-COM),TTL |
| Interface Type | FFC 12PIN Pitch 0.5 |
| Power Supply | DC 3.3V <190mA(Work) |
| Operating | -20℃ to 50℃ |
| Storage | -40℃ to 70℃ |
| Humidity | 5% to 95%(non-condensing) |
| Drop Height | 1.2m |
| Temp. Test | 30 minutes for high Temp., 30 minutes for low Temp., |
| HighTemp. | 60℃ |
| LowTemp. | -20℃ |
| Transport | 10H@125RPM |
|
