| Categories | Steel Grinding Balls |
|---|---|
| Brand Name: | DRAGON STEEL BALLS |
| Model Number: | 45# 60Mn B2 B3 Low Cr Mid Chrome High Cr |
| Certification: | CE,ISO |
| Place of Origin: | CHINA |
| MOQ: | 1 ton |
| Price: | Negotiable |
| Payment Terms: | L/C, T/T, D/A, D/P, Western Union, MoneyGram |
| Supply Ability: | 3000 tons / Month |
| Delivery Time: | 3-7 work days/ 25 tons |
| Packaging Details: | Container bags ,steel drums |
| Main Product: | Forged Steel Balls |
| Port: | Tianjin/Qingdao/Shanghai |
| Advantage: | Good Wear Resistant,High Hardness,Low Breakage |
| Size: | 20mm-150mm |
| Tolerance: | +-1,+-2 |
| Process: | Forging,hot rolling,casting |
| Company Info. |
| Jinan Dragon Steel Balls Co.,Ltd |
| View Contact Details |
| Product List |

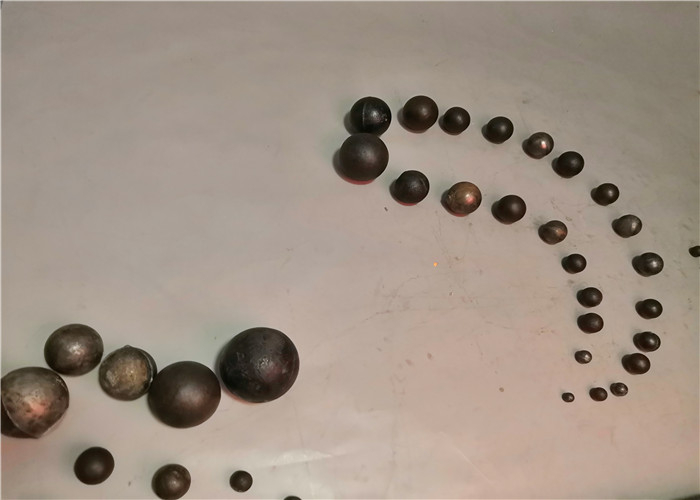

Hot Rolling Forged Steel Ball Steel Grinding Balls For Ball Mill Grinding Media
1. Forged Steel Ball Chemical Elements
Material | Chemical Composition | |||||||
C | Si | Mn | Cr | P | S | Ni | Cu | |
C45 | 0.42-0.5 | 0.17-0.37 | 0.5-0.8 | ≤0.25 | ≤0.035 | ≤0.035 | ≤0.25 | ≤0.25 |
60Mn | 0.55-0.65 | 0.17-0.37 | 0.7-1.0 | ≤0.25 | <0.04 | <0.04 | ≤0.3 | ≤0.25 |
B2 | 0.72-0.85 | 0.17-0.37 | 0.7-1.0 | 0.4-0.6 | ≤0.025 | ≤0.025 | ≤0.02 | ≤0.02 |
B3 | 0.58-0.66 | 1.3-1.9 | 0.65-0.8 | 0.7-0.9 | ≤0.025 | ≤0.025 | ≤0.02 | ≤0.02 |
2. Cast Iron Ball,Cylpebs Chemical Elements
| Material | C | Si | Mn | Cr | P | S |
| Low Cr | 2.2-3.4 | ≤1.2 | 0.5-1.5 | 1.0-1.5 | ≤0.06 | ≤0.06 |
| Medium Cr | 2.0-3.2 | <1.0 | 0.5-2.5 | ≥5 | ≤0.06 | ≤0.06 |
| High Cr | 2.0-3.2 | <1.0 | 0.5-2.5 | ≥10 | ≤0.06 | ≤0.06 |
3. Forged Steel Ball Hardness
Size | C45 | 60Mn | B2 | B3 |
| 20mm | 55-58 | 58-62 | 60-64 | 62-65 |
| 30mm | 55-58 | 58-62 | 60-64 | 62-65 |
| 40mm | 55-58 | 58-62 | 60-64 | 62-65 |
| 50mm | 55-58 | 58-62 | 60-64 | 62-65 |
| 60mm | 55-58 | 58-62 | 60-64 | 62-65 |
| 70mm | 53-56 | 58-62 | 60-64 | 61-63 |
| 80mm | 53-56 | 58-62 | 59-63 | 60-65 |
| 90mm | 50-55 | 58-62 | 57-61 | 60-65 |
| 100mm | 48-52 | 57-61 | 56-60 | 60-65 |
| 110mm | 48-52 | 57-61 | 55-60 | 58-64 |
| 120mm | 48-52 | 57-61 | 55-60 | 56-63 |
| 130mm | 48-52 | 57-61 | 55-60 | 56-63 |
| 140mm | 48-52 | 57-61 | 55-60 | 56-63 |
| 150mm | 48-52 | 57-61 | 55-60 | 56-63 |
4. Cast Iron Ball,Cylpebs Hardness
| Type | Low Cr | Medium Cr | High Cr |
| 20mm-150mm | 45-50 | 48-55 | 58-63 |
5. Dragon Balls Different Product Line
Main Product | Production Line |
Cast Iron Ball | Casting:Smelting the material in the furnace, pour out to the mould. |
Forged Ball | Forging: Heating raw materials by electric circuit, air hammering and forging |
Hot Rolling Ball | Rolling : Hot Rolling by the rolling machine |
Cylpebs | Casting:Smelting the material in the furnace, pour out to the mould. |
Grinding Rods | Heat treatment : Heat treatment the raw material |
Liners | Customized casting |
