Application

Any fabric that will be designed to hold a lot of weight or force must undergo an intense bursting strength test before final processing. These types of fabrics are like tarps, pool covers, compactor curtains, truck covers, etc. This is to make sure the bursting strength of these fabrics meet the minimum requirement that will be needed to withstand any level of force and weight.

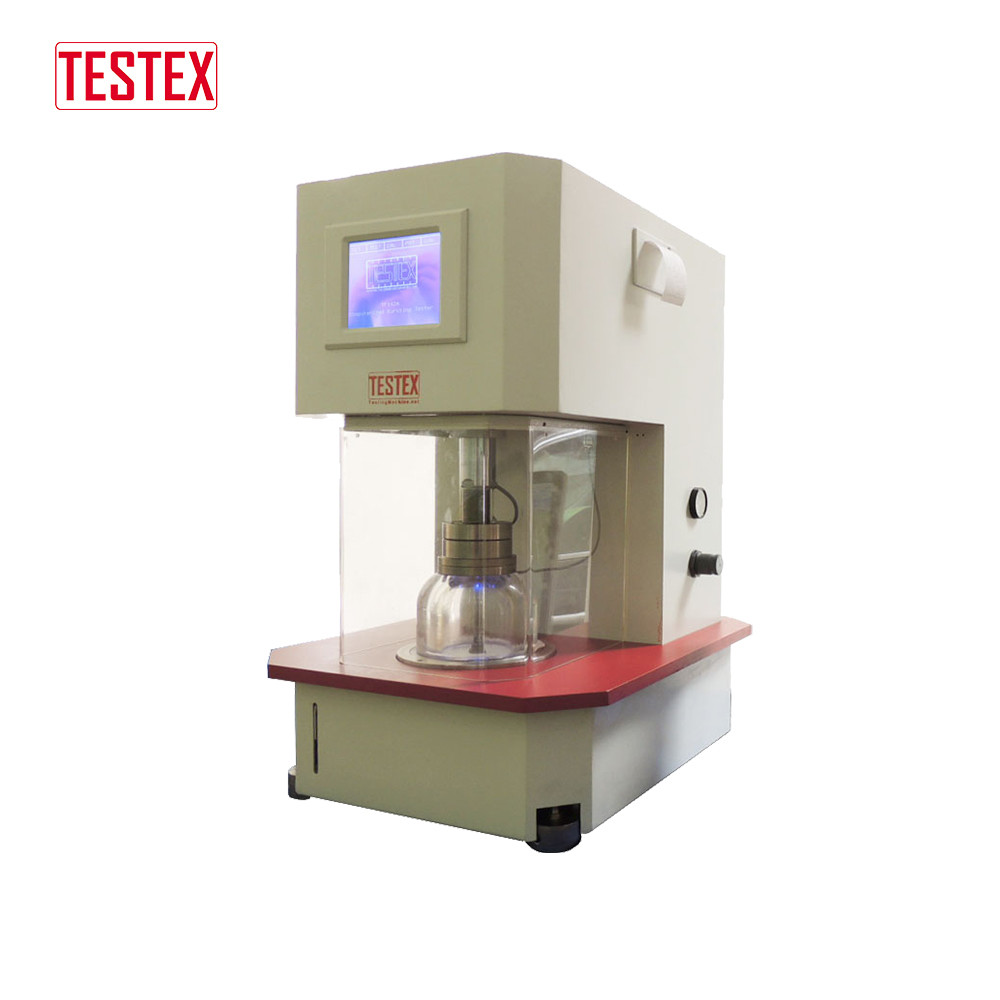

Digital bursting strength apparatus comes with a digital screen on which the operator will read pressure. It also comes with rubber diaphragms and peak hold facility. There is also an automatic clamping device, an LED lamp to make observation easier as well as a clear acrylic bell.

It comes with an LED lamp to make observation easier and an automatic clamping device. It also comes with three test bells that can be interchanged as well as clamping ring sets.

Three test methods which are Certain Pressure Bursting, Constant Speed Bursting and Certain Extension Bursting can be carried out on using the machine. The busting testing machine is also known as the Mullen Bursting Tester because the testing procedure it uses is called the Mullen Burst Test. During this testing procedure, a ring with a diameter of 1.22 inches is used to clamp the specimen. Then a rubber diaphragm is inflated against the specimen until it ruptures.

Models

1. TF142A 2000 kPa (290 psi)

2. TF142B 10000 kPa (1450 psi)

Specifications / Features

• Resolution 2Kpa

• High-accuracy servo-motor driving system

• Automatic-clamping offers firm and reliable clamping

• Large colorful touch panel, can be operated without computer

• Equipped with memory and printing function, supporting on-line operation

• Test Head and Clamp: 50cm2(Φ79.8mm), 7.3cm2(Φ30.5mm), the other sizes are available on request

Q:Are your company a trading one or a factory?

A:Factory + trade (integration), more than 10 years focusing on test instruments field, 6 years exporting experience.

Q:Do you provide any guidance in your training materials?

A:We will provide manuals of every instrument. And we can send you the video of how to use the instrument or we can show you via video chat. We will help you until solving out all the problem.

Q:Which carrier do you use?

A:We usually use DHL, TNT, UPS, and FEDEX to transport our goods.
