| Categories | Transmission Line Tool |
|---|---|
| Brand Name: | Boyu |
| Model Number: | TYHT-131L |
| Certification: | ISO9001 |
| Place of Origin: | China |
| MOQ: | 1Set |
| Price: | Negotiable |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 50000 sets/month |
| Delivery Time: | 10-30 days |
| Packaging Details: | Plastic case |
| Crimping range: | 16-400mm2 |
| Crimping type: | Hexagon |
| Crimping force: | 160KN |
| Stroke: | 42mm |
| Weight: | 7.0kg |
| Standard accessories: | 50, 70, 95, 120, 150, 185, 240, 300, 400mm2 |
| Company Info. |
| Yixing Boyu Electric Power Machinery Co.,LTD |
| Verified Supplier |
| View Contact Details |
| Product List |

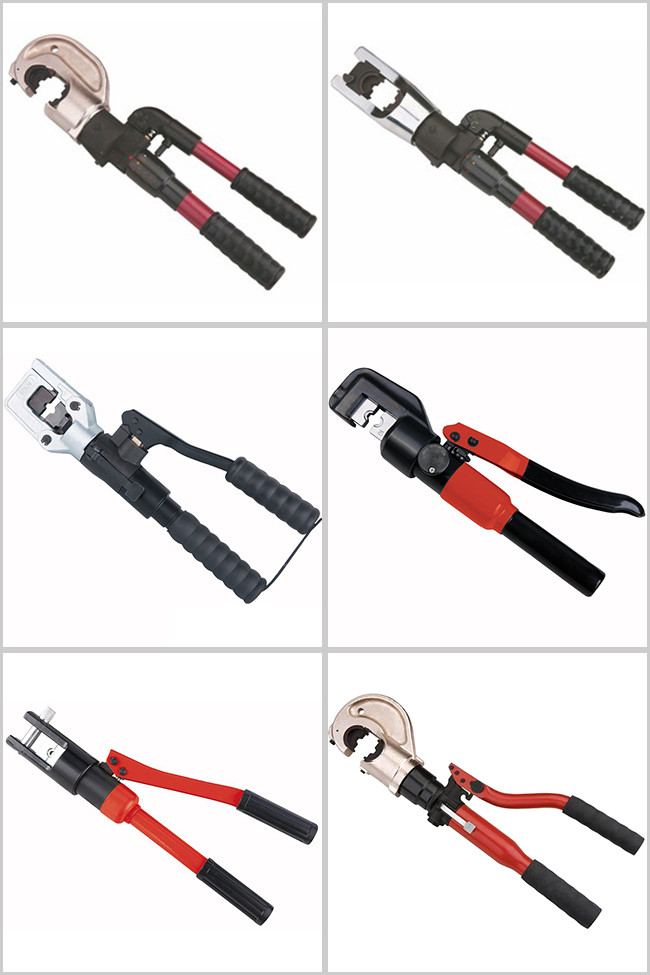

160KN Hydraulic Self-adjustable Copper Tube Terminal Hand Crimping Tools
| Model | Crimping range | Crimping force | Crimping type | Stroke | Length | Weight | Standard accessories |
| TYHT-131L | 16-400mm2 | 160KN | Hexagon | 42mm | 550mm | 7.0kg | 50, 70, 95, 120, 150, 185, 240, 300, 400mm2 |
| TYHT-131U | 16-400mm2 | 160KN | Hexagon | 42mm | 550mm | 7.0kg | 50, 70, 95, 120, 150, 185, 240, 300, 400mm2 |
| TYHT-300 | 16-300mm2 | 60KN | Hexagon | 17mm | 460mm | 3.3kg | 16, 25, 35, 50, 70, 95, 120, 150, 185, 240, 300mm2 |
| TYHT-12030 | 16-300mm2 | 120KN | Hexagon | 32mm | 545mm | 6.5kg | 35, 50, 70, 95, 120, 150, 185, 240, 300mm2 |
| TYHT-12032 | 16-400mm2 | 120KN | Hexagon | 32mm | 552mm | 6.5kg | 50, 70, 95, 120, 150, 185, 240, 300, 400mm2 |
| TYHT-12038 | 16-400mm2 | 120KN | Hexagon | 38mm | 560mm | 6.8kg | 50, 70, 95, 120, 150, 185, 240, 300, 400mm2 |
| TYHT-13042 | 16-400mm2 | 130KN | Hexagon | 42mm | 560mm | 7.0kg | 50, 70, 95, 120, 150, 185, 240, 300, 400mm2 |
| TYHT-51 | 10-240mm2 | 60KN | Hexagon | 15mm | 380mm | 2.75kg | 10, 16, 25, 35, 50, 70, 95, 120, 150, 185, 240mm2 |
| TYZCO-300 | 16-300mm2 | 100KN | Hexagon | 16mm | 540mm | 5kg | 16, 25, 35, 50, 70, 95, 120, 150, 185, 240, 300mm2 |
| TYZCO-400 | 16-400mm2 | 120KN | Hexagon | 32mm | 540mm | 6.5kg | 50, 70, 95, 120, 150, 185, 240, 300, 400mm2 |
| TYZYO-400 | 16-400mm2 | 120KN | Hexagon | 16mm | 540mm | 5.5kg | 50, 70, 95, 120, 150, 185, 240, 300, 400mm2 |
| TYCYO-300C | 16-300mm2 | 120KN | Hexagon | 32mm | 540mm | 6.2kg | 35, 50, 70, 95, 120, 150, 185, 240, 300mm2 |
| TYFKO-240A | 16-240mm2 | 100KN | Hexagon | 16mm | 540mm | 4.8kg | 16, 25, 35, 50, 70, 95, 120, 150, 185, 240mm2 |
| TYCPO-150S | 8-150mm2 | 100KN | Hexagon | 17mm | approx.540mm | 4.8kg | Male: 8-38, 60-150mm2 Female: 14-22, 38-60, 70-80, 100-150mm2 |
| TYYQH-240 | 16-240mm2 | 60KN | Hexagon | 13mm | 470mm | 3.0kg | 16, 25, 35, 50, 70, 95, 120, 150, 185, 240mm2 |
| TYZHO-240 | 16-240mm2 | 100KN | Hexagon | 16mm | 540mm | 4.5kg | 16, 25, 35, 50, 70, 95, 120, 150, 185, 240mm2 |
| TYZHO-300 | 16-300mm2 | 100KN | Hexagon | 16mm | 540mm | 4.5kg | 16, 25, 35, 50, 70, 95, 120, 150, 185, 240mm2 |
| TYYQK-70 | 4-70mm2 | 45KN | Hexagon | 11mm | Approx.410mm | Approx.1.8kg | 4, 6, 8, 10, 16, 25, 35, 50, 70mm2 |
| TYYQK-120 | 10-120mm2 | 60KN | Hexagon | 13mm | Approx.410mm | Approx.2.8kg | 10, 16, 25, 35, 50, 70, 95, 120mm2 |
| TYYQK-240/300 | 16-240mm2 | 80KN | Hexagon | 18mm | Approx.475mm | Approx.3.6kg | 16, 25, 35, 50, 70, 95, 120, 150, 185, 240mm2 |
The tool has a stage speed of the punch and automatically switches
from a fast forward mold speed to a slower crimp speed.
For ease of operation and operator comfort, the tool head can be
fully rotated 180 degrees.
The tool is equipped with a maximum pressure valve that activates
when the maximum pressure is activated and alerts the operator to
stop working.
An interchangeable crimp die having a plurality of crimp
geometries.
|
