Customized Hall Effect Current Transducer High Performance For Relay Protection

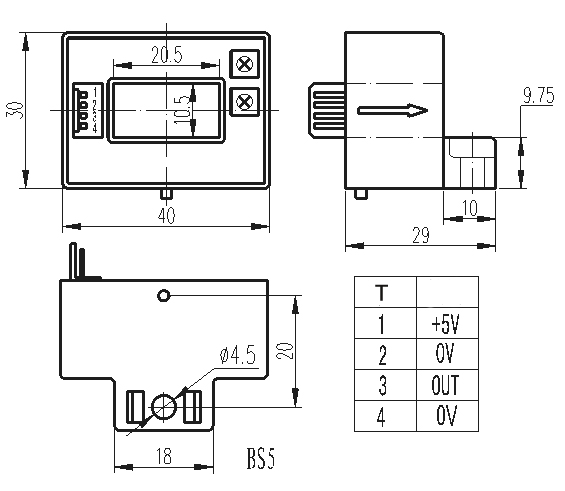

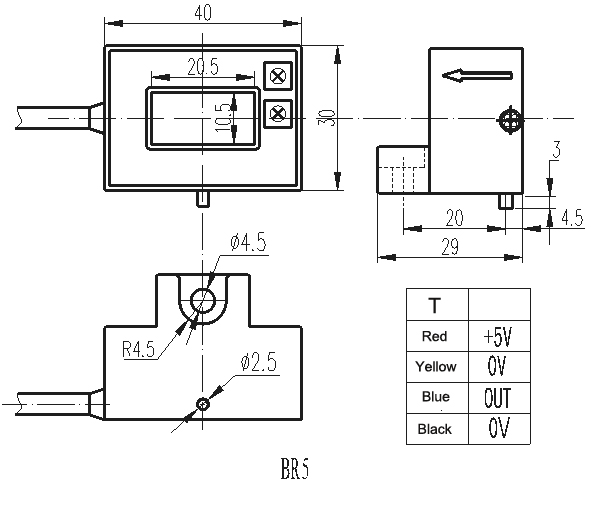

HKC-BS5/BR5 Series High Accuracy Closed Loop Hall Effect Current Sensor for Relay Protection

HKC-BS5/BR5 series dismountable hall effect current sensor is an open loop device based on the measuring principle of the hall effect, with a galvanic isolation between primary and secondary circuit. It provides accurate electronic measurement of DC, AC or pulsed currents.

Applications:

• Power supplies for welding applications
• Battery supplied applications
• AC variable speed drives and servo motor drives
• Static converters for DC motor drives
• Switched mode power supplies (SMPS)
• Uninterrupted power supplies (UPS)

Directions for use

• When the current will be measured goes through a sensor, the voltage will be measured at the output end.(Note: The false wiring may result in the damage of the sensor)
• Custom design in the different rated input current and the output voltage are available.

ELECTRICAL DATA:

Notes: Product specifications can be customized
