| Categories | Open Loop Hall Effect Current Sensor |
|---|---|
| Brand Name: | TOKEN |
| Model Number: | TKC-N/NR |
| Certification: | CE;ROHS |
| Place of Origin: | Nanjing,China |
| MOQ: | 10pcs |
| Price: | Price reconsideration |
| Payment Terms: | L/C, T/T, D/P, Western Union |
| Supply Ability: | 10K pcs per month |
| Delivery Time: | 7~10 working days |
| Packaging Details: | Little carton:34*23*21CM 36pcs/carton;Large carton size 48*37*26CM 72pcs/carton |
| Product name: | TKC-N/NR series current sensor |
| principle: | hall effect |
| application: | Switched Mode Power Supplies |
| Input current: | 100-2000A |
| Supply voltage: | ±15 ±5% |
| Standards: | IEC60950-1:2001 |
UL94-V0 Open Loop Hall Effect Current Sensor 100-2000A Input Current
The TKC-N/NR series current sensor is a open loop device based on the measuring principle of the hall effect, with a galvanic isolation between primary and secondary circuit. It provides accurate electronic measurement of DC, AC or pulsed currents.
Electrical data (Ta=25℃±5℃,RL=2KΩ,CL=10000PF)
Type | TKC100N/NR | TKC200N/NR | TKC300N/NR | TKC400N/NR | TKC500N/NR | TKC600N/NR | Unit |
Rated input (Ipn) | ±100 | ±200 | ±300 | ±400 | ±500 | ±600 | A |
Measure range(Ip) | ±300 | ±600 | ±900 | ±1000 | ±1000 | ±1000 | A |
Rated output | @Ip=±Ipn ±4±1% | V | |||||
Supply voltage | ±15 ±5% | V | |||||
Power Consumption | +18,-10 | mA | |||||
Offset voltage | @Ip=0 ≤25 | mV | |||||
Magnetic offset | @Ip=±Ipn ≤±30 | mV | |||||
Offset drift | @ -40℃～+85℃ ≤±0.5 | mV/℃ | |||||
output drift | @ -40℃～+85℃ ≤±0.5 | mV/℃ | |||||
Linearity | @Ip=0-±Ipn ≤1 | %FS | |||||
Response time | @50A/μS, 10%-90% ≤5 | μS | |||||
Galvanic isolation | @ 50HZ,AC,1min 3.0 | KV | |||||
Applications
Variable speed drives
Welding machine
Battery supplied applications
Uninterruptible Power Supplies (UPS)
Electrochemical
Switched Mode Power Supplies (SMPS)
Mechanical dimension(for reference only)
Remarks:
1. All dimensions are in mm.
2. General tolerance ±1mm.
Directions for use
When the current will be measured goes through a sensor, the voltage will be measured at the output end.
(Note: The false wiring may result in the damage of the sensor).
Customs can adjust Output amplitude of the sensor by needs.
Custom design in the different rated input current and the output voltage are available.
Standards
General date
| Value | Unit | Symbol | |
| Operating temperature | -40 to +85 | ºC | TA |
| Storage temperature | -40 to +125 | ºC | TS |
| Mass(approx) | 79 | g | M |

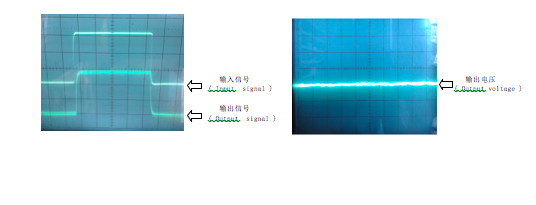

Characteristics chart
Pulse current signal response characteristic Effects of impulse noise
|
