Customerized P10 Transparent led screens with Nationstar SMD1921

Categories Transparent LED Screens
Material: Aluminum
Light: Nationstar
IP Rating: IP30
Transparent Rate: 20%-80% transparent rate
Warranty: 2 Years
Brightness: more than 5500nits
Brand Name: Bako Vision
Model Number: P10
Certification: CCC,CE,ETL,RoHS,FCC
Place of Origin: China
MOQ: 1 m²
Payment Terms: L/C, T/T, Western Union
Supply Ability: 8000m²/Year
Delivery Time: 25 Days
Packaging Details: Flight case/ Plywood case
Price: Negotiable
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Customerized P10 Transparent led screens with Nationstar SMD1921

Customerized P10 Transparent led screens with Nationstar SMD1921


P10 Transparent led screens desription

Transparent and clean
Laminated safety glass
Excellent view angle
Hidden cable appearance
Easy to install and dismantle



P10 Transparent led screens parameter

 BG-10
Physical Pitch10.4x10.4mm
Pixel ConfigurationSMD1921
Pixel Density9216pixels/m²
Module Dimensions (WxH)(mm)500x125
Panel Dimensions (WxH)(mm)1000x500
NO. of Modules Per Panel(WxH)2x4
Physical Resolution of Module(WxH)48x12
Physical Resolution of Panel(WxH)96x48
Panel MaterialAluminum
Single Cabinet Weight<14kg/m²
Gray Scale16bit
Colours281 trillion
Contrast Ratio2000:01:00
Average Power Consumption140W/m²
Max. Power Consumption400W/m²
Operating Temp/Humidity-10ºC-60ºC/ 10%-60%
Storage Temp/Humidity-30ºC-60ºC/ 10%-60%
Refresh Rate>1920Hz
Brightness1000~4200 nits
Horizontal Viewing Angle160°
Vertical Viewing Angle140°
Expected Lifetime100,000Hrs
IP Rating(Front/Rear)IP30
ServicingRear
Scan Method1/2 or 1/4 Scan

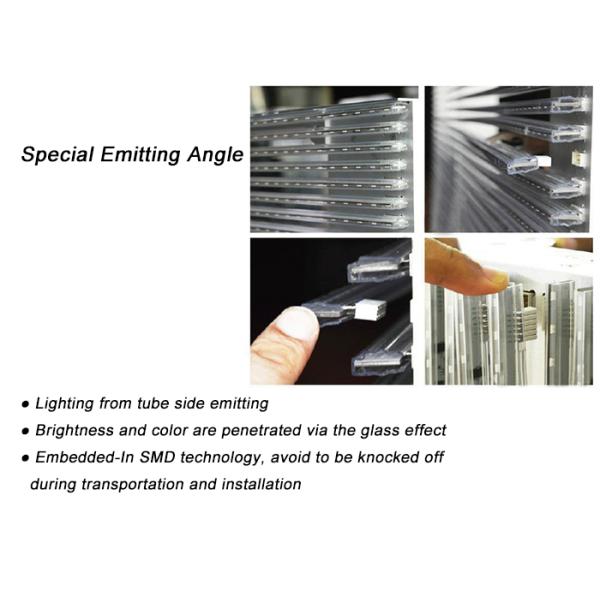

P10 Transparent led screens feature:



P10 Transparent led screens

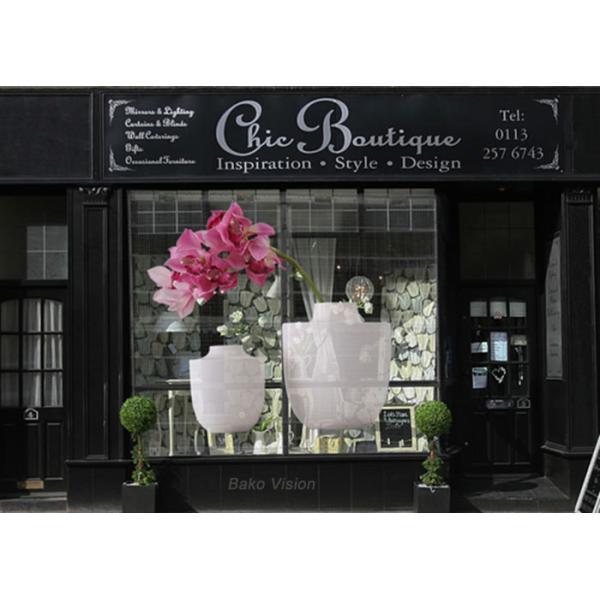

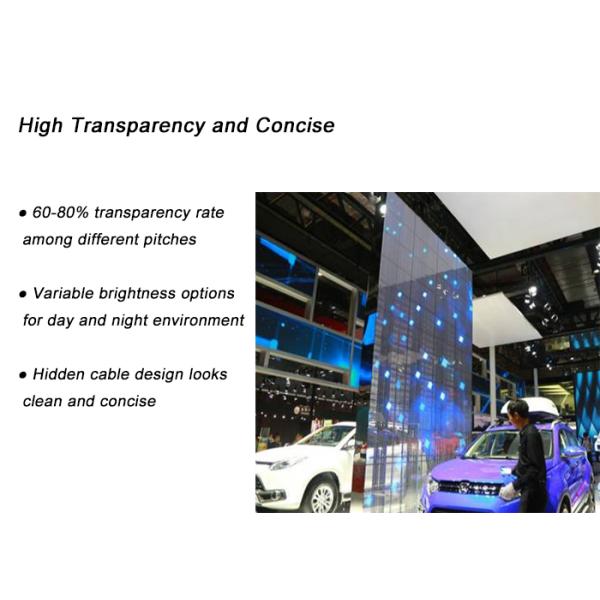

Cases:
