19 Inch Open Frame LCD Display Infrared Multi Touch Screen For Computer Game

Categories Embedded Panel PC
Brand Name: ZXTLCD
Model Number: ZXT-OPT190A
Certification: CE/Rohs/FCC/ERP Energy Label
Place of Origin: Guangdong, China
MOQ: 1 Piece
Price: Negotiate
Payment Terms: T/T,Western Union, Alibaba trade assurance
Supply Ability: 5,000 pcs per month
Delivery Time: 5-10 workdays
Packaging Details: wooden case, carton, flight case are option
Product name: Infrared Multi Touch Screen Open Frame Monitor
Color: White
Size: 19 Inch
Touch Screen: Infrared
Application: Computer PC..etc
Warranty: 1 Year
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

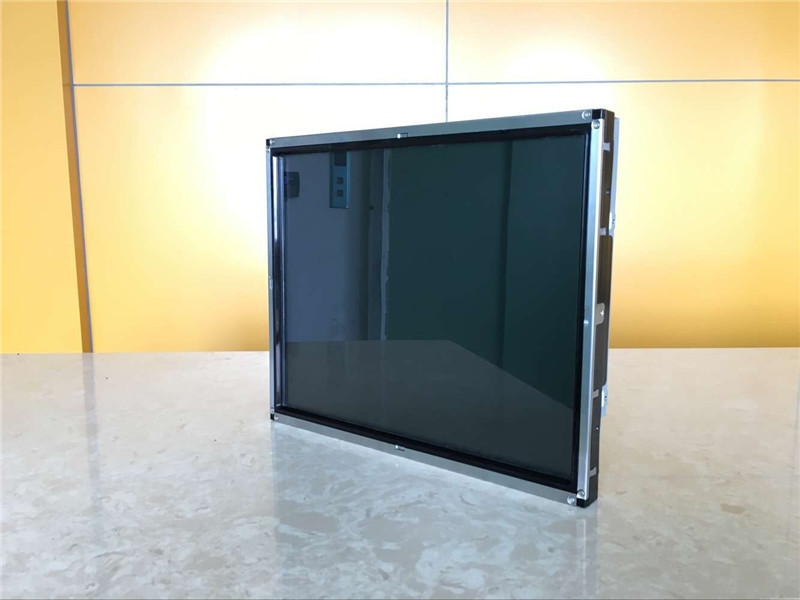

19 Inch Open Frame LCD Display Infrared Multi Touch Screen For Computer Game

White Color 19 Inch Infrared Multi Touch Screen Open Frame Monitor, Touch Frame Overlay Kit For Computer Game


Openframe /Desktop TFT LCD Touch screen monitor
Industrial / Commercial Usage Touch Monitor
SAW / IR / Capacitive / Resistive touch screen Touch Monitor / TFT LCD Monitor
USB / RS232 Touch screen Monitor Display
VGA /DVI / HDMI /DP Touch Monitor Display
1-10 Points Touch Mointor Overlay
Dustproof / Waterproof / Outdoor Touch Monitor
Support Windows/ Android/ Linux / Imac Touch Monitor


------------------------------Feature--------------------------------

Product Description
Touch Screen Monitors with VGA/DVI,USB/RS232
This touch monitor is sealed with metal-frame to meet IP65 dustproof standard and its economica and pracial
design especially for kiosks,gaming and entertainment etc.


Main Features
Bezel seal standard: NEMA3 and IEC IP65
Long lasting product cycle-enclosure controlled by CJtouch specifications
Future generation panels phased-in without external changes
High quality panel with high brightness,high contrast ratio and broad viewing angle
Multiple mounting options including VESA mount, horizontal or vertical bracket-mount
ZXT’s SAW technology on pure glass for the ultimate in image quality
Finger or gloved hand operation
Dual USB/Serial touch interface port


-------------------------Technical Specification--------------------------


Touch Screen Monitor


ModelZXT-OPT190A
SeriesDust-proof and Compact Metal-cased open frame
Monitor DimensionsWidth: 415mm Height: 343mm Depth: 54.2mm
Weight(N.W/G.W)6Kg / 8Kg (Approx.)
LCD Type19”SXGA Color TFT-LCD(HSD190MEN6)
Video InputVGA,DVI
Recommend Resolution1280×1024@75Hz
OSD controlsAllow on-screen adjustments of Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages, Function, Reset
Power SupplyType: External brick
Input (line) voltage: 100-240 VAC, 50-60 Hz
Output voltage/current: 12 volts at 4 amps max
Mount Interface1)VESA 75mm and 100mm
2)Mount bracket, horizontal or vertical
Regular Warranty3 years for SAW touch screen; 1 year for LCD
Agency ApprovalFCC,CE,RoHS

LCD Specification


Active Area(mm)376.320(H)×301.056(V)
Resolution1280×1024@75Hz
Dot Pitch(mm)0.294×0.294
Nominal Input Voltage VDD+5.0V(Typ)
Viewing angle (v/h)80°/85°
Contrast1000:1
Luminance(cd/m2)250Cd/m2(Typ.) (It can be more)
Response Time(Rising/Falling)3.6s/1.4s
Support Color16.7M colors
Backlight MTBF(hr)50000

Touchscreen Specification


TypeInfrared touch screen
Resolution4096*4096
Light Transmission92%
Touch Life Cycle50 millions
Touch Response time16ms
Touch System InterfaceUSB interface
Power consumption+5V@80mA

External AC Power Adapter


OutputDC 12V /4A
Input100-240 VAC, 50-60 Hz
MTBF50000 hr at 25°C

Environment


Operating Temp.0~50°C
Storage Temp-20~60°C
Operating RH20%~80%
Storage RH10%~90%
