| Categories | Automatic Bottle Filling Machine |
|---|---|
| Brand Name: | Jinyate |
| Model Number: | CGF24-24-8 |
| Certification: | CE,ISO,SGS |
| Place of Origin: | Jiangsu, China (Mainland) |
| MOQ: | 1 Set/Sets |
| Price: | Negotiable |
| Supply Ability: | 15 Set/Sets per Month |
| Delivery Time: | 30-45 working days |
| Packaging Details: | Standard wooden Boxes |
| Warranty: | One year for free |
| Control system: | PLC+touch screen |
| Function: | Washing Filling Capping |
| Power: | 6.57kw |
| Bottle type: | 200-2000ml |
| Voltage: | 380V/50Hz |
| Weight: | 5500kg |
| Dimension(L*W*H): | 2750*2180*2200mm |
CGF24-24-8 Water bottle filling machine
It is used to produce polyester bottled mineral water, purified
water, alcoholic beverage machinery and other non-gas beverage
machinery. It adopts bottle neck holding transmission technology to
realize fully automatic rinsing,filling and capping.Most elements
of electrical system employ foreign advanced products.Each machine
element that contacts with the liquid is made of high quality
stainless steel.They obtain the advantages of good abrasive
resistance,high stability,low failure rate,etc.The quality of the
equipments reaches the international advanced level.
Technical parameter
| Model | CGF24-24-8 |
| Production capacity(500ml)(b/h) | 8000-10000 |
| Filling precision | ≤±5MM(Liquid Level) |
| Polyester bottle standard(mm) | Bottle diameter40-80; |
| Height | Height:130-280 |
| Suitable cap shape | Plastic Screw Cap |
| Water pressure of Washing bottle(MPa) | 0.18 |
| Water consumption for Water bottle (kg/h) | 800 |
| Spraying position | 6 |
| Dripping bottle position | 3.5 |
| Gas source pressure(Mpa) | normal pressure |
| Gas consumption(m3/mm) | 0.4 |
| Total power | 6.57 |
| Total weight | 5500 |
| Dimension(L*W*H) | 2750*2180*2200mm |

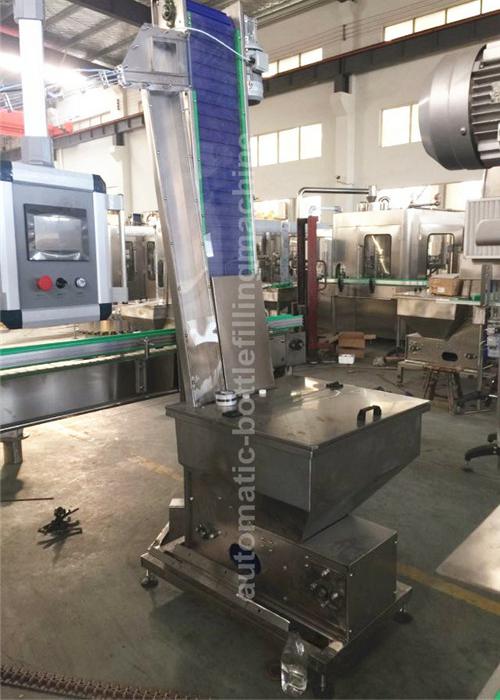

Cap elevator
inside look
We can also provide you with the complete water filling production
line:
1. Water treatment system: Raw water pump,Quartz sand filter,Active carbona filter,Sodium ion
filter,Precious filter,Reverse osmosis,Ozone generator/UV
sterilizer,Water storage tank,Water pump.
2. Water bottle washing filling capping 3 in1 monoblock machine
3. End-of-line packing system: Bottle dryer,Inkjet code printer,Labeling machine,PE film packing
machine
|
