Chi Hsin Innolux 7 Inch Car LCD Display model LW700AT9009 with 800*480 Pixels 250cd/m² Brightness and 60 Pin Connector

Categories Car LCD Display
Brand Name: Innolux
Model Number: LW700AT9009
Certification: Rohs,CE,FCC
Place of Origin: China
MOQ: 10pcs
Price: Negotiation
Payment Terms: T/T,W,Western Union,MoneyGram
Supply Ability: 3000pcs per week
Delivery Time: 4-5 working day
Packaging Details: Industrial packing
Quality: Brand new Original
Package: Original industrial packing
material: glass oled
color: 16.2m colors
model: XGA
style: wide screen high resolution 320*240Pixels
brightness: 250cd
connector: 60
contrast ratio: 400:1
working time: 20k hours
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Chi Hsin Innolux 7 Inch Car LCD Display model LW700AT9009 with 800*480 Pixels 250cd/m² Brightness and 60 Pin Connector

Chi Hsin Innolux 7 Inch Car LCD Display
800×480 Pixels Panel LW700AT9009 with 250cd/m² Luminance
Product Overview
Chi Hsin 7-inch car LCD Display LW700AT9009 features 800×480 WVGA resolution, 250 cd/m² luminance, and 60-pin TTL interface. This automotive-grade display panel is designed for reliable performance in various applications.
Technical Specifications
SpecificationDetails
BrandChi Hsin
Diagonal Size7.0 inch
Pixel Format800(RGB)×480 [WVGA]
Active Area152.4(H)×91.44(V) mm
Luminance250 cd/m² (Typ.)
View Direction6 o'clock
Viewing Angle70/70/60/70 (Typ.)(CR≥10)
Support Color16.7M 45% NTSC
Weight122g
Frame Rate60Hz
ModelLW700AT9009
Typea-Si TFT-LCD, LCM
ConfigurationRGB Vertical Stripe
Outline Dimensions165(H)×104.4(V)×5.5(D) mm
TreatmentAntiglare
Contrast Ratio400:1 (Typ.) (TM)
Response Time5/15 (Typ.)(Tr/Td)
Operating ModeTN, Normally White, Transmissive
Light SourceWLED [3S5P], 20K hours, W/O Driver
Touch PanelWithout
Interface Type60 pins TTL (1 ch, 8-bit), FPC
Power Supply3.3/12.0/18.0/-7.0V (Typ.)(Vcc/AVDD/VGH/VGL)
EnvironmentOperating Temperature: -20 ~ 70°C
Storage Temperature: -30 ~ 80°C
Key Features
  • 7.0 inch diagonal a-Si TFT-LCD display panel
  • Integral WLED backlight system (20,000 hours lifespan)
  • Wide operating temperature range (-20°C to 70°C)
  • Antiglare treatment for reduced reflections
  • 60-pin TTL interface with FPC connector
  • Compact and lightweight design (122g)
Recommended Applications
MP3 PMP, VOIP Phone, Digital Photo Frame, Portable DVD Player, and other automotive or portable electronic devices.
Important Note: This model entered mass production in Q2 2009 and is currently discontinued. For the latest production status and specification details, we strongly recommend contacting Chi Hsin Electronics Corp. or their authorized distributors before integrating this display into your product.
Product Images

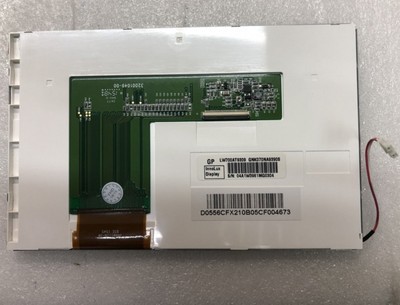

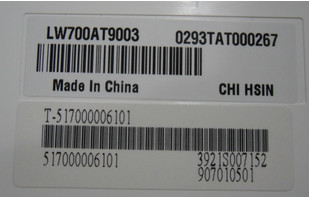

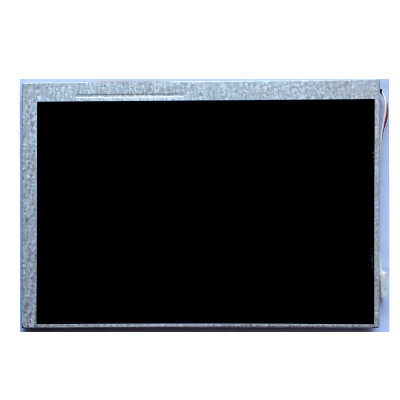

Chi Hsin LW700AT9009 LCD display front view Chi Hsin LW700AT9009 LCD display side view Chi Hsin LW700AT9009 LCD display technical details Chi Hsin LW700AT9009 LCD display interface connection
