| Categories | Barcode Scanner Module |
|---|---|
| Brand Name: | Rakinda |
| Model Number: | RD4300 |
| Certification: | CE FCC |
| Place of Origin: | Guangdong, China |
| MOQ: | 1 pieces |
| Price: | 62-75USD/piece |
| Payment Terms: | T/T, paypal,Credit card |
| Supply Ability: | 5000pieces per month |
| Delivery Time: | 1-7 Working days |
| Packaging Details: | carton package |
| Symbologies: | 1D/2D |
| Scan Speed: | ≥5mil |
| Operating Voltage: | 3.0~5.5VDC |
| Field of View: | Horizontal 80°, Vertical 56° |
| Scan Angle: | Roll: 360°, Pitch: ±40°, Skew: ±40° |
| Color: | White |
| Product Status: | Stock |

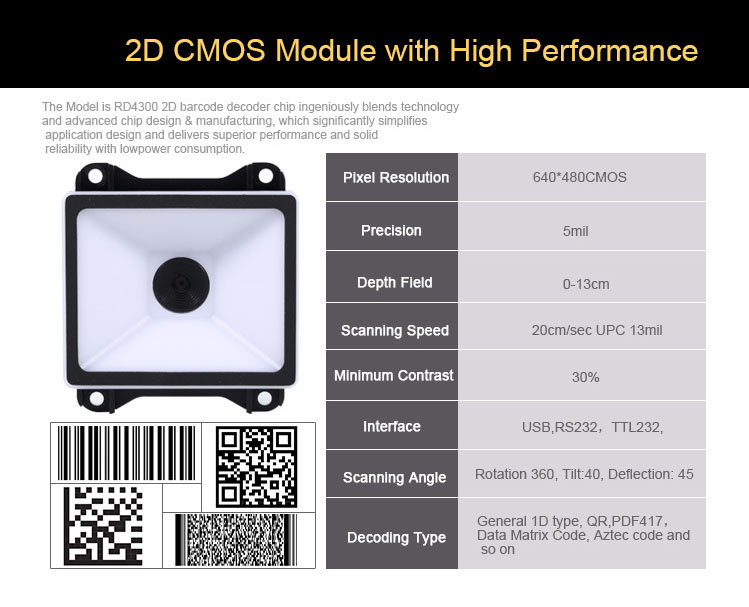

Product Parameters:
| Performance | Image Sensor | 640 * 480 CMOS | |
| Light Source | White LED | ||
| Symbologies | 2D | PDF 417, QR Code, Micro QR, Data Matrix, Aztec, Maxicode, Chinese Sensible Code, GM Code, Micro PDF417 Code, Code One | |
| 1D | EAN-8, EAN-13, UPC-E, UPC-A, Code 128, UCC/EAN128, I2Of5, ITF-14, ITF-6, Matrix 25, CodaBar, Code 39, Code 93, ISSN, ISBN, Industrial 25, Standard 25, Plessey, Code11, MSI-Plessey, UCC/EAN Composite, GS1 Databar, Code 49, Code 16K | ||
| Resolution | ≥5mil | ||
| Typical Depth of Field | EAN-13 | 25mm-110mm (13mil) | |
| PDF 417 | 35mm-50mm (6.7mil) | ||
| Data Matrix | 15mm-40mm (10mil) | ||
| QR Code | 0mm-90mm (15mil) | ||
| Symbol Contrast | 30% | ||
| Scan Angle** | Roll: 360°, Pitch: ±40°, Skew: ±45° | ||
| Field of View | Horizontal 68°, Vertical 51°, Diagonal 84.8° | ||
| Mechanical | Interface | TTL-232, RS-232, USB | |
| Electrical | Power Adapter | DC5V power adapter to power the NLS-EVK with RS-232 cable. | |
| Current 3.3VDC | Operating | 335mA (typical), 479mA (max.) | |
| Idle | 93mA | ||
| Dimensions | 61.5(W)×65.5(D)×31.9(H)mm (max.) | ||
| Weight | 33g | ||
| Environmental | Operating Temperature | -40℃~+60℃ | |
| Storage Temperature | -40℃~+75℃ | ||
| Humidity | 5%~95% (non-condensing) | ||
| Ambient Light | 0~100000lux (natural light) | ||
| Accessories | Cable | USB Used to connect the NLS-EVK to a host device. | |
Features:
UIMG core technology. The self-developed sixth-generation UIMG core decoding technology
can quickly read various quality barcodes.
Excellent screen reading ability. Special adjustment for screen barcodes, which can adapt to
large brightness screen barcodes with low brightness and various
types of film.
Rich interface. USB and TTL-232 interfaces are available to meet more interface
requirements.
Green low power consumption. The use of independent NLDC core technology greatly reduces
operating power consumption and extends equipment life.

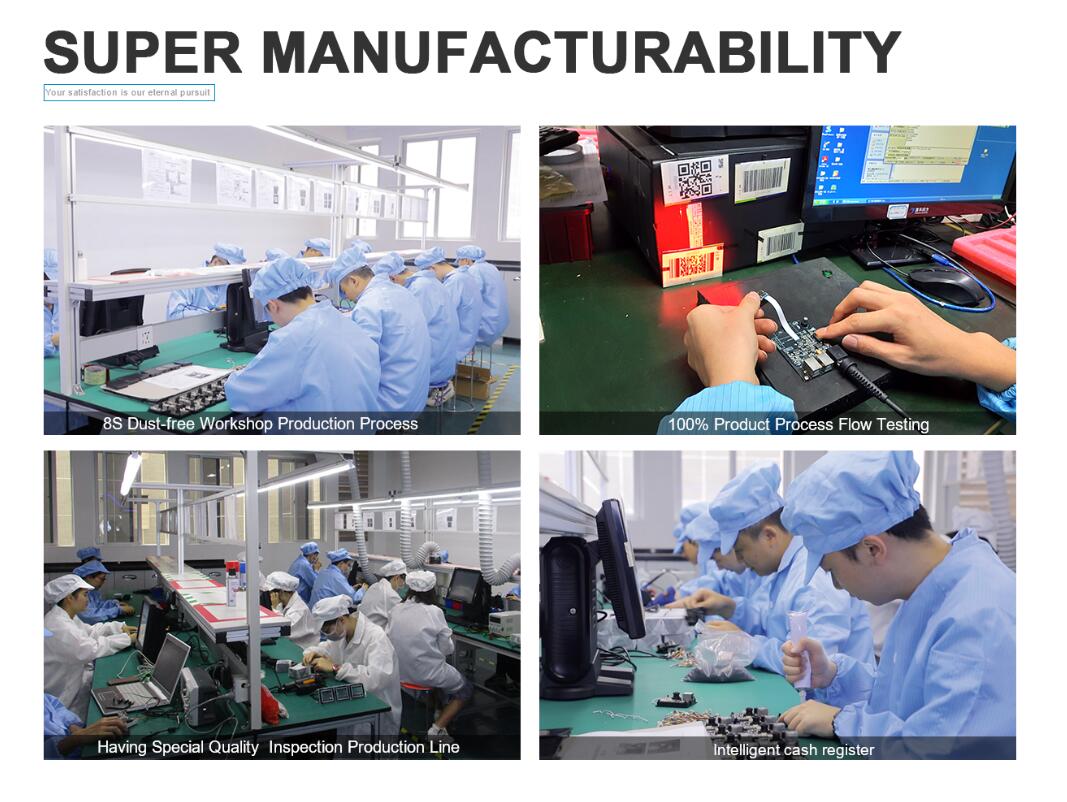

Rakinda is located in Shenzhen Lilang Industrial Park, initially
established in 2000. Rakinda is a prestigious high-tech company
specializing in designing, developing and manufacturing barcode
scan instruments including OEM
barcode scan engine, desktop barcode scanner, handheld barcode scanners, cordless
barcode scanners, image platform, android data terminal, etc. The
application domains are manufacturing, retailing, postage, logistic
and medical services, etc.
|
