| P/N: | KCO-4JIG-FCU-36 |
| Grade: | 0.3dB, 3D |
| Polishing scope: | SC/UPC connector |
| Disk Size: | 179mm |
| Connector: | 36 connector |
| Machine: | Corner pressure polishing machine |
| Company Info. |
| KOCENT OPTEC LIMITED |
| Verified Supplier |
| View Contact Details |
| Product List |

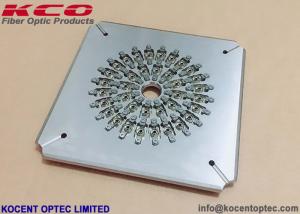

FC/UPC Fiber Optic Connector Polishing Jigs 36 Ports 3D Pass For Four Corners Polishing Machine
Description:
- This polishing jigs is designed for corner pressure fiber optic polishing machine only.
- It has 36 FC/UPC adapter on the jigs, maximum can polish 36 connectors each time, increase grinding efficiency
- Used for four corners pressure polishing machine.
- Suitable for FC/PC connector polishing style.
- 38 positions for Connector head.
- Polishing 36 connector a time.
- FC/UPC poloshing jig is available in 24 ports, 32 ports, and maximum 36 ports.
Feature:
- High quality steel construction, high precision.
- The interference rate of 2. is over 90%.
- The use of independent afterburner way to eliminate the grinding
head of different length of exposure on the impact of grinding.
- Each grinding disc can be fitted with a plurality of grinding
heads, and the production efficiency is high.
- Adapters interchangeable to extend the service life of the
grinding disk.
- Three kinds of grinding heads, SC/PC, FC/PC, ST/PC,
interchangeable.
- The utility model saves the number of the grinding disk and saves
the production cost.
- Grinding can be integrated grinding disk, also suitable for rework.
- According to customer requirements design, APC, MPO, E2000, MTP, MPX
and so on.
Applications:
| Product Type | Application |
| D | · Lapping for Fiber optic connector, fiber array, glass pig tail(angel removal, rough grinding, medium polishing, fine finishing) ·Polishing for magnetic heads and hard disks ·Lapping and polishing for optical glasses, optical crystal , LED ·Lapping and polishing for Semiconductor wafer (gallium arsenide, indium phosphide etc.) ·Edge polishing for silicon wafer |
| SC | ·Epoxy and glass removal ·Lapping and polishing for plastic ferrules ·Fine finishing and polishing for magnetic heads |
| AO | ·Polishing for fiber optical connectors ·Polishing for silicon wafer used in Solar cells ·Polishing for hard disks ·Polishing for ITO ·Lapping and polishing for optical crystal |
| CO | ·The final polishing for fiber optical connectors ·Polishing for optical devices |
| SO | ·The final super-precise polishing of optical fiber connector |
Specifications:
| Type | D(Diamond) | SC (Silicon Carbide) | AO(Aluminum Oxide) | CO(Cerium Oxide) | SO(Silicon Oxide) | ||
| Grit Size/um | 30 | Green | Light Green | Green | |||
| 20 | White | ||||||
| 16 | White | ||||||
| 15 | Yellow-Green | Tawny | Light Green | Brown | |||
| 12 | Yellow | ||||||
| 9 | Blue | Orange | Gray-green | Blue | |||
| 6 | Yellow | ||||||
| 5 | Gray-green | White | |||||
| 3 | Pink | Tan | Pink & White | ||||
| 2 | Gray-green | Bright Green | |||||
| 1 | off-white | Lavender | Gray-green | Blue | |||
| 0.5 | off-white | Brown-yellow | White | White | |||
| 0.3 | White | Dark Red | |||||
| 0.2 | Grey | ||||||
| 0.1 | Light Brown | White | |||||
| 0.02 | Transparent | ||||||
| 0.01 | Transparent | ||||||
| Recommended Polishing Medium | Water/Oil | Water/Oil | Water/Oil | SOQ-12D | Water | ||
| Standard Size | Disk:Φ70mm, Φ110mm, Φ127mm(5inch), Φ203mm(8inch) | ||||||
Sheet: 114mm*114mm, 152mm*152mm(6inch), 228*228mm(9inch) | |||||||
| Note: Other film sizes are available upon request. | |||||||
Product pictures:

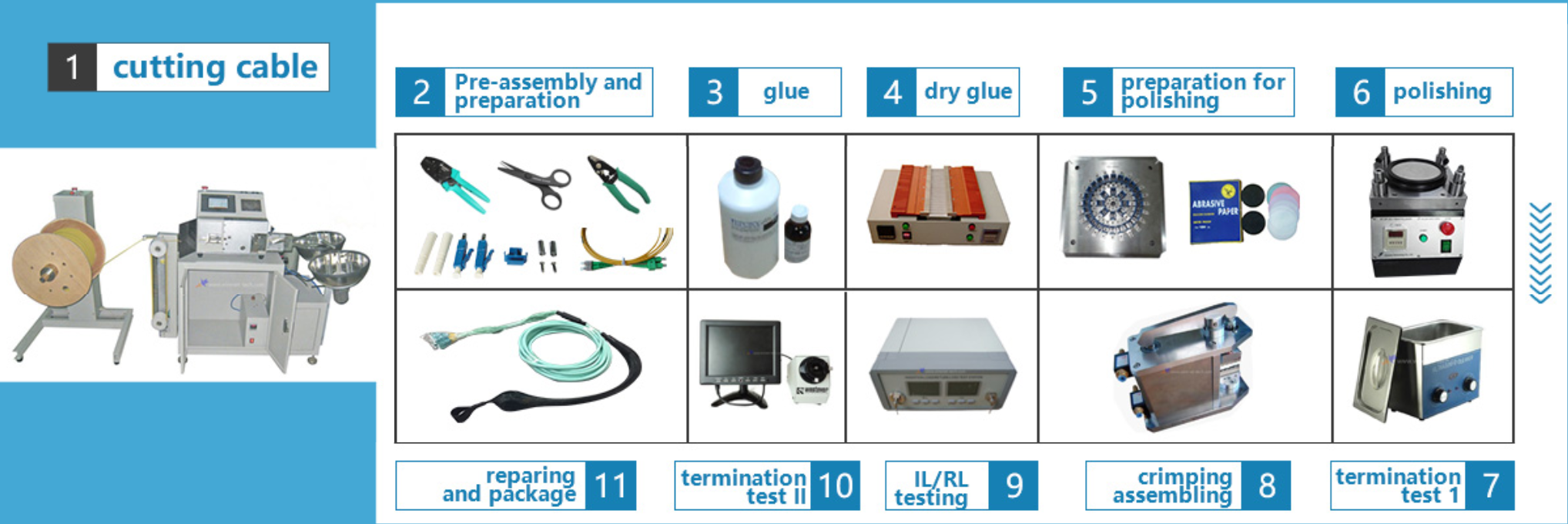

Fiber Optic Patch Cord Production Process:
OEM/ODM Service:
- If you want to show your own brand LOGO on the goods such as
cable, package bag, label or any where. Our OEM and ODM service is
always ready to do it. Please contact with our sales team to get
best support.
Packing:
- According to Stardard Export Packing.
- Carton box, wooden box, wooden pallet.
Shipping:
- International express such as UPS, TNT, DHL, etc
- Internatioal air: CA, AA, EA, etc
- By sea
- Standard export sea port: Shenzhen, Hongkong, Ningbo
- Standard export airport: Shenzhen, Hongkong, Hangzhou, Shanghai
|
