2.97Gbps SDI Loopout 3G SDI To HDMI Converter

SD/HD/3G, SDI TO HDMI, with SDI Loopout, AV Signal Converter

1.0 Introduction

The SDI to HDMI converter allows SD-SDI, HD-SDI and 3G-SDI signals to be shown on HDMI/SDI displays while ensuring high bit rates of 2.970 Gbit/s to give you fast signal transmission without any loss. For professionals this means that it is now easier to distribute and extend your 3G SDI signal while giving you the ability to display your work on HDMI displays thanks to the built in HDMI converter. Furthermore, thanks to the loop-through 3G-SDI design, users are able to enjoy both SDI and HDMI displays at the same time.

2.0 Specifications

3.0 Features

1. Operation at 2.970Gbit/s, 2.970/1.001Gbit/s, 1.485Gbit/s, 1.485/1.001Gbit/s and 270Mbits/s.

2. Supports SMPTE 425M (Level A and Level B), SMPTE 424M,SMPTE 292M,SMPTE 259M-C.

3. Equalized and re-clocked loop output• Integrated audio de-embedder for a maximum of 8 channel, 48 kHz audio.

4. Auto video mode detection (3G/SD/HD)

5. Conversion from SMPTE 425M level B to Level A 1080p 50/59.94/60 4:2:2 10-bit.

6. Connect with other units to extend your signal over long distances.

7. Simultaneous display with SDI and HDMI signals

8. Supports signal transmission distances of up to 300M for SDI signals,200M for HD signals and 100M for 3G signals

4.0 Packaging accessories:

Before attempting to use this unit, please check the packaging and make sure the following items are contained in the shipping carton:

1. SDI TO HDMI CONVERTER------------------------------1Pcs

2. 5V DC Power Adaptor---------------------------------------1Pcs

3. User Manual---------------------------------------------------1Pcs

5.0 Panel introduction

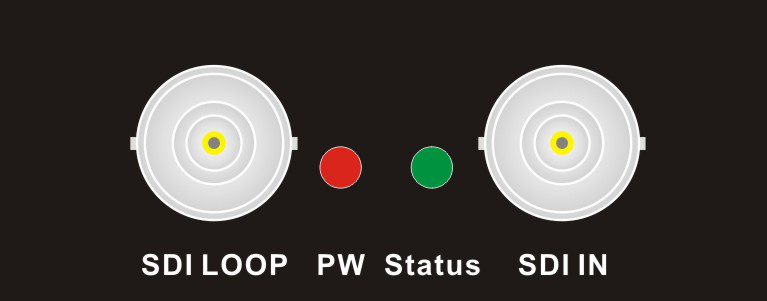

Please study the panel drawings below and become familiar with the signal input(s), output(s) and power requirements.

1. SDI LOOP -------------------SDI Output interface

2. PW -----------------Power Input Status Indication

3. Status -----------------SDI Input Status Indication

4. SDI IN ----------------------------SDI Input interface

5. DC 5V-------------------------Power Input interface

6. HDMI OUTPUT -----------HDMI Output interface

6.0 Connection and operation

1. Connect the Coaxial Cable between SDI signal source and SDI INPUT of converter.

2. Connect the Coaxial Cable between converter and SDI display.

3. Connect the HDMI Cable between converter and HDMI display.

4. Connect the power adapter between converter and outlet.

5. Open the power supply of HDMI signal source and the display. Choose corresponding input ports, then it works.
