CIE LAB Chroma Meter 3nh NR100 Color Testing Machine

Categories 3nh Colorimeter
Brand Name: 3nh
Model Number: NR100
Certification: CE, TUV, FCC, ISO9001, RohS
Place of Origin: Shenzhen, China
MOQ: 1 Unit
Price: 600
Payment Terms: T/T, L/C, Western Union
Supply Ability: 1000 Units per Month
Delivery Time: 1-3 work days
Packaging Details: 46*25*38cm, 4.5kg, Alluminum Box
Measuring Aperture: Φ4mm & 8mm
Repeatability: within ΔE*ab 0.03
Illuminating/Viewing Geometry: 8° / d
Measuring Range: L: 0 to 100
Illuminant Device: LED white light
Storage: 100 pcs standard samples; 10000 pcs test samples
Color Difference Formula: ΔE*ab; ΔL*ab; ΔE*C*H
Measuring Conditions: CIE 10° Standard Observer
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

CIE LAB Chroma Meter 3nh NR100 Color Testing Machine

Cheap Colorimeter CIE LAB Chroma Meter Color Measurement Instrument 3nh NR100 with PC Software


NR100 Colorimeter Technical Specifications


NR110NR10QCNR100
Illuminating/Viewing Geometry8/d(8°illumination angle/diffuse viewing); Conforms to CIE No.15,GB/T 3978.
IlluminationLED blue light excitationLED white light
Measuring ApertureΦ4mmΦ8mm flat aperture; Φ4mm tip aperture
DetectorSilicon photoelectric diode
LocatingIlluminating Locating/Cross Locating
Measurement End FaceLarge stable end-face and small concave-convex end-face
Color SpaceCIEL*a*b*C*h* CIEL*a*b* CIEXYZCIEL*a*b*CIE LAB
Color Difference FormulaΔE*ab ΔL*a*b* ΔE*C*h*ΔE*ab
Light SourceD65
Observer AngleCIE 10°
Errors Between Each Equipment≤0.80ΔE*ab (Average for 12 BCRA Series II color tiles)≤0.20ΔE*ab (Average for 12 BCRA Series II color tiles)≤ΔE*ab 0.4 (Average for 12 BCRA Series II color tiles)
Storage100pcs standards 20000pcs samples100pcs standards ,10000pcs samples
RepeatabilityStandard deviation within ΔE*ab 0.08 (Average of 30 measurements of standard white plate)Standard deviation within ΔE*ab 0.03 (Average of 30 measurements of standard white plate)
LanguageEnglish/Chinese
Weight500g
Dimension205×67×80 mm
Power sourceRechargeable lithium-ion battery 3.7V@3200mAh
Lamp Life3 years, more than 1.6 million measurements
InterfaceUSB
Charging Time8 hours--100% electricity
PC SoftwareCQCS3 Software/
Standard AccessoryPower Adapter, User Guide, PC software(download from 3nh.com), USB Cable, White Calibration Board, Wristbands, Φ4 flat aperture, Φ4 tip aperturePower Adapter, User Guide, PC software(download from 3nh.com), USB Cable, Wristbands, Φ4 flat aperture,Power Adapter, User Guide, Wristbands, Φ8mm flat aperture; Φ4mm tip aperture.
Printer (optional)Micro Printer, powder test box
Notes: The specifications are subject to change without notice.

Introduction

3nh R&D team concentrates on customer needs and develops a high precision & low cost portable colorimeter NR100. This new model NR100 features with two apertures Φ8mm flat aperture and Φ4mm tip aperture, suitable for most samples use. With color space CIE LAB, NR100 is good to check color difference for delta E, and widely used in plastic, electronic, paint, ink, textile, garment, printing and dyeing, food, medical, cosmetic, industries, scientific research institutes, schools and laboratories.

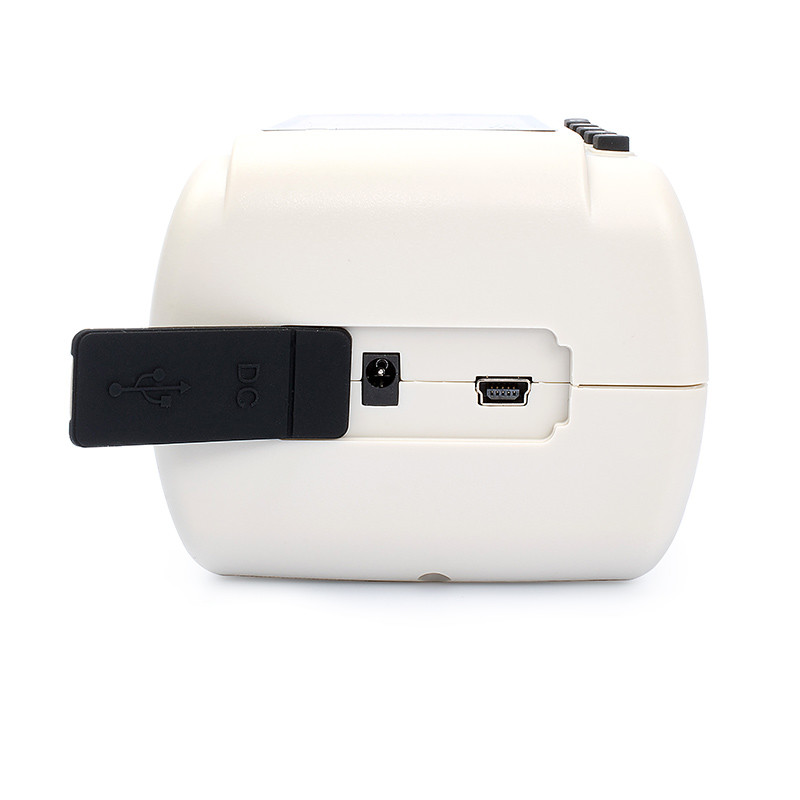

NR100 Precision Colorimeter

Product Advantages

a. Built-in white plate parameters. No need to calibrate each time which realize rapid measurement.

b. Double Apertures: Φ8mm flat aperture and Φ4mm tip aperture for switch, easy to measure concave sample in large plane.

c. Equipped with rechargeable built-in high-capacity Li-ion battery. No need to purchase battery repeatedly.

d. Handheld design: small and convenient; make the measurement easier.

e. Exquisite appearance: adopts traditional and fashionable aesthetic designs.

f. High cost performance: large output, good quality, cheap products.




Applications:

3nh colorimeter spectrophotometer is widely used in plastic, electronic, paint, ink, textile, garment, printing and dyeing, food, medical, cosmetic industries, scientific research institutes, schools and laboratories. It not only can help to perform color matching and color management studies, but also can control product quality management. 3nh colorimeter is equipped with high-end color management software that can connect to PC to achieve more extension functions.
Textile Garment FabricPVC FilmLeather
