8x8 Seamless UHD Matrix And Video Wall Processor Support EDID Management

Categories Seamless Matrix Switcher
Brand Name: VISSONIC
Model Number: VIS-UHD0808-VW
Certification: CE,FCC
Place of Origin: CHINA
MOQ: 1
Price: USD
Payment Terms: T/T, Western Union
Supply Ability: 10000
Delivery Time: 5-8 working days
Packaging Details: Carton
HDMI /DP /VGA Version: HDMI2.0,HDCP2.2
Bandwidth: 18Gbps
HDMI Amplitude: T.M.D.S +/- 0.4Vpp
Differential impedance: 100±15ohm
Ethernet: IE10.0+,HTML5
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

8x8 Seamless UHD Matrix And Video Wall Processor Support EDID Management

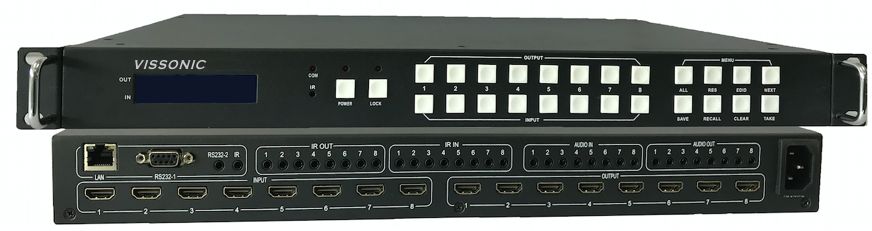

VIS-UHD0808-VW 8x8 Seamless UHD Matrix and Video Wall Processor


Overview

VIS-UHD0808-VW is a high-performance seamless UHD matrix switcher with 8x HDMI inputs and 8x HDMI outputs. Audio extract or insert can also be enabled on this device. IR matrix routing on this video matrix is followed with video routing. VIS-UHD0808-VW support one or more video wall with RS232 command

Feature
  1. Support HDMI 2.0/HDCP 2.2
  2. Support seamless switching
  3. Support video wall
  4. Support IR matrix
  5. Support HDMI audio extract
  6. Support external LR audio insert on HDMI stream
  7. Support EDID management
  8. HDMI video output resolution up to 3840x2160@60
  9. Front panel,RS232,TCP/IP (LAN 10M/100M), software & Web GUI control


Specification

Electrical parameter
InterfaceHDMI-A
HDMI /DP /VGA VersionHDMI2.0,HDCP2.2
Bandwidth18Gbps




Input
800x600@60Hz,1024x768@60Hz, 1280x768@60Hz,
1280x800@60Hz,1280x1024@60Hz,1360x768@60Hz,
1366x768@60Hz,1400x1050@60Hz,1440x900@60Hz,
1600x1200@60Hz,1680x1050@60Hz, 1920x1200@60Hz,480p,576p,720p,1920x1080i,
1920x1080p,3840x2160@24Hz/25Hz/30Hz/50Hz/60Hz,
4096x2160@24Hz/25Hz/30Hz/50Hz/60Hz.
Output3840x2160@60Hz, 3840x2160@50Hz,
3840x2160@30Hz, 3840x2160@25Hz,
1920x1200@60Hz,1920x1080@60Hz, 1920x1080@50Hz,1600x1200@60Hz, 1400x1050@60Hz,1366x768@60Hz,
1360x768@60Hz, 1280x1024@60Hz,
1280x768@60Hz, 1280x720@60Hz,
1280x720@50Hz, 1024x768@60Hz
HDMI AmplitudeT.M.D.S +/- 0.4Vpp
Differential impedance100±15ohm
RS232/Ethernet control
Baud rate and protocolBaud rate:9600, data bit:8,
stop bit:1,no parity checking
EthernetIE10.0+,HTML5
Power
Max Consumption100W, 110-240VAC
Matrix Mechanical dimensions
Size(mm)430(L)X300(W)X44 (H)
Weight5Kg
Operating temperature0 to 40°C
Storage temperature-20 to 70°C
Permissible humidity10%-50%
