| Categories | LGF Dome Array |
|---|---|
| Place of Origin: | China |
| Brand Name: | Guanghongda |
| Model Number: | GHD194006 |
| Certification: | ROHS compliance |
| MOQ: | 500-999 Pieces |
| Price: | $0.25 |
| Application: | Telecommunication Equipment |
| Keypad Button Material: | PET |
| Metal Dome Material: | SUS301 |
| Total Height: | 0.14~0.5mm |
| Metal dome Force: | 100~600gf , +/-30gf |
| click ratio: | >30% |
| Lifetime: | 300k~ 2kk hits |
| Salt sprary Chamber Testing Conditions: | -40 ~ +70 degrees |
| Reliable Routine Test: | 55+/-2 degrees , R.H. 95% , 48H |
| Size tolerance: | +/-0.1mm |
| OEM service: | acceptable |
| Selling Units: | Single item |
| Single package size : | 10X7X0.2 cm |
| Single gross weight: | 0.100 kg |
| Package Type: | 1) packed by PET bag ( Full package qty : 200 sheet / PET bag ) Carton package, inner 4 -corner wrap by bubble foam prevent from damage during the transporation |
What is LGF Dome Array and How does it work ?
LGF metal dome array , which full name is Light Guide Film , it is a new design . which used to replace LED in function , in
comparsion with LED , lighting Uniformity; When we add a LGF on
current normal double layer or EMI dome array, it becomes a LGF
dome array. It can achieve great result of light distribution.see
from the design , the light under keypad is coming from the LED on
PCB motherboard. We need to put about 8-10 pieces LED on each
board, but if the design changed to use LGF, then we can save
several LED, as well as SMT fee.
What is the LGF DESIGN PRINCIPLE & What is the Advantage ?
LGF, at least one surface out of front and rear surfaces of the
light guide film is formed with a pattern such that density
increases as distanced from a light source to allow light to be
uniformly supplied to the keypad, or is concentratively formed with
a pattern at a particular region of the light guide film to allow
the light to be concentratively supplied to a particular region of
the keypad.
PRODUCT PHOTOGRAP

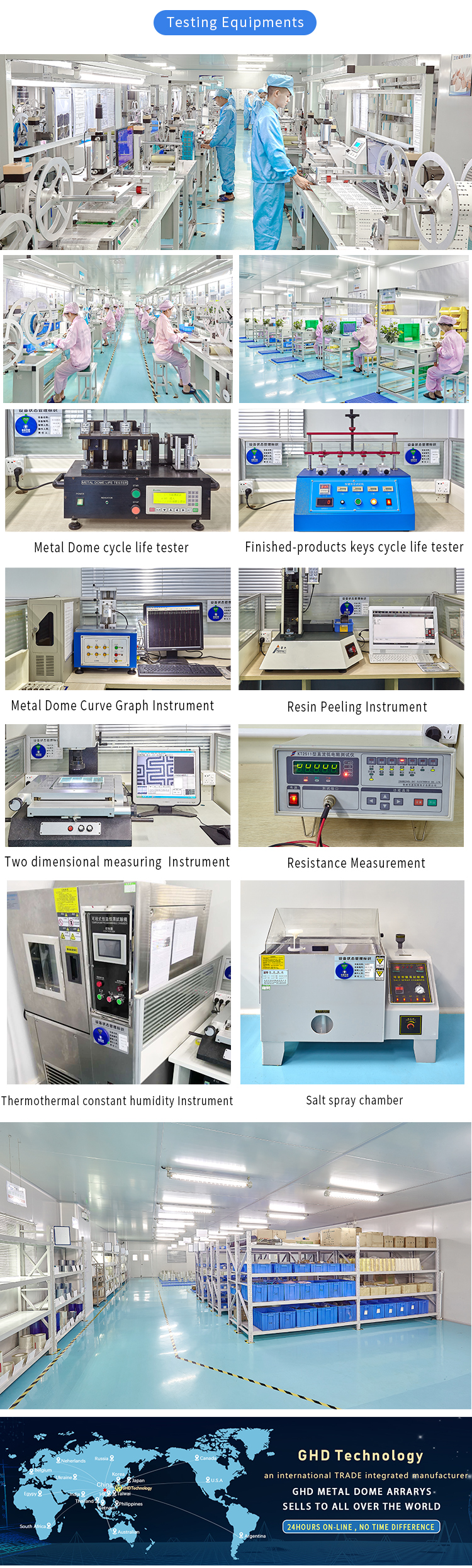

Major Technical Parameters & Advantages of Metal Dome Array | ||
Item | Description | TECHNICAL INDEX |

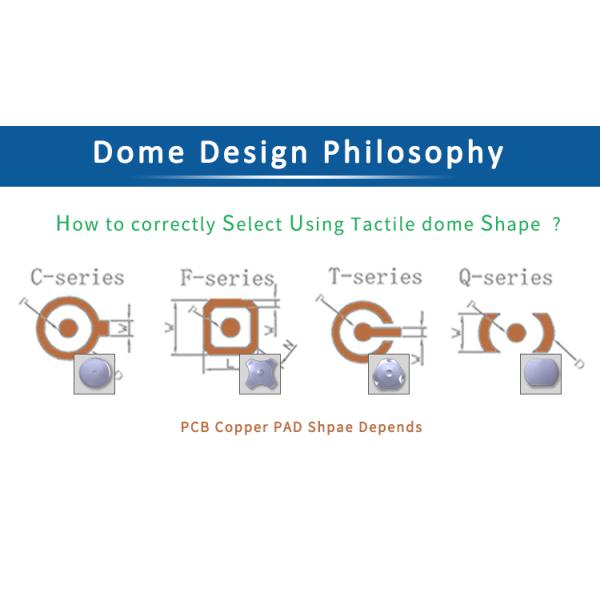

1 | LONG LIFE-TIME | Round ,Oval, four - legged, triangular, rectangular, three - point side, irregular |
Stainless Steel ,Nickel Plating ,Silver Plating & gold Plating | ||
Dimple Numbers : 0/1/3/4/5 dimple | ||
LIFE-TIME : 300 ~3000 Thousand Times | ||
In compare of initial value , The change rate <30% after 1M press-test | ||
2 | Click % | Force:100gf~450gf, Tolerance : ±20gf |
Normal Condition | ||
3 | Stroke | Customize in accordance with Customer ‘s requirement |
0.12~0.6mm ,Spec. various by different METAL DOME | ||
4 | Dimension Tolerance | Position dimension tolerance : + /- 0.1mm |
5 | Good Weatherproof Resistance | Under the conditions of 55±2℃,R.H.95% , Replacement 24H , and then resume 2H under the normal room temperature |
6 | Good Corrosion Resistance | High Temperature can bear : +70℃ Lower Temperature can bear : -40℃ |
7 | Tape Adhesive Test | 0.6↑(Unit:kgf/inch) |
8 | Stable Tape Shrinkage rate | MD(%):0.5 ↓ CD(%):0.3 ↓ |
(Unit:100℃*40mins) | ||
9 | Small Instantaneous Contact Resistance | (Nickel Plating ) <1Ω, ( Stainless Steel )<3Ω |
10 | Total Thickness of Base materials | 0.05mm,0.075mm,0.1mm,0.125mm,0.15mm; Normal Thickness Spec. |
11 | Light-Guide-film Uniformity | >75% |
Q1: Are you Trading company or manufacturer ?
A: We are a Professional Trading & Manufacturer Integrated .
Q2 : Can you offer OEM Service ?
A: Surely Okay , we have Seasoned OEM service experience .
Q3: what is the Lead time of sample ?
A : It takes 2-7working days depends .
Q4: How fast can i get the Quotation ?
A: 30mins ~ 24Hours depends .
Please do not hesitate to contact with us , if you have any inquires .
|
