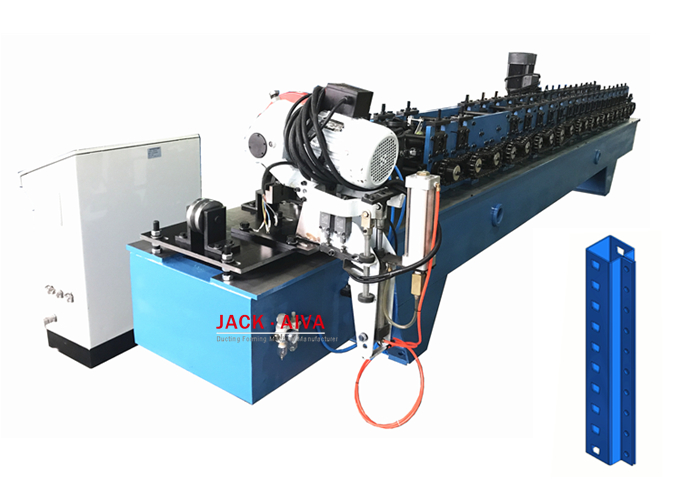

Storage Rack Roll Forming Machine For Shelving Upright Rack

Shelving Upright Pipe Roll Forming Line

Roll Forming Machine for the Manufacture of Storage Rack Post

The Shelf Storage Racks is a cost effective storage system providing direct access to all pallets. It provides high capacity storage, easy installation and adjustment, low costs.

With the production advantage of the shelving & storage racks roll forming machine, an extensive catalogue of shelving, heavy duty shelving, shelving and racking for warehouse and office are developed rapidly.

Now steel profiles for high storage units, supports and shelf bases for all types of successful warehousing systems are produced by rack cold roll forming machines mostly.

Technology Processing Flow- Shelving Upright Pipe Roll Forming Line

The whole line is consisted of de-coiler, leveler, Punching with holes punching mould and servo feeder, Main roll forming machine, cutting equipment, hydraulic system, control system, etc

De-coiling ---leveler-- holes punching—Roll forming—cut to length—Run out table

Main Parameters- Shelving Upright Pipe Roll Forming Line

- Suitable Raw material: GI steel sheet, Middle carbon steel sheet, σs≤260Mpa; 2 mm× L

- Punching machine with moulds 1 set, 63T

- Forming Roller Stations: 15 Stations

- Main shaft: 45﹟forge steel diameter roller: Ф65mm

- working speed: 12m/min (include punching and cutting, length in ≥6m)

- Total power: 7.5kw

- Cutting mode: Automatic control, cut to length

- Hydraulic station power 4kw

- Power: 380V/3ph/50Hz (or according to the buyer's requirement)

Storage Rack Pipe Post

The upright is the important Profile for shelving in storage racking industry. The following are the typical of heavy shelving upright for reference. Customized storage rack post profile are welcome!

Related profiles for shelving in storage racking industry

Boltless Shelving, upright post, upright post, step beam, Drawer Racking, Drive-in Racking, Push Back Racking, Live Racking, Mobile shelving, Cantilever Racking, Multi-tier Racking, Carton Flow Racking

It is our goal for us to provide high quality customized roll forming machines for various industry, such as agricultural, Appliances, Building Products, Curtain Rods, Tube and Pipe, Furniture & Lighting, Garage Doors, Highway & Roads, Home Furnishing, HVAC, Pallet Racking & Shelving, Steel Framing Machines, Auto and Transportation, Ceiling & dry Wall system,and other relative roll formed product manufacturing machine for customers around the globe.

At Jack-aiva, we adhere to strict implementation of ISO standards in production and operation. We purchase superior materials and components from well-known branded companies. All incoming materials are inspected by highly trained professional personnel to ensure the reliability of our products from the very beginning. Our staff undergoes continual training to improve skills and raise awareness of quality. Furthermore, by establishing partnerships and technical support with specialized research institutions. We are able to guarantee the superiority of our products. Our quality inspection department conducts rigorous quality checks throughout the manufacturing process, all to ensure our machines are compliant with international standards. From the selection of our outsourced parts, through each stage of production, to the final product, SBJX works hard to make sure our machines are head and shoulders above the competition.

In order to provide high quality products at affordable prices, our SBJX strive to cut our costs in a variety of ways without compromising on quality. For example, through the use of effective management and efficient distribution of enterprise resources, we can reduce waste at very step of production. Advanced manufacturing equipment also helps improve our production efficiency, resulting in reduced costs. What’s more, our location affords us easy access to an abundance of raw materials, enabling us to acquire superior materials at low prices from local suppliers. Our manufacturer is in the booming economy in the Yangtze River Delta. This along with our easy access to many forms of transportation, greatly reduces our logistics costs and lowers customer’s shipping chargers. These factors enable us to offer our products at lower prices.

Our products have gained us a great number of customers throughout the world. If you are interested in our products, please contact with us via phone or email. The staff at SBJX is looking forward to working with you.
