Table SMD Assembly Machine , Desktop Pick And Place Machine A4 With 4 Head

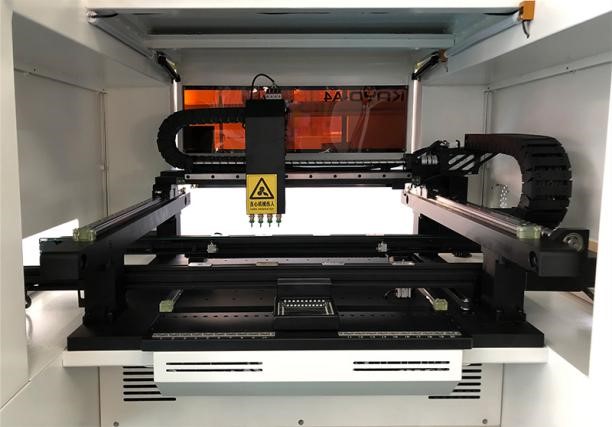

JAGUAR-A4 Desktop Automatic SMT Pick and Place Machine

JAGUAR-A4 pick and place machine is a Desktop machine, which configured 4 heads and 46 feeder stations, it's max speed can reach to 7000CPH, it's high precision pick and place machine

SPECIFICATION:

Product Advantages:

1.High Precision: Equipped with 6pcs of cameras: 1pc of Mark recognition camera, 1pc of 500 million pixels high precision recognition camera, and 4pcs of synchronous high-speed recognition cameras, could effectively mount 0402-5050 components, LED beads, diodes, transistors, SOP, 40mm*40mm range pin pitch ≥0.3mm chip QFP, BGA etc.

2.Fast Speed: the max. mounting speed: 7000CPH, average mounting speed: 5000CPH.

3.Full Automation: With rail guide, could be connected to other machines to achieve inline operation, thus greatly reduce labor costs, only need one person to complete the work.

4.Strong Stability: Panasonic Servo Motor and Drive, TBI high-precision grinding ball screw rod + heavy-duty linear guide, Japan Vacuum generator, JUKI high-precise nozzles, automatic feeding integrated system and high-configuration IPC - High precision, strong stability, promise 24-hour mounting stably.

Shenzhen Jaguar Automation Equipment Co., Ltd (referred to as "Jaguar") is a High-speed developing enterprise of High Precision Automatic lead-free Equipment such as reflow oven and wave soldering machine manufacturer, which specializes in lead free machine research and development.

As one of the well-known lead-free electronics equipment manufacturers in China, JAGUAR was founded in 2009 and headquartered in Shenzhen.

With full implementation of the PID process, reliability design concept and reliability testing throughout the entire product line, The company insists on market demand, established offices in various provinces and cities in the country.
