| Categories | Wire Bunching Machine |
|---|---|
| Brand Name: | HOOHA |
| Model Number: | 500 |
| Certification: | CE ISO |
| Place of Origin: | Guangdong |
| MOQ: | 1set |
| Price: | negotiable |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 20 sets/month |
| Delivery Time: | 35 working days |
| Packaging Details: | plastic or wooden packing |
| Diameter of Single Wire: | 0.08mm-0.41mm |
| Twisting Distance: | 4.22mm-39.64mm |
| Net Weight: | Approx2000kg |
| Power: | 5-7.5 HP controlled inverter |
| Technician: | Flexible passport to oversea |
| Electricity brand: | German brand |
| Certificate: | ISO,CE |
| Workers for the production line: | 1 |
| Color: | customized |
| Technical support: | yes |

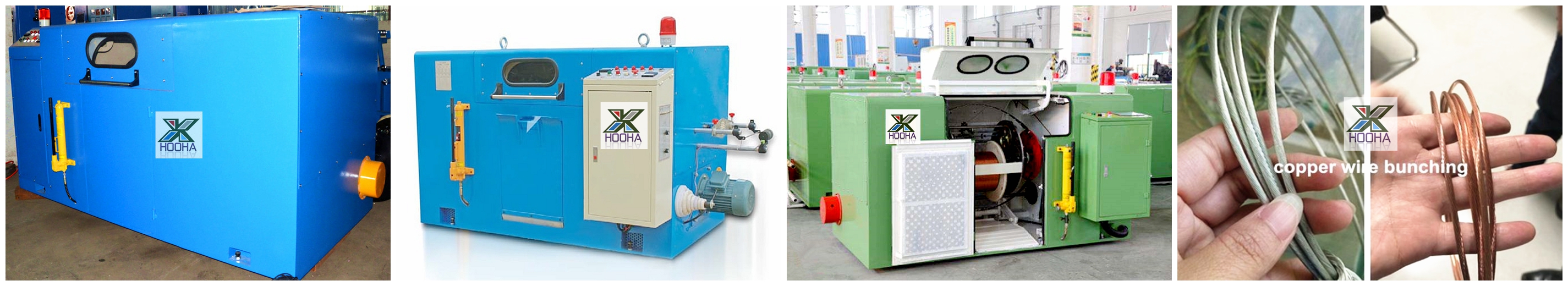

Copper CE twisting bunching machine customized design multiple features
1. Application
Application: Auto high speed twisting apply to copper wire twisting
for computer flat cable,earphone cord, electronic wire,power wire,
telephone cable, automotive cable, lane cable etc
2. Specifications
| Model | HH-500 |
| Power | 5-7.5 HP controlled inverter |
| Noise Level | Approx 75dB |
| Machine Dimension(mm) | (L)2690*(W)1060*(H)1230 |
| Net Weight | Approx2000kg |
| Twisting Section | 0.05mm²-2.5mm² |
| Diameter of Single Wire | 0.08mm-0.41mm |
| Twisting Distance | 4.22mm-39.64mm |
| Gross Weight | MAX 400kg |
| Max High Axis Rotation Speed | 3000RPM(6000t/min) |
| Twisting | Apply to over 7 threads silver plated wire, tin plated wire,enamelled wire, naked copper wire,CCS, CCA etc. Super fine conductor and cored wire twisting |
| Twisting Direction | To left or right |
| Flat Cable | Polish rod traverse unit, pitch & throw adjustable |
| Taking-up Tension Track | Tension adjustable, pulled wire no deformation |
| Machine Using Bearing | Main bearing made in Sweden, others in Japan |
3. Timely delivery
4. Company information
| Company name | HOOHA Co.,Ltd |
| Established | 2003 |
| Main products | Upcast and continuous casting machine,wire extrusion machine,wire stranding machine,wire drawing machine,test machine and so on. |
| Value added service | Include factory planning, cable raw material supply,cable equipment layout,cable technology export,technical support and operation training and cable testing laboratory construction. |
| Factory location | Humen Town,Dongguan City,Guangdong province. |
| Manufacturing Center | 4000 sqm |
| Showroom | More than 2000 sqm. |
5. Experenced team
| Team structure | Number | Experience |
| Pre-sale service team | 5 machine designer 5 wire and cable engineers | over 15 years |
| Dedicated service team | 10 dedicated service | over 8-10 years |
| After sales team | 10electricity engineers 8 mechanical Engineers 5 software engineer | over 10 years |
| Production self-inspection team | 5 production self-inspection engineers | over 15 years |
6. How is HOOHA's after-sales service?
1. Pre-sales training: in order to ensure the correct operation of the machine, we can provide customers with professional operation training if needed, including
1) correct operation method
2) correct maintenance method
3) solve simple problems of our products
2. During the period of service:Each machine is to be inspected internally and by the buyer himself before shipment. As for machine production, we have our strict product checkout process. We will mark the name of each device. Those devices must be signed to guarantee quality before being sent to our customer’s factory,which ensuring the good condition of our products.
3. After-sales service:Since the date of shipment, our company's free after-sales service during the warranty period is as follows
1)1 year for mechanical part
2)12-15 months for electrical part
3)Offer lifetime consultation on problems occurred
7. What are the Reasons to choose HOOHA?
We are a reckoned manufacturer and exporter of Cable, Wire, Plastic & Other Industrial Processing Equipment.
These products are developed using high grade raw material, sourced from reliable vendors of the market.
In addition to this, our adroit personnel keep a constant touch with the respectable customers to understand their demands accordingly.
These personnel maintain a decorum inside the infrastructure, by operating in harmony with each other. Mentioned below are the factors that have enabled us to maintain our unique stature in this domain:
There are countless reasons to choose from our range of machines across the country.
We are first and foremost choice of various clients for following
reasons:
(1)Wide distribution network
(2)Qualitative machinery
(3)Ethical business dealings
(4)Vast industrial experience
(5)Competent team
(6)Timely delivery
(7)Easy payment mode
8. Contact us
Add: 3 rd Floor, Building D, No.38 Houhu Road, Humen Town, Dongguan City, Guangdong Province,China
|
