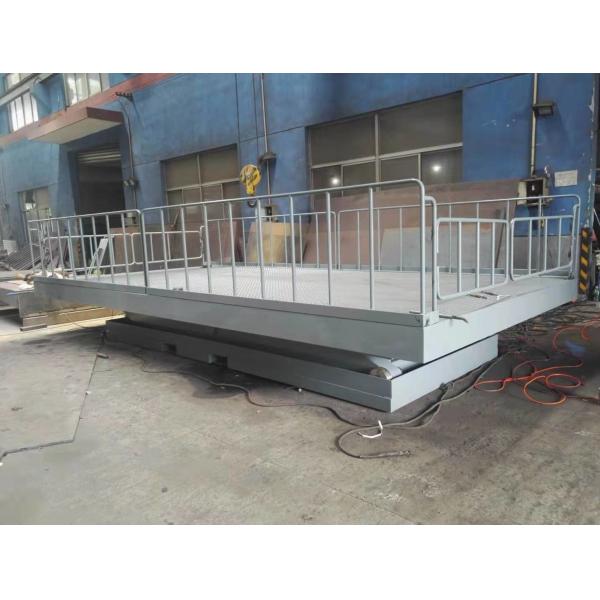

8Tons Heavy Duty Hydraulic Scissor Lift Table, Lift Table Equipment Size 2000*4000mm

8Tons Heavy Duty Hydraulic Scissor Lift Table, Lift Table Equipment Size 2000*4000mm

Heavy Duty Scissor Lift Description:

• King-Lift heavy duty scissor lifts are specially designed to meet each customer's requirements. Whether it is to replace an existing installation and save on costly conversions or to take the fullest possible advantage of the machine. Many of the details are features unique to these scissor lifts and enable to user to apply them to virtually any application. Instead of the high-grade components we use as standard, customers' own specifications can be taken into account.

Noted: Usually Heavy Duty Scissor Lift width is 2000mm, if over 2000mm width, it will need to spliced platform. And also can be custom as your requirements!

Main Features:

• 1. Reinforced skidproof diamond platform, which can prevent people and goods slipping down, more safety
• 2. Heavy duty & high strong construction
• 3. Anti-skid high-strength chequered platform, and lip for optional, need or not.
• 4. Full width one -piece or two lip for option (hinges pin type or sleeve type)
• 5. Heavy duty high pressure cylinders
• 6. First class hydraulic power unit, good seal capacity and long life
• 7. Safety protected 1, with Explosion Proof Lock Valve
• 8. Safety protected 2 for optional, with Safety toe guard to protect users
• 9. Extra requiremetns: safety bellow prevent the scissor lift from water, dust and people invading into the lift

Parameters:

• Electric system: Schneider contactor, CHINT electrical components ( Made In China)
• Hydraulic System: Hycman brand power pack(Made In China) , Oiltec (Import brand) or as requirements
• Scissor Arm Support: Hi-strength Manganese steel rectangle tube Q345 B
• Platform Surface : Antiskid checkered plate steel
• Main Support: 10# I beam
• Deck lip platform steel thickness:6mm/8mm/10mm checkered plate(If need lip)
• High-pressure Oil Pipe: Double wire-steel mesh in hydraulic rubber hose

Heavy Duty Scissor Lift Safety Precautions:

1. Emergency valves

2. Anti- Explosion safety valves between oil cylinder and oil tube.

3. Number of floor layers indicator

4. Door inter-locking device if indeed need.

5. Over height protect

6. Running indicator

7. Over load alarm

Optional Configuration:

• Hydraulic Power Pack: China power pack or imported power pack as your requirements

Applications:

1. Site: Work Shop, logistic center, warehouse loading bay, etc.

2. Hydraulic dock lift application: Lifting and Loading/unloading Cargo, lifting cargos as elevator, etc.

Heavy Duty Scissor Lift & sketch:
