2 Inch Pulse Jet Diaphragm Valve Repair Kit 2" Membrane Kits

2 Inch Pulse Jet Diaphragm Valve Repair Kit 2" Membrane Kits

Shell: The shell and cover of the valve are made of aluminum alloy die casting, with good appearance and high strength, which can ensure no air leakage. valve

The design of the pressure channel of the valve is reasonable, and the opening and closing surfaces of the valve are basically located in the air bag, which truly realizes the "submerged type", and the air can be

The air bag directly enters the injection pipe, which truly meets the requirements of low air pressure and large injection volume.

Solenoid valve: The solenoid valve operates the pulse valve by remote control. With plug-in coil and DIN wire socket, convenient for internal or external installation,

Waterproof and dustproof protection, in line with JB/T5916-91 standard.

The piston-type pulse valve overcomes the defect that the diaphragm is fragile, so that the valve body size can be less than 180mm, so that the bag filter design filter bag spacing is also

Correspondingly reduced, the structure is more compact. The piston switch element has the advantages of flexible opening and large opening, which can spray more filter bags to make the flow path open.

Low flow resistance, good dust removal effect.

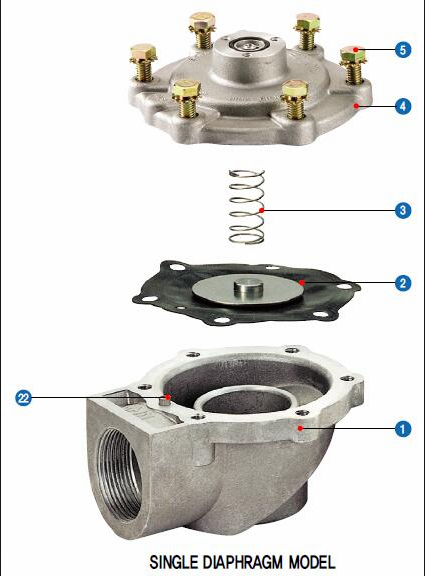

Show you the clear fittings of pulse valve

And indicate the single diaphragm sample

The Repair Kits

1. The pulse diaphragm valves are especially designed for dust collector service applications, combining high flow, long life and extremely fast opening and closing to produce reliable and economical operation.
2. The high quality diaphragms are reinforced and wear resistant to guarantee a long operating life, even under harsh conditions.
3. The design with integral compression fittings will facilitate installation because there is no need forthreaded piping.

4. The high flow, angle type bodies in combination with the special main diaphragm assemblies give the unique operating features required for pulse jet valves service applications.
5. Integral pilot operated valves satisfy all relevant EC directives.

The valve's common characteristics

1. Solenoid coil has one-touch terminal block with easy electrical wiring. For outdoor use, use aluminum die-casting material body.
2. A timer controller for quick opening and closing of valve and a waterproofed, up to 180'C heat resistance coil are used.
3. Used for dusting off the surface of the FILTER BAG.
4. Diaphragm is opened by the movement of solenoid coil, instantly(0.1~0.9sec) large amounts of compressed air is discharged at once.

If you want to know more,pls feel free to contact us

* Since the company's inception, we are dedicated to providing high quality products and service to our customers. With focusing on our customers' demands, at before production we discuss technical points according to applications with customers to reduce mistake and save cost for both sides. During production, we use high precision CNC machine, machining center to control dimensions and improve productivity. At beginning and mid of machining, our senior inspectors check quality regularly by recording data on documents as per ISO9001 management system. Before shipment, our staff make testing and complete inspection one piece by one piece to ensure the products without defect when reached our customer's hands.

* Ningbo Brando Hardware Co., Ltd will offer you best service with fast response, let's make the fluid control application more widely and smartly.
