17.3" Industrial AIO HMI Android Panel PC Bluetooth

Categories Android Panel PC
Brand Name: ITD/OEM
Model Number: ITD173PPCT5KE1
Certification: CE, FCC, RoHS
Place of Origin: China
MOQ: 1PCS
Price: TBA
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 10000PCS/Month
Delivery Time: 7-10 Business Days
Packaging Details: 1-5pcs/CTN, Safe, Firm, suitable for international shipping
OS: Android 9
Operating Temperature: -10~60℃
CPU: Dual Cortex-A72+Quad Cortex-A53
Native Resolution: 1920 x 1080
Aspect Ratio: 16:9
Bluetooth: Bluetooth 4.1
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

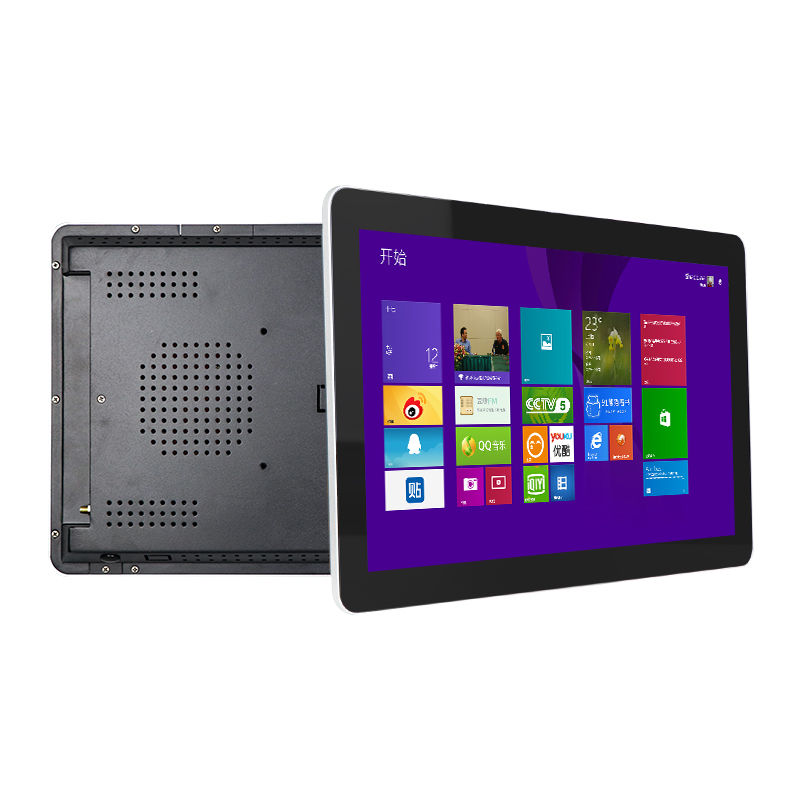

17.3" Industrial AIO HMI Android Panel PC Bluetooth

widescreen 17.3" true flat surface Android panel PC industrial AIO HMI


  • FEATURES of Android panel PC

    • Deliver rich media including: Multiple video and audio formats, RSS feeds and image slide shows;

    • Transfer schedules and contents to one or more displays;

    • Control, monitor and design screen layouts remotely by the admin software;

    • Support Multi-zone terminal display and flexible screen layout;

    • Local review of multi-zone display layout once the content is stored in the server PC;

    • Manage daily power on/off time for any display or group of displays;

    • Deliver high definition image content;

    • Content plays automatically upon set up of schedule;


PanelCell Type/Glass SurfaceTFT
Size/ Aspect Ratio17.3”/16:9
Active Area/ Pixel Pitch381.888(H) x 214.812(V)mm/0.1989 × 0.1989mm
Native Resolution/ Colors1920 x 1080/16.2M
Brightness/ Contrast300cd/㎡/700:1
Response Time25ms
Viewing Angle(Typical)89/89/89/89
Light SourceLED Backlight with 50000Hours’Lifetime

SPECIFICATION of industrial AIO HMI

System

CPU: Dual Cortex-A72+Quad Cortex-A53, 64-bit CPU, CPU frequency: 1.8GHz;

GPU: Mali-T860MP4 GPU, OpenGL ES1.1/2.0/3.0/3.1, OpenVG1.1, OpenCL, DX11

SDRAM: 4G

Flash: 32G

OS: Android 9 Bluetooth: Bluetooth 4.1 GPS optional

Video Decoder: 4K VP9 and 4K 10bits H265/H264 video decoders, up to 60fps

1080P other video decoders (VC-1, MPEG-1/2/4, VP8)

Media Format: Supports RMVB, FLV, MPEG1/2/4, AVI, WMV, MOV, MP4, TS,etc

Music Format: Support MP3/AAC/WAV/WMA/Dolby True HD/DTS-HD/LPCM

/H264/VP8/MVC

Photo Format: Supports JPG/BMP/GIF/TIFF/PNG

Input / Output

1 × HDMI; 2 × USB Max. 6× USB(2.0/3.0/OTG)

1 × TF Card Support 8~128GB;

1 × RJ45 LAN Ethernet 10/100/1000M (Realtek RTL8211E);

1 × DC 12V 2.0; 3G/4G Optional

Com Port optional

Operating Temperature-10~60℃
Storage Temperature-20~70℃
Relative Humidity10%~90%
Order Information17.3”Zero-Bezel Android Panel PC with Tempered Glass/ITD173PPCG1KE2

Product Display



Quality 17.3" Industrial AIO HMI Android Panel PC Bluetooth for sale
