| Categories | Transmission Line Equipment |
|---|---|
| Brand Name: | GALAXY |
| Model Number: | GL1x40 |
| Certification: | ISO/CE |
| Place of Origin: | JiangSu Province,China |
| MOQ: | 1set |
| Price: | Negotiable |
| Supply Ability: | 80 sets per month |
| Delivery Time: | 15-30days |
| Packaging Details: | Container |
| Product Name: | 1x40KN Transmission Line Stringing Equipment |
| Max intermittent tension: | 45KN |
| Continuous Tension Force: | 40KN |
| Bull-wheel Diameter: | 1300mm |
| Max conductor diameter: | 40mm |
| Groove number: | 5 |
| Max optical fiber cable diameter: | 21mm |
| Application: | Overhead Power Lines Construction |
| Company Info. |
| Galaxy power industry limited |
| Verified Supplier |
| View Contact Details |
| Product List |

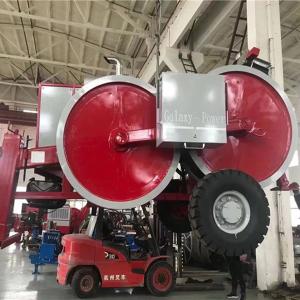

5 Groove Max intermittent 1x40KN Transmission Line Stringing Equipment
1x40KN Transmission Line Stringing Equipment Description:
Operated with 40kN tension machine, this machine is mainly applied in hilly and flat lands for tension stringing of 500kV conductors,
and because of the great convenience brought by the reverse traction function, it is the better choice for the construction
in small projects of transmission lines such as the modification works of rural and urban networks.
1x40KN Transmission Line Stringing Equipment Performance:
| Model | GL1x40 |
| Max. Tension Force (KN) | 45 |
| Continuous Tension Force (KN) | 40 |
| Max. Stringing Speed(km/h) | 5 |
| Max. Pullback force (KN) | 20 |
| Max. Pullback speed (km/h) | 2.5 |
| Diameter of wheel (mm) | Φ1300 |
| Number of grooves | 5 |
| Max. Conductor Diameter (mm) | Φ40 |
| Power of Diesel Engine | 77kw (103hp) |
| Electrical system: | 24V |
| Weight (kg) | 3430 |
| Dimension (mm) | 4000x2000x3000 |
1x40KN Transmission Line Stringing Equipment Characteristics:
| Model | Bull-wheel diameter | Max conductor diameter | Max optical fiber cable diameter | Groove width | Groove number | Total weight | Overall damension |
| mm | mm | mm | mm | kg | mm | ||
| GL1X7.5 | 1100 | 24 | 21 | 220 | 1 | 850 | 2300x1250x1620 |
| GL1X20 | 1300 | 40 | 21 | 55 | 5 | 1920 | 4080x1930x2300 |
| GL1X20II | 800 | 23 | 45 | 5 | 950 | 2400x1500x1650 | |
| GL1X20III | 800 | 22.5 | 55 | 5 | 1150 | 2500x1500x1700 | |
| GL1X30 | 1300 | 40 | 21 | 60 | 5 | 2064 | 3700x1950x2150 |
| GL1X40 | 1300 | 40 | 21 | 55 | 5 | 3430 | 4000x2000x2300 |
| GL1X50 | 1300/1500 | 55 | 21 | 68 | 6 | 2400 | 4000x1900x2300 |
| GL140IV | 1500 | 40 | 16 | 10000 | 5500x2280x2700 | ||
| GL2X35 | 1300 | 40 | 2x5 | 4500 | 4300x2250x2700 | ||
| GL2X40 | 1300/1500 | 40 | 2x5 | 6230 | 4300x2250x2700 | ||
| GL2X50 | 1300/1500 | 40 | 2x5 | 6000 | 4700x2300x2700 | ||
| GL2X70 | 1700 | 40 | 2x6 | 7500 | 4700x2300x2700 | ||
| GL2x70IV | 1500 | 40 | 2x8 | 10000 | 5500x2280x2700 | ||
| GL2X90 | 1900 | 50 | 2x6 | 7500 | 5400x2300x2700 | ||
| GL4x50 | 1500 | 40 | 4x5 | 13000 | 5900x2300x2700 |
1x40KN Transmission Line Stringing Equipment Main configuration:
| Engine | Cummins |
| Hydraulic pump | German Rexroth |
| Main motor | German Rexroth |
| Speed reducer | German Rexroth |
| Hydraulic meter | German |
| Operating handle | German Rexroth |
1x40KN Transmission Line Stringing Equipment Remarks:
There are three important steps for selection of hydraulic conductor tensioner:
First, it is important to know the diameter or model of biggest conductor in transmission line project,
because the weight of conductor can be used to calculate the tension force on conductor.
Second, how many conductors in one phase of transmission line? Is it single conductor, two conductors,
or four conductors transmission line?
Third, How is working condition of construction site? Is it Mountain area or flat lands? Are there big rivers
or forest in the stringing section? Are there any corner towers in one stringing section? How many towers
are there is one tension section?
1x40KN Transmission Line Equipment Application:
It is suitable for single conductor, earth wire, OPGW and ADSS optic fiber cable stringing in overhead transmission
line stringing operation.
Galaxy power industry limited was established in 2016, a high-tech enterprise in China, We are specializing in
R & D, manufacturing and sales of kinds of transmission line stringing equipment and tools such as hydraulic
puller, tensioner, underground cable conductor pulleys, anti-twisting galvanized steel rope as well as providing
accessories and technical service for customer. Galaxy has developed as one of the largest stringing
equipment and tools manufacturer in China which supply more than 200 varieties kinds of goods now.
Production Line:
We have five production lines.
Main configurations of our machine are from Germany and USA
Engine: American Cummins
Main pump: German Rexroth
Main motor: German Rexroth
Speed reducer: German Rexroth
Tail bracket hoisting motor: Amercian Eton
Hydraulic meter: German
Operating handle: German Rexroth
OEM&ODM:
We can do OEM/ODM. All of our products comply with international quality standards and are greatly
appreciated in a variety of different markets throughout the world.Our products sell in Australia,
Turkey, Mexico, Panama, Peru, Brazil, Egypt, Sudan, Kenya, Angola, Pakistan etc.
Our products are also very popular and best-selling in China.
|
