| Categories | Fiber Optic Patch Cord |
|---|---|
| Model Number: | LC 0.9mm Patch Cord |
| Certification: | CE Rohs SGS ISO |
| Place of Origin: | China |
| MOQ: | MOQ : 10PCS |
| Price: | Price : Negotiable |
| Payment Terms: | Payment Terms:T/T, L/C,paypal,Western Union |
| Supply Ability: | Supply Ability :150000pcs/month |
| Delivery Time: | Delivery Time :3 to 5 days for sample orders, 7 to 15days for bulk order |
| Packaging Details: | Packaging Details : 1pc pp bag |
| Connector: | LC/APC - FC/APC |
| Jacket Material: | PVC/other |
| Cable Configuration: | Single /DUPLEX |
| jacket diameter: | 0.9mm/2mm/3mm |
| Product name: | LC 0.9mm Patch Cord |
OEM 0.9mm Fc Fiber Optic Patch Cord LC / APC To FC / APC Round Wire Multi-Mode Jumper
Description:
The fiber optic patch cord is a length of optical cable with connectors fixed on two ends to realize the optical path active connection.
Pigtail is a length fiber cable with only one connector fixed on one end. If both sides of the connector or its end-face are
different, we call it hybrid patch cord. According to the transmission medium, it divides Single Mode

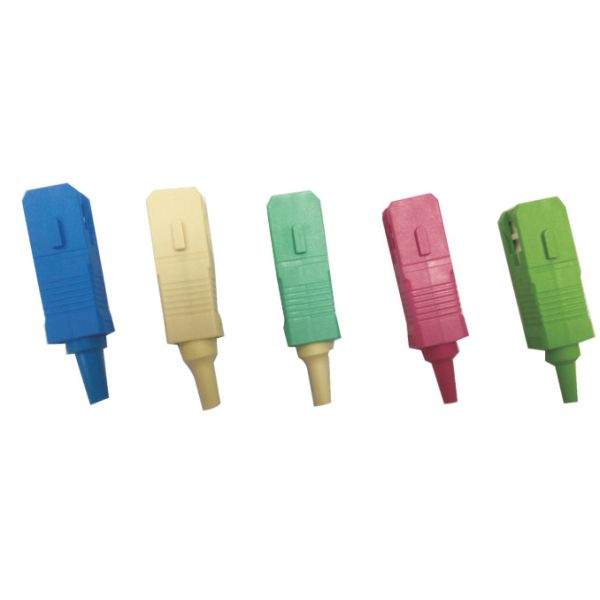

and Multi Mode; according to the connector structure type, it divides FC, SC, ST, MU, D4, E2000,
LC etc.; according to the polished ceramic end-face, it divides PC, UPC and APC.
Specification:
| Connector Type | Performance Level | |||||
| Standard | Elite | |||||
| connector | Mode | Endface | IL(db) | RL(db) | IL(db) | RL(db) |
| LC/SC/FC/ST | SM | PC | ≤0.2 | ≥50 | ≤0.15 | ≥50 |
| UPC | ≤0.2 | ≥55 | ≤0.15 | ≥55 | ||
| APC | ≤0.2 | ≥60 | ≤0.15 | ≥60 | ||
| MM | PC | ≤0.2 | ≥35 | ≤0.15 | ≥35 | |
| MPO/MTP | SM | APC | ≤0.7 | ≥60 | ≤0.35 | ≥60 |
| MM | PC | ≤0.5 | ≥20 | ≤0.35 | ≥20 | |
| MTRJ | SM | PC | ≤0.5 | ≥50 | / | / |
| MM | PC | ≤0.5 | ≥35 | / | / | |
Feature:
1.Frequency bandwidth,large communication capacity.
2.Low insertion loss, low return loss, long transmission distance.
3.No crosstalk interference, good confidentially.
4.Meet IEC, JIS, Bellcore international standard requirements.
|
