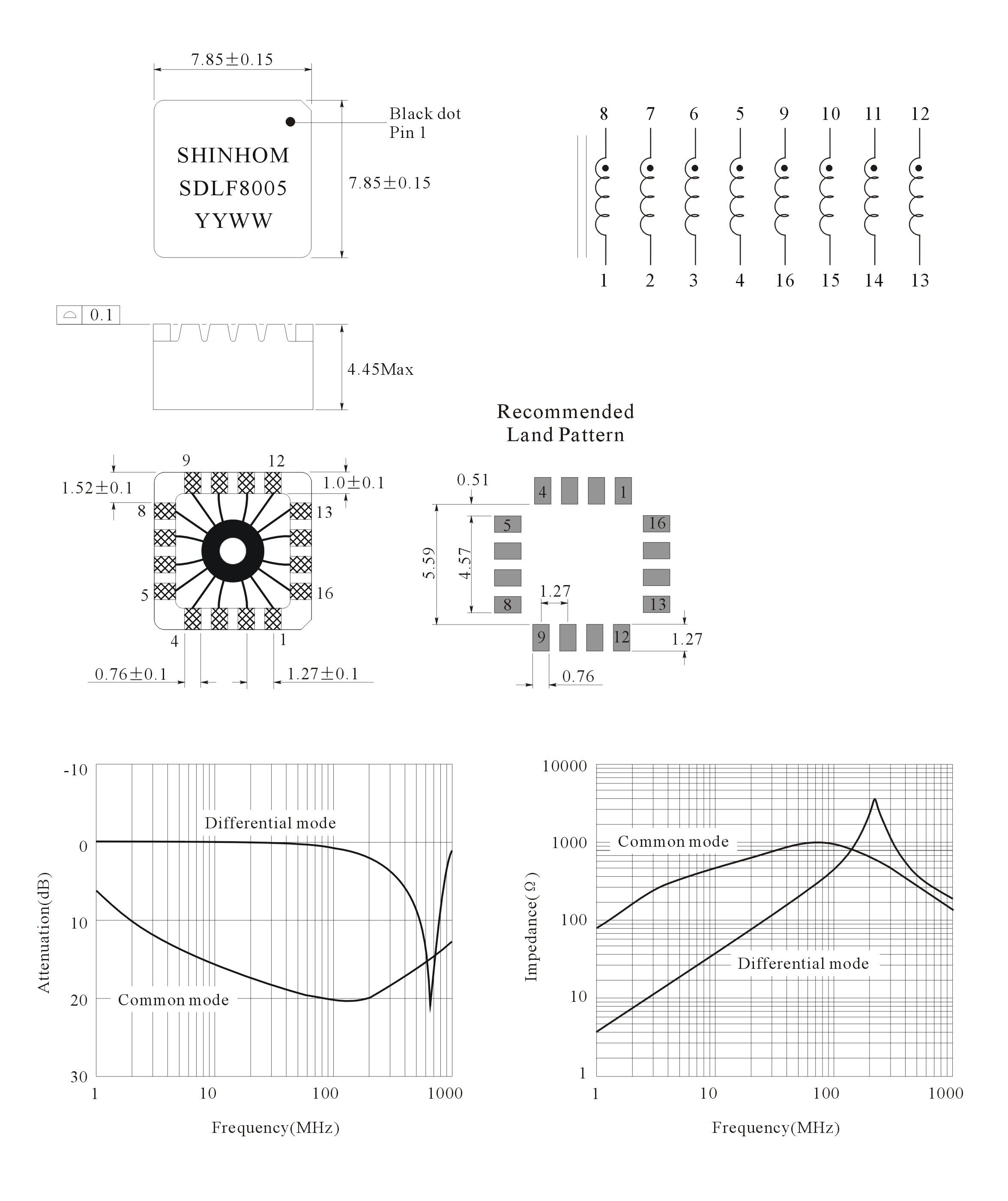

8 Windings SMD Data Line EMI Filter Common Mode Choke

Common mode inductor , SMD choke coil, 8 windings SMD Data Line EMI Filter with Ceramic case

FEATURES:​

1. Inductance: 5.0uH Min@1.0MHz,0.1V
2. RDC: 200mΩ Max
3. Rated current: 500mA Max
4. Operating temperature: -40℃ to +85℃
5. Storage temperature: -40℃ to +85℃
6. Excellent electrical isolation (300 Vrms)
7. Terminations RoHS compliant tin-silver-copper over silver-platinum.
8. Available in 8-line versions
9. Exceptional common mode noise attenuation from 15 MHz to 300 MHz; passes signal line data below 300 MHz with minimal attenuation

PACKAGING:

1. Packaging: 1000PCS/13 ''Reel
2. Weight: 1.2Kg/Reel
