7m3/H 0.6Mpa 6.5kW Pneumatic Dry Shotcrete Machine

Categories Concrete Shotcrete Machine
Brand Name: KEMING
Model Number: KPZ-7A
Certification: CE,MA
Place of Origin: CHINA
MOQ: 1 Set
Price: Negotiation
Payment Terms: L/C, T/T
Supply Ability: 100 Set/Per Month
Delivery Time: 10~20 Work Day
Packaging Details: Export Wooden Case
Capacity: 6~7m3/h
Pressure: 0.6Mpa
Max aggregate: 20mm
Main power: 6.5kW
Horz. distance: 100m
Vert. distance: 40m
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

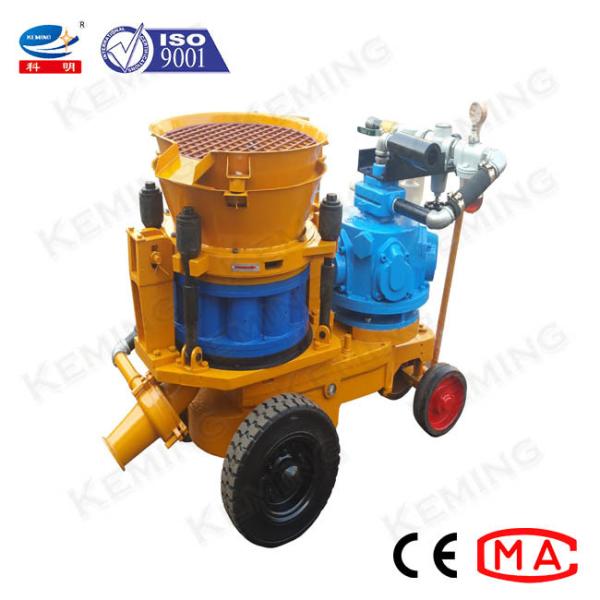

7m3/H 0.6Mpa 6.5kW Pneumatic Dry Shotcrete Machine

Factory Price Pneumatic Dry Shotcrete Machine With High Quality

Shotcrete Machine Features:

1. Pneumatic shotcrete machine works by the compressed air of the coal mine instead of power supply. It can be used to conduct local repair shotcreting in some remote roadway without power supply.
2. Compared to other shotcrete machine, pneumatic rotary shotcrete machine takes shorter time, reduces a lot of preparation and equipment failure and maintenance work,

saves the working time, extends the actual shotcreting time and improves working efficiency.

3. KPZ Series Dry Shotcrete Machine include Electric Shotcrete Machine (KPZ-3, KPZ-4, KPZ-5, KPZ-7, KPZ-9, KCPZ), Pneumatic Shotcrete Machine (KPZ-3A, KPZ-4A, KPZ-5A, KPZ-7A, KPZ-9A), Diesel Engine Shotcrete Machine (KPZ-3D, KPZ-4D, KPZ-5D, KPZ-7D, KPZ-9D), and Mining Shotcrete Machine (PC5I, PS6I-J).

4. KPZ-7A Pneumatic Shotcrete Machine are consisted of driving device, rotor assembly, air system, concrete spraying system, air motor etc.

5. KPZ-7A Pneumatic Shotcrete Machine have advanced technology, rational structure, convenient operation, stable performance and long service life.

Shotcrete Machine Application:

1. KPZ-7A Pneumatic Shotcrete Machine can be used for dry or half wet concrete spray construction.

2. KPZ-7A Pneumatic Shotcrete Machine are widely used in the tunnel, culvert, subway, slope reinforcement, hydroelectric works, underground works and high-methane laneway of coal mine etc.

Shotcrete Machine Parameters:

Model
KPZ-7A Pneumatic Shotcrete Machine
Capacity
5.5-6.5 m3/h
Max. conveying dist.
≤150 m
Water-cement ratio
≤0.35
Max. aggregate size
20 mm
Delivery hose ID.
φ51/57 mm
Working pressure
0.2-0.6 MPa
Air consumption
9 m3/min
Air consumption of air motor
8 m3/min
Dimensions(Length×width×height)
1520×850×1350 mm
Total weight
950 kg
