Tv Speaker Remote Usb Audio Controller With Auto Rca Volume Control

Categories	Dante Audio Controller
Brand Name:	VINCAN
Model Number:	WLP1212D032
Certification:	CE,FCC and RoHs
Place of Origin:	Mainland China
MOQ:	1 pcs
Price:	Negotiable
Payment Terms:	T/T, Western Union, MoneyGram
Supply Ability:	1000 pcs per week
Delivery Time:	2-3 days
Packaging Details:	Carton box and standard export package for Tv Speaker Remote Usb Audio Controller With Auto Rca Volume Control
Processor:	ADI SHARC 21489
Sampling rate/Digitalizing bit:	48K/24bit
Input Gain:	0/6/12/18/24/30/36/42/48 dBu
Phantom Power:	48V/10mA max
Frequency Response (20~20KHz):	±0.5dB
Product name:	Tv Speaker Remote Usb Audio Controller With Auto Rca Volume Control

Contact Now

Add to Cart

Company Info.

Shenzhen Winlink Technology Co., Limited

Verified Supplier

Haven't found right suppliers
Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
And this service is free of charge.
we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!

Submit Buying Request

Description:

Dante Controller provides essential device status information and powerful real-time network monitoring, including

device-level latency and clock stability stats, multicast bandwidth usage, and customized event logging, enabling you

to quickly identify and resolve any potential network issues. You can also quickly and easily backup, restore, move, and

reuse Dante network configurations using Presets, and edit Dante routing configurations offline.

Tv Speaker Remote Usb Audio Controller With Auto Rca Volume Control.

Specifications:

Item	Specifications
Max Input Level	18dBu
Max Output Level	18dBu
Default Output Level	0dBu
THD+N	<0.003%；1kHz@+4dBu <0.0035%；1kHz@+10dBm <0.0035%；20Hz～20kHz@+4dBu
Frequency Response	20Hz-20kHz, +/-0.2dB
In To Out dynamic range	110dB (Unrecorded right)
S/N	-110dB (Unrecorded right)
ADC Dynamic Range	CS5361 114dB
DAC Dynamic Range	CS4382A 114dB
DSP	400Mhzfloating - point SHARC ADSP-21488
Sampling Frequency	48K
QE	24Bit
Storage	32
Control Mode	100M Ethernet
Language	English
Noise Gate	Yes
Feedback	Yes
Signal Generator	Yes
Pressure Limiter	Independent 12 channel
Delay	Output 1-4 218ms Output 5-8 148ms
PEQ Low Shelf High Shelf	Independent 16-band
High Pass/Low Pass Bessel Butterworth Link-Riley	Independent 12 channel -6dB/oct -12dB/oct -18dB/oct -24dB/oct -36dB/oct -48dB/oct
Product name	Tv Speaker Remote Usb Audio Controller With Auto Rca Volume Control

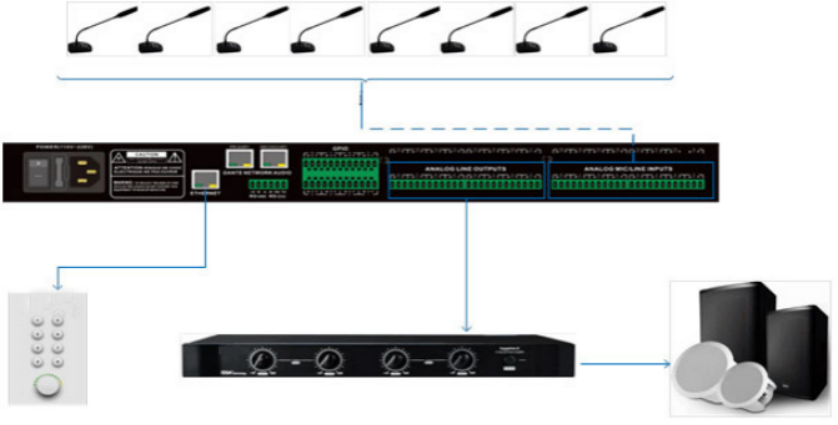

Typical System Application:

Dante Application: Dante network breaks through space limitations, and has a wide range of application scenarios.

It can connect all devices that support Dante protocol to the same local area network. By cascading 2 DSPs,

it supports the access of up to 32 analog microphones and 32 Dante microphones. Each processor will

conduct first-level auto mixing on its own microphones, and the second-level auto mixing is then made

on the mixed signal via the auto mixer of main processor so that more microphones can be connected

to build a larger auto mixing matrix. The two-level auto mixing working mode can satisfy general application scenarios.

Tv Speaker Remote Usb Audio Controller With Auto Rca Volume Control.
