8 Input And 8 Output HDMI Video Matrix Switcher Support Web Control And RS-232 ,Ethernet Control

Categories	Video Matrix Switcher
Brand Name:	VINCAN
Model Number:	WL-HDVM
Certification:	CE,FCC and RoHs
Place of Origin:	Mainland China
MOQ:	1 pcs
Price:	Negotiable
Payment Terms:	T/T, L/C, Western Union, MoneyGram
Supply Ability:	100 pcs per week
Delivery Time:	2-3 days
Packaging Details:	Carton box and standard export package for 8 Input And 8 Output HDMI Video Matrix Switcher Support Web Control And RS-232 ,Ethernet Control
Relative humidity::	10%～90%
Working temperature::	0℃～+50℃
Color:	Black
Casing materail:	Metal
Warranty time:	1 year
Wall mounted:	Support
Product name:	8 Input And 8 Output HDMI Video Matrix Switcher Support Web Control And RS-232 ,Ethernet Control

Contact Now

Add to Cart

Company Info.

Shenzhen Winlink Technology Co., Limited

Verified Supplier

Haven't found right suppliers
Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
And this service is free of charge.
we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!

Submit Buying Request

1.Description:

Modular HDMI matrix switchers that allow them to be an all-in-one solution for a variety of different projects.

They can be used in Restaurants & Sport Bars. Because they are Modular HDMI Matrix Switchers they allows

any input to be routed to any output; or the same input to be routed to all outputs, or any combination.

2. Features

Switching of up to 8 HDMI sources to 8 displays depending upon the chassis you choose.
8 Presets to save often used configurations.
HDCP and HDMI backwards compatible.
LCD front panel for status.
Supports a bandwidth of up to 10.2 Gbps.
Built-in HDCP internal management.
8 Input And 8 Output HDMI Video Matrix Switcher Support Web Control And RS-232 ,Ethernet Control.

3. Specification

I/O card board:	4 - HDMI ports/card
Input Connector:	HDMI A female; T.M.D.S. 2.9V/3.3V, 75 ohms
Video Output:	HDMI A female; T.M.D.S. 2.9V/3.3V; 75 ohms
Gain:	0 dB
Resolution:	Up to 1080p 4:4:4
HDMI Standard:	HDCP 1.4 - supports CEC, EDID and DDC and compliant with HDCP
Control Options:	Buttons, IR remote & RS232 (9-pin female D connector)
Worldwide Power Supply:	100VAC ~ 240VAC, 50/60Hz; 50W
Temperature:	-10 ~ 50 degrees C
Working Humidity:	10 ~ 90 degrees
Regulation:	CE, FCC and CCC
Product name	8 Input And 8 Output HDMI Video Matrix Switcher Support Web Control And RS-232 ,Ethernet Control

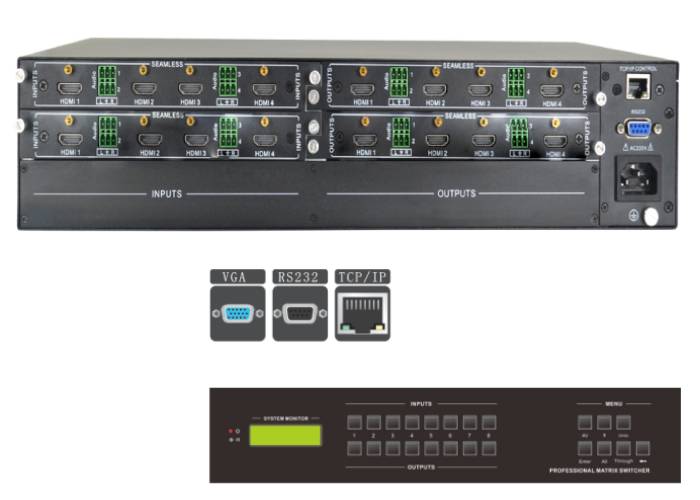

4. Products' picture:
