VFD500 Flexible VFD with Reverse and Forward Switching and Built-in PLC Programming

Name: VFD500 Flexible VFD with Reverse and Forward Switching and Builtin PLC Programming
Brand: VEIKONG
Price: 1 USD

VFD500 Flexible VFD with Reverse and Forward Switching and Built-in PLC Programming

Categories	VFD Variable Frequency Drive
Brand Name:	VEIKONG
Model Number:	VFD500
Certification:	CE, ROHS
Place of Origin:	CHINA
MOQ:	1
Price:	Please contact quotation
Payment Terms:	T/T, Western Union, L/C
Supply Ability:	1000 units per week
Delivery Time:	depends on quantities
Packaging Details:	＜45kw inverter be used carton package, ≥45kw be used wood case package
Power:	0.75kw-710kw
Frequency:	0-2000HZ
Control mode:	V/f control, Vector control
Type:	AC frequency inverter
Warranty:	18 Months
Display:	LED,LCD
Brand:	VEIKONG
OEM:	Supported
Motor control mode:	Speed control and torque control
Original:	China
MOQ:	Negotiable

Contact Now

Add to Cart

Company Info.

Shenzhen Veikong Electric Co., Ltd.

Verified Supplier

Haven't found right suppliers
Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
And this service is free of charge.
we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!

Submit Buying Request

380V Frequency Drive Electric Power Inverter With Sensorless Current Vector

VEIKONG hot selling VFD

VFD500M is high performance vector control mini vfd

VFD500 is high performacne general vfd

VFD550 is high perfromance special vfd with positional control.

VFD530 is high performance special vfd with lifting function, support 2 PID, support Synchronous and asynchronous motors

VFD500-PV is solar pump inverter.

VFD510 is IP65 invert

VFD500 features and technical data sheet:

1,With inside EMC C3 filter and building-block design for IO extension card and different kinds of PG card

2,Top performance in our industry which represent in torque in less than 1hz 0.5hz 0.25hz 0.1hz and 0hz

it can compare with any domestic chinese brand for output torque.

3,Smooth running and stability, support optional LCD keypad and dual display keypad. support PC tools.

4,Support modbus485, canopen, profinet communciation.

5,Low noise on motor and fast response for 0.1S acceleration and deceleration without dead zone

6,Reverse and forward free switching

7,Sleeping function and energy saving function as well as in built PLC programming

8,Tension control and torque mode control

9,Support two group motor parameters which can realize two motor switching control

VFD500 parameter distribution list

Classification	Parameter group	Page
Common parameters	00:Basic function	Page 30
	01:Frequency source selection	Page 32
	02:Start and stop	Page 37
	03:Ramp and S curve	Page 39
	04: Analog and pulse input	Page 41
	05:Analog and pulse output	Page 45
	06: Multi-function Digital input (DI)	Page 46
	07: Multi-function Digital output(DO)	Page 49
	08:Digital Output setting	Page 51
Motor control	10:Encoder type	Page 53
	11:Motor1 parmeter	Page 54
	12:Motor1 VFcontrol parameter	Page 56
	13:Motor1 Vector controlparameter	Page 58
	14:Torque control	Page 59
	16:Energy saving control	Page 61
Display and protection	20:User-defined parameters	Page 62
	21:Keypad and display	Page 63
	22:AC Drive configuration	Page 65
	23:Drive protection function setting	Page 67
	24:Motor protection parameter	Page 70
	25:Fault tracking parameter	Page 72
	26:Fault recording parameter	Page 72
	27:Monitoring parameter	Page 74
Communication	30:Modbus communication	Page 75
Application	40:Process PID Function	Page 77
	41:Sleep function	Page 81
	42:Simple PLC	Page 82
	43:Programmable delay unit	Page 84
	44:Comparator and logic unit/controller	Page 86
	45:Multifunction counter	Page 90
Motor 2	60:Motor2 basic parameter	Page 91
	61:Motor2 parameter	Page 91
	62:Motor2 VF control parameter	Page 92
	63:Motor2 vector control parameter	Page 92

Replace famous brands vfd in general application.

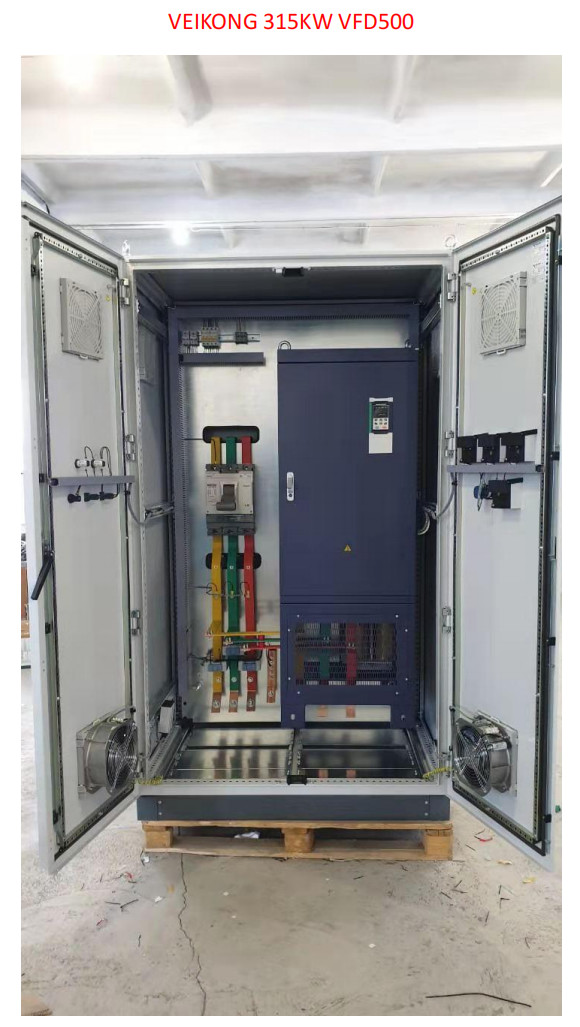

VEIKONG big power VFD250KW VFD355KW project
