Intelligent Led Pine Nuts Color Sorter linear CCD image sensor

Categories Nuts Color Sorter
Brand Name: WENYAO
Model Number: WYCS4-256
Certification: CE & ISO9001
Place of Origin: China
MOQ: 1 PCS
Price: Negotiable Price
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 100PCS Per Month
Delivery Time: 15 to 20 working days
Packaging Details: Plywood Box package Packing size(L*W*H):2.15*1.72*2.05M
Function: ccd color sorter
Sorting accuracy(%): 99.99%
Warranty: 2 Years warranty
Condition: New color sorting
Application: CCD Color Sorter
Color: White ,blue ,green ,yellow can be customized
Rejection Rate: 30:1
Voltage: 220V 50HZ, 220V 50HZ
Whole Power: 2.3KW
After-sales service provided: Engineers available to service machinery overseas,Field installation,commissioning and training,Overseas service center available
Air Pressure: 0.6-0.8
Camera: Toshiba
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Intelligent Led Pine Nuts Color Sorter linear CCD image sensor

Intelligent Led Pine Nuts Color Sorter Machine Optical Color Sorter


Technical Parameters:

MODELWYCS4-256
Chutes/Channels4/256
Throughput(t/h)2-3t/h
Sorting Aaccuracy≥99.99%
Power2.3kw
Power Voltage180-240V/50Hz
Air Source Pressure0.6-0.8Mpa
Air Consumption<2.4M3/Min
Weight750kg
Diamension(L*W*H)1855*1540*1852mm

Technical Parameters of Color Sorter Machine


●Use 5400-pixel high-speed high resolution linear CCD image sensor and high-precision dedicated lens to receive images, which can distinguish the heterochromatic regions of 0.04mm2 accurately; Use the imported LED light source that features higher brightness, longer service life, more stable quality and better performance.
●The mechanical structure is designed for reliability and stability, introducing the cooling system to improve the service life and stability of the machine;
The electrical and optical design system is meant for simplicity and efficiency, the optimized system structure reduces the complexity of the machine, and improves the reliability of the machine.
●In view of the different rice, designs the corresponding optimum operating mode, a machine to achieve different rice color sorting.


Color sorter :


One of the primary uses of an optical color sorter is to find blemishes in products, and remove unsatisfactory items from the manufacturing process. These flaws may be merely superficial, or they might indicate that a product is defective or unsafe. In a factory that produces a specific size item, for example, a defect or size variation with one of the products could cause significant problems. An optical sorter can detect the defect, and remove the improperly sized part before it is released from the factory.


Advantage:

A: Free direct the installation and operation of the equipments and train operators for customer.
B: Safe and reliable, efficient and energy saving, easy operating.
C: In time with English operating instruction program.

D: Timely, professionally


Application of Color Sorter Machine :

Our multi-functional color sorter can be used to sort rice, wheat, peanuts, beans, nuts, tea, plastics, minerals, etc. The following pictures are the color sorting performance of rice, soybean,wheat, peanuts and almond.If you want to sort other materials, please Contact our customer service, they will send you the corresponding pictures and videos


Sorting Effect:


After sales services
1.Provide free training,consulting and technical support for users;
2.Provide personalized programs to the demands of customers;
3.Upgrade software for free for a life time;
4.Provide free warranty service for Two years(except the wearing spare parts);
5.Provide 7*24 hours consultation and urgent servicce for users.

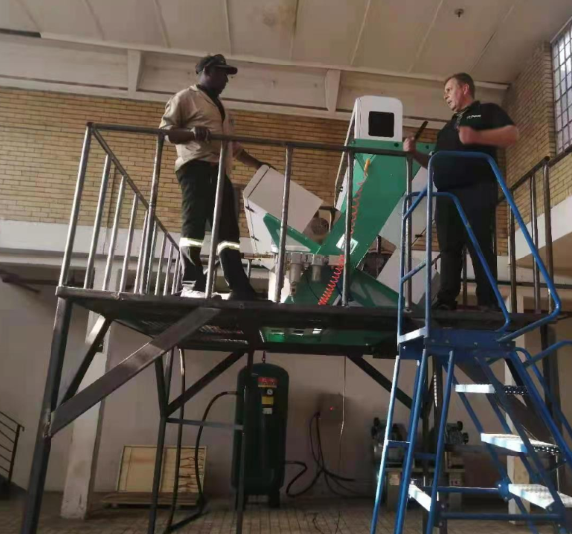

Customer's Site :
