Simple And Quick Site Installation Edge Computing Infrastructure
Introduction
Smart Micro Unit (SMU) data centre is a product that integrated
UPS, power distribution board, air conditioning system, fire
fighting equipment and power environment monitoring into a server
style cabinet system. The product is a one stop solution to edge
computing with increasing demand due to broad band network and 5G
mobile network development.
Product Features
Rapid deployment
- Integrated design, fully factory assembly and tested before
delivery
- Simple and quick site installation, a real plug and play solution
- SMU is designed to fully self-contained environment and dedicated
machine room is not required
- Customised to specific operation environment possible
- Modular design and allow future expansion
High energy efficient and reduce carbon footprint
- Integrated Cabinet and sealed airduct design, effective
separation of hot and cold air passages
- Line or rack type air conditioning unit installed close to server
equipment
- Shorten and separated air path for efficient cooling
Security and Reliable
- Fully sealed and dust proof design with effective noise barrier
- Support N+1, 2N design to meet different infrastructure tier
standards
- Emergency ventilation system in event of air conditioning
failure, to safeguard IT equipment for proper shutdown and short
terms operation
- Automatic fire extinguishing system to put out any fire in the
cabinet protecting expensive equipment and personnel safety

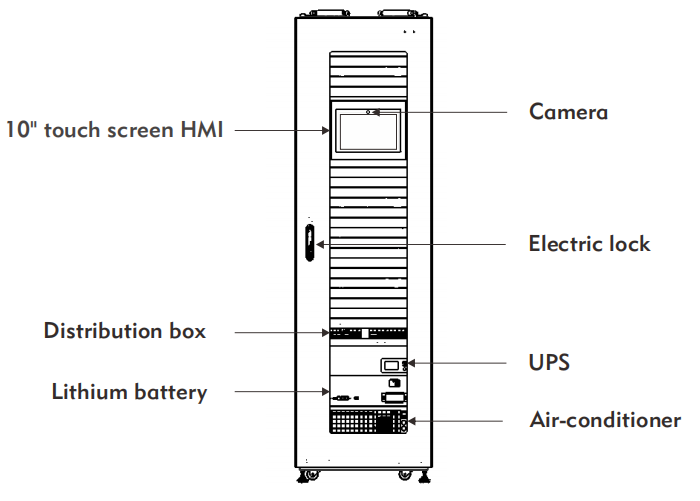

- 10" touch screen HMI with camera, timely capture, monitoring the
scene
Intelligent operation and maintenance
- Large local HMI (Human Machine Interface) with comprehensive
system and performance information
- Remote Web base monitoring and multi-sites centralized management
of real time and historical information with Mobile APPs in
development
- Alarm can be sent through email/SMS/phone as well as local audio
and visual indication, alarm analysis with fault handling
recommendations
Application Area
- Any server required in electricity substation, railway station,
financial outlets, government office, school, health care centre,
facility security, small and medium enterprises, retail store and
any operator business outlets
- Any indoor machine rooms
IP20 250U Edge Data Centres UPS Integrated 45 Degree Temperature
