LTE 300mbps Home 4g 3g Gsm Voice Call Volte Wireless Router With RJ11 Ports

Categories 4G Wireless Router
Certification: FCC, ce, RECH, GS, UL, CSA, RoHS, Sgs, SIG(BluetoothSIG), BIS(ISI)
Brand Name: iStartek
Place of Origin: Guangdong, China
Supply Ability: 9000000 Piece/Pieces per Month
Packaging Details: lte 300mbps home sim card slot 4g 3g gsm voice call volte wireless router with rj11 portsProduct size: 120mm x 150mm x 50mmPacking size: 217mm x 160mm x 60mmWeight: 170gPacking weight: 410g
MOQ: 1 Pieces
Price: $1-$19.00
Model Number: WR11S
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Delivery Time: 1-7 workdays
Max. LAN Data Rate: 300Mbps
With Modem Function: No
Standards And Protocols: Wi-Fi 802.11b, Wi-Fi 802.11g, Wi-Fi 802.11n
Wi-Fi Supported Frequency: 2.4G
Supports WDS: No
Supports WPS: Yes
Wi-Fi Transmission Standard: 802.11n
Wired Transfer Rate: 150 Mbps
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

LTE 300mbps Home 4g 3g Gsm Voice Call Volte Wireless Router With RJ11 Ports

LTE 300mbps home sim card slot 4g 3g gsm voice call volte wireless router with rj11 ports

WR11S Advantages

4G Signal to WIFI Signal

4G Signal To Lan

2.4G, 300Mbps WI-FI Rate

Support 3G 4G LTE Network

Support VOLTE Function

Use ZX297520V3E Chip

Support WPS, VPN, Port Mapping

Support 32 MAX Terminates

Specification

1.1 Basic Specifications

ItemDescription
Dimensions120mm (H) x 150mm (W) x 50mm (D)
Power Supply

Input: Universal range 100V~240V AC

Output: 12V DC/1A

Power consumption<12W
MemoryRAM 512Mb / ROM 1GMb
Slicslic Le9641
USIM/SIM Slot

2FF SIM card

support SIM/USIM/UIM, standard 6 PIN SIM card interface,

support 3V SIM card and 1.8V SIM card; internal

LED Indicators

Power LED×1

WPS/WLAN LED×1

LAN LED×1

LTE Internet LED×1

Signal LED×3

WPS ButtonWPS Button×1
Reset ButtonTactile button. Long press over 10s to restore the factory settings
Ethernet PortRJ45×1, 10/100M auto-sensing, LAN/WAN
Voice PortRJ11×1
USB PortUSB 2.0×1
Antenna

4G/3G/2G:Internal Antenna OR External antenna(optional);

WIFI: Internal Antenna

ESDESD Protection circuit; Contact±4KV, Air±8KV
Operating Temperature-20℃ ~ 60℃
Storage Temperature-25℃ ~ 70℃
Operating Humidity5% ~ 95%

1.2 4G/3G/2G Technical Specifications

ItemDescription
Wireless Access TechnologyTD-LTE/FDD/WCDMA/TD-SCDMA/GSM/GPRS/EDGE/EGPRS
Bands(Max)

Four standard configurations(Optional):

WR11S-Xce(Asia):

LTE:B1/B3/B5/B8/B38/B39/B40/B41;WCDMA:B1/B8;TD-SCDMA:B34/B39

WR11S- P (Asia):

LTE:B1/B2/B3/B5/B7/B8/B28A/B28B/B38/B39/B40/B41;WCDMA:B1/B2/B5/B8;TD-SCDMA:B34/B39;GSM850/GSM900/GSM1800/GSM1900

WR11S-E (Europe & Africa):

LTE:B1/B2/B3/B5/B7/B8/B20/B28A/B34/B38/B39/B40/B41;WCDMA:B1/B2/B5/B8;TD-SCDMA:B34/B39;GSM850/GSM900/GSM1800/GSM1900

WR11S-A (Latin America):

LTE:B2/B3/B4/B5/B7/B8/B28A/B28B/B66;WCDMA:B2/B4/B5/B8;GSM850/GSM900/GSM1800/GSM1900

More bands can be customized.

Data Rate

LTE FDD:Max 150Mbps(DL)/ Max 50Mbps(UL);

LTE TDD:Max 130Mbps(DL)/ Min 35Mbps(UL);

WCDMA:Max 21Mbps(DL)/ Max 5.76Mbps(UL);

TD-SCDMA:Max 4.2Mbps(DL)/ Max 2.2Mbps(UL);

EDGE: Max 236.8kbps(DL)/ Max 118kbps(UL);

GPRS: Max 85.6kbps(DL)/ Max 85.6kbps(UL);

GSM: Max 9.6kbps (DL)/ Max 2.7kbps (UL);

LTE 300mbps home sim card slot 4g 3g gsm voice call volte wireless router with rj11 ports

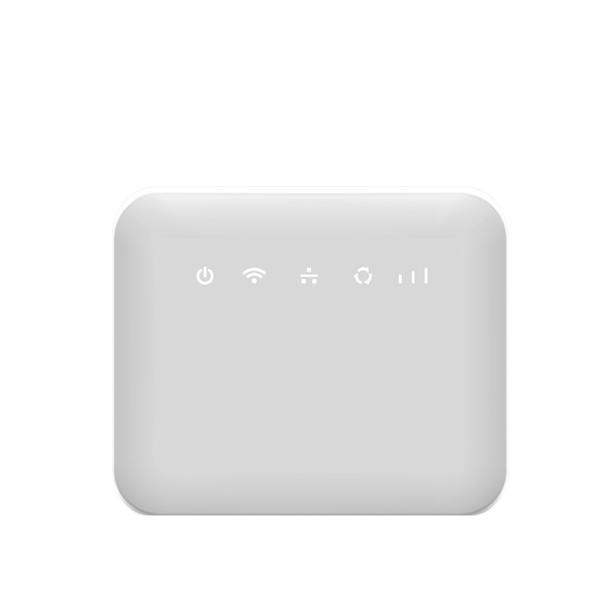

Products Pictures

LTE 300mbps home sim card slot 4g 3g gsm voice call volte wireless router with rj11 ports
