| Categories | UTP LAN CABLE |
|---|---|
| Brand Name: | JIANGHONG or OEM |
| Model Number: | UTP CAT5 CCA |
| Certification: | ISO,TLC |
| Place of Origin: | Sichuan, China |
| MOQ: | 30500 Meters |
| Price: | Can Be Negotiated |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 3050000M per month |
| Delivery Time: | 5-8Days |
| Packaging Details: | Carton+Fumigated Wooden Tray |
| Product name: | UTP CAT5 CCA LAN CABLE |
| Application: | Networking communication |
| Core: | 4 pairs |
| Conductor: | CCA |
| Insulation: | HDPE |
| Sheath Material: | LSZH or PVC |
| Length: | 305M |
| Package: | Carton+pallet |
UTP CAT5 CCA LAN CABLE
Description
Utp cat5 cca lan cablecomes with 4 Unshielded Twisted Pairs (UTP), if your installation calls for a type of cable that can withstand electrical interference and prevent signal loss.
Features
Low DC resistance, Low attenuation
Flexible cable,easy to cabling
Applications
network cabling
Performance
| Electrical Characteristics | ||||||||
| Frequency (MHz) | ATT(≤dB/100m) | NEXT(≥dB) | ELFEXT(≥dB) | |||||
| 1 | 2.04 | 62.3 | 60.0 | |||||
| 4 | 4.1 | 55.3 | 49.0 | |||||
| 10 | 6.5 | 47.3 | 41.0 | |||||
| 20 | 9.3 | 42.8 | 35.0 | |||||
| 31.25 | 11.7 | 39.9 | 31.1 | |||||
| 62.5 | 17.0 | 35.2 | 25.0 | |||||
| 100 | 22.0 | 32.3 | 21.0 | |||||
| Characteristic Impedance | 100±15Ω | D-C Resistance Unbalance | ≤2.5% | |||||
| Delay Skew | ≤40ns/100m | D-C Resistance | ≤11.5Ω/100m | |||||
| Phase Delay | ≤538ns/100m | Operating Temperature | -20℃~+60℃ | |||||

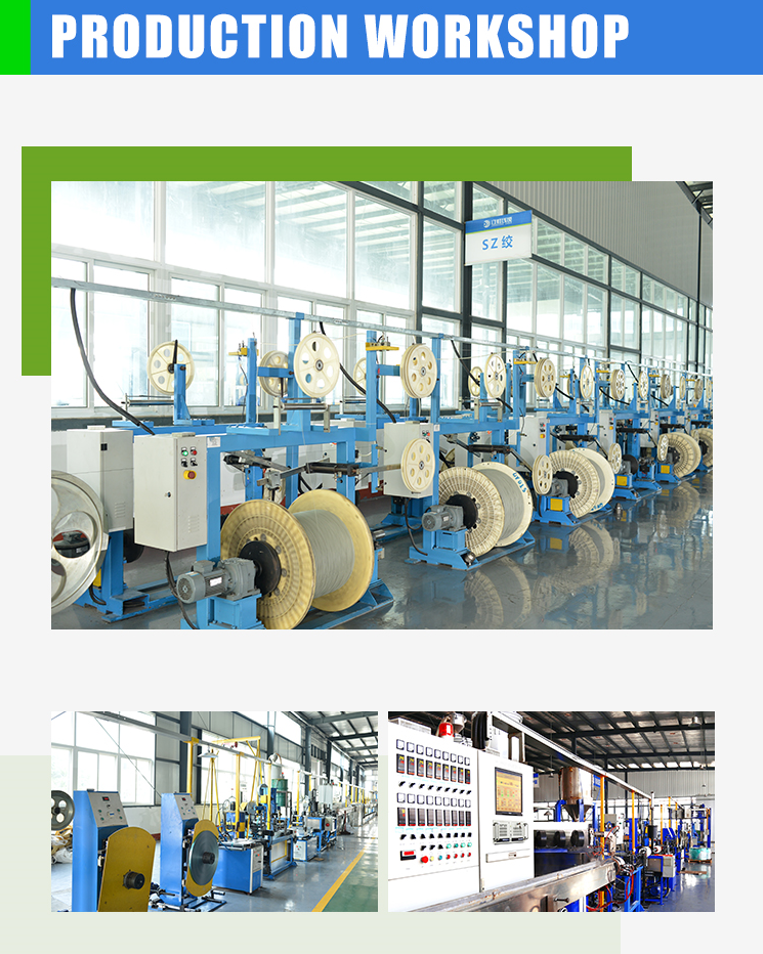

Company profile
SICHUAN JIANGHONG CABLE MANUFACTURE CO.,LTD,was founded in 1992,located in Jiangyou,Sichuan P.R.China.
BY 26 years development,company has become a modernized enterprise focus on development,manufacture of different cables for radio and TV network,Video monitoring network,FTTH communication and smart home network.Based on advanced production equipment,the annual capacity has reached up to 5 minllion km/year.
1. Experience:with more than 20 years production experience on
cable industry . certified supplier for broadcasting and
communication company in China domestic and overseas market .
2. Production line:supply different cables for radio and TV network
, Video monitoring network , FTTH communication ad smart home
network .
3. Certificate:Factory got ISO9001:2015 quality management
certificate. ISO14001:2015 environmental management certificate and
OHSAS18001:2007 occupational health and safety management system
certificate
4. High-quality material:With strict supplier control and
raw-material inspection .make sure the product quality stable and
reasonable cost .offer high-quality fiber from well-know fiber
company . offer self-inspection and 3rd-party test report.
5. Service:One stop service at customer’s convenience,offer
solution based on customer's request .
6. Price:Reasonable cost based on quality guaranteed product .
|
