Handheld 2d Barcode Scanner Support USB ,RS232 Interface For POS System

Categories POS Barcode Scanner
Brand Name: Luckydoor
Model Number: K-528
Certification: CE FCC Rohs
Place of Origin: Made in China
MOQ: 1pc
Payment Terms: Western Union, T/T, MoneyGram
Supply Ability: 50K-60Kpcs / month
Delivery Time: 1-3 working days
Packaging Details: Single standard packing box and carton
Scan type: CMOS
Scanner type: cabled
Barcodes: QR,2D,1D
Input: DC5V
Place of origin: Guangzhou
Current: 170mA
Materials: ABS+PC
Weight: 160g
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Handheld 2d Barcode Scanner Support USB ,RS232 Interface For POS System


Handheld 2d Barcode Scanner Support USB ,RS232 Interface For POS System


Product Description:


The snake shape general purpose 2D handheld barcode scanner. It is ideal for retail, warehouse, and commercial services institutions where point of sale, asset tracking, inventory, work-in-process, or shipping operations are conducted. Its omnidirectional reading and aiming system allow it to read linear or 2D barcodes off of a smart phone as well as from paper ,it is affordable POS barcode scanner and doesn't compromise the performance .


Product Features


S-shape design is more ergonomic

Support multiple languages

USB,RS232 interface supported

Excellent decode damaged ,stained ,fuzzy barcodes

Easy to set up ,plug and play


Product Specification:


Performance Parameters
Light Sources617nm LED Aimer, White LED
Supported Symbologies

1D: EAN, UPC, Code 39, Code 93, Code 128, UCC/EAN 128, Codabar,

Interleaved 2 of 5, ITF-6, ITF-14,ISBN, ISSN, MSI-Plessey, GS1 Databar,

GS1 Composite Code, Code 11, Industrial 25, Standard 25, Plessey, Matrix 2 of 5.

2D: QR Code, Data Matrix, PDF417, Micor PDF417, Aztec, Maxicode,

HanXin code.

Scan TypeImage CMOS
Resolution640*480
Scan MethodManual/Continuous/Automatic Induction Scanning
Scan angleYaw±60°, Rotation 360°, Pitch±60°
Precision≥5mil
Depth of scan field

EAN13 50-200MM (13mil);

QR 25-240MM(20mil);

PDF147 30-130MM(6.67mil).

Error RateLess than 1/5million
InterfaceUSB-HID, USB-COM, RS232
Physical Parameters
Dimensions66mm*65mm*200mm
Weight160g
MaterialABS+PC
Cable Length2m
Environmental Parameters
Operating Temperature-20℃~+50℃
Storage Temperature-40℃~+70℃
Relative Humidity5%~95% RH(Non-condensing)
Ambient lighting0~100000LUX

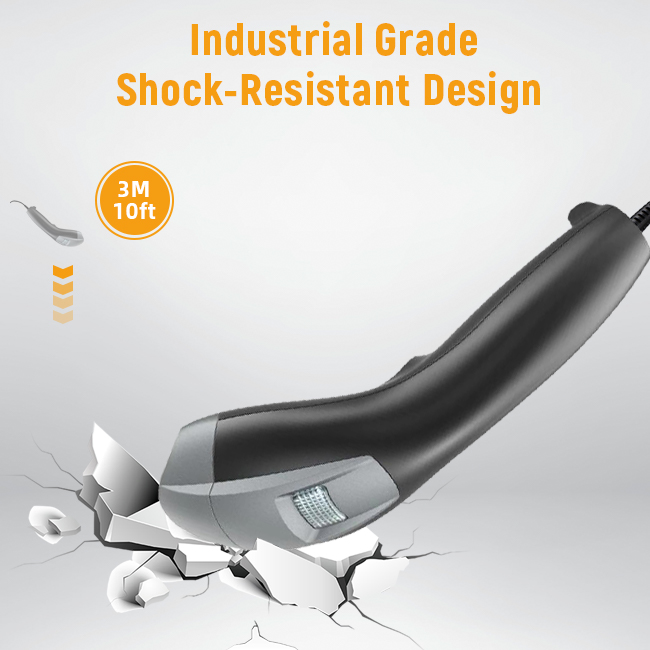

Drop/Shock ResistanceWithstands multiple times 3 meters drops to concrete
Electrical Parameters
VoltageDC5V±5%
Operating Current170mA
Standby CurrentUSB 25mA; RS232 2uA

Product Pictures:



Product Application:


Point of Sales

Retail and warehouse

Asset tracking

Ticketing and billing


FAQ:


1, What is a 2D barcode scanner?

A 2D (two-dimensional) barcode is a graphical image that stores information horizontally as one-dimensional barcodes do, as well as vertically. Those barcode scanner can decode 2D barcodes called 2d barcode scanner , usually use CMOS technology can read both barcodes from label and mobile screen


2, Does this handheld 2d barcode scanner read barcodes from tablets ?

Yes ,it is 2d barcode scanner , all 2d scanners can read barcodes from tablets ,smart phone screens


3, Can I trig the decoding by command from my software?

Yes , SDK service is available ,we can help that
