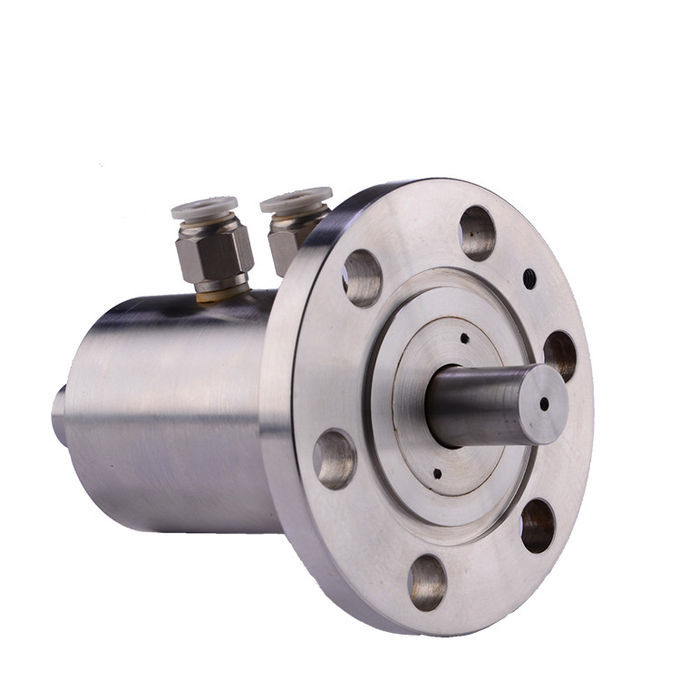

Solid Shaft Ferrofluidic Feedthrough Magnetic Fluid Seal

Solid Shaft Magnetic Fluid Seal Flange Mount FerroSeals Double Ended Bearing Type

A ferrofluid has the fluid properties of a liquid and the magnetic properties of a solid. The ferrofluids actually containtiny particles(around 10nm diameter) of a magnetic solid suspended in a liquid medium. To keep them small,magnetic and van der waals interactions must be overcome to prevent the particles from agglomerating. Thermal motion of magnetite particles smaller than 10nm in diameter is suffcient to prevent agglomeration due to magnetic interactions.

The principle of Magnetic sealing

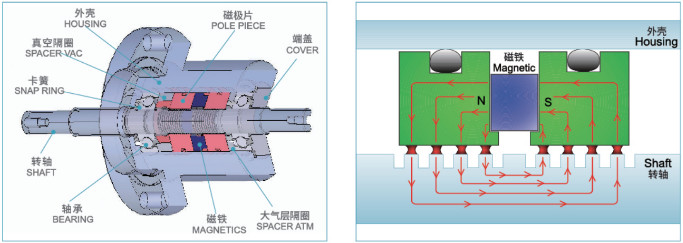

A ferrofluid style rotary seal vacuum feedthrough uses the response of a magnetic fluid with an applied magnetic field. Rotary seal components include a ferrofluid, permanent magnet, two pole pieces and a magnetically permeable shaft. The magnetic circuit employs stationary pole pieces and the rotating shaft to concentrate the magnetic flux in the radial gap under each pole piece. When the ferrofluid is applied to this radial gap, it takes the shape of a liquid O-ring and produces a hermetic vacuum seal. Ferrofluidic vacuum rotary seal feedthroughs use fabricated multiple rings or grooves with ferrofluid locating in stages formed by grooves machined into either the shaft or pole pieces. Typically each single stage or groove can sustain a pressure differential of 0.2 atmospheres (200 mbar). The total vacuum pressure achieved is the sum of all the differential pressures provided by the grooves.
