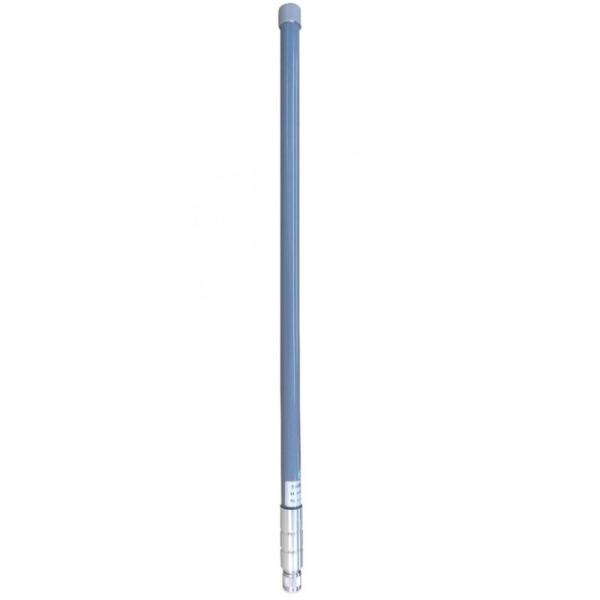

Outdoor Omni Directional WIFI Bluetooth Antenna 2.4GHz WLAN Fiberglass Antenna

Outdoor Omni Directional 2.4GHz WLAN Fiberglass Antenna

1. Product Name

Outdoor Omni Directional 2.4GHz WLAN Fiberglass Antenna

2. Description

--2.1 Applications

2.4G-2.5G

IEEE802.11b, 802.11g,802.11n Wireless LAN

Bluetooth

Public Wireless Hotspot

Wireless Video Systems

--2.2 Features

8dBi High Gain

Superior Performance

Light Weight

All Weather Operation

Installed for Vertical

N Male or N Female Connector

3. Introduction

Thisis a quite compact high performance omnidirectional WIFI antenna designed for 2.4GHz ISM band. It is ideally suited for multipoint and mobile applications where high gain and wide coverage is desired. Additional applications include IEEE 802.11b and 802.11g wireless LANs, Bluetooth , public wireless applications.

4. Specs

Electrical Properties

Mechanical Properties

5. Antenna Drawing

6. VSWR

7. Radiation Pattern
